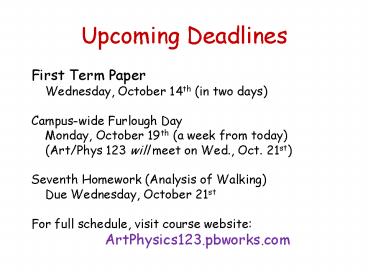

Upcoming Deadlines

1
Upcoming Deadlines

• First Term Paper
• Wednesday, October 14th (in two days)
• Campus-wide Furlough Day
• Monday, October 19th (a week from today)
• (Art/Phys 123 will meet on Wed., Oct. 21st)
• Seventh Homework (Analysis of Walking)
• Due Wednesday, October 21st
• For full schedule, visit course website
• ArtPhysics123.pbworks.com

2
Activating your Clicker

• Turn on your clicker.
• Enter the number or letter that I give you for
  joining this class. Hit Enter/Send key.
• Clicker should read PHY123SCI2
• Type in your student ID hit Enter/Send.
• Clicker is now ready to use.

Hit any key to wake the clicker from sleep mode.
3
Squash and Stretch(Part 1)
4
Gertie the Dinosaur (1914)
Although this early short Winsor McCay is not the
first animated film, it is one of the first
cartoons to feature a character with a distinct
personality.
Running time 12 minutes
5
The Adventures of Prince Achmed (1926)
The Adventures of Prince Achmed, by the German
animator Lotte Reiniger, is the oldest surviving
feature-length (at 65 minutes) animated film.
In this silent movie, Reiniger used silhouette
animation, which involves manipulating cutouts
(basically two-dimensional stop motion
animation).
6
Evolution of Motion Pictures
Movies advanced rapidly in the beginning of the
last century, adding sound and color.
Birth of a Nation (1915)
Gone with the Wind (1939)
As realism in movies increased, the stories and
the acting had to change as well.
7
Early Cartoons
Early animations also added sound and color but
remained restricted to short films.
Flowers and Trees (1931), the first cartoon in
full Technicolor.Running Time 8 minutes
Steamboat Willie (1928), the first cartoon with a
complete soundtrack.Running Time 7 minutes
8
Realism Barrier
Feature length animated films were not produced
because audiences demanded more realistic,
complete characters in such movies.
Feature-length
Appeal ?
Short
Would you sit through a 90 minute Betty Boop
cartoon?
Realism ?
9
Snow White
Disneys Snow White was the first full-length
feature film using traditional (cel) animation.
Snow White and the Seven Dwarfs (1937, 83 min.)
Snow White (1933, 7 min.)
10
Disneys Principles of Animation
From life studies, Disney animators discovered
that 1 principle that was key to adding realism
in character animation was Squash Stretch.
11
Basic Squash Stretch
Stretch usually indicates speed due to motion
blur.
Actual Shape
As Seen byHuman Eye
Squash indicates force, such as on impact.
Much more
12
Character Animation
Squash and stretch are easy to learn from a
bouncing ball but their importance is in how
squash and stretch appear in the motion of
characters.
From Preston Blairs, Cartoon Animation
13
Luxo Jr.s Squash Stretch
An object need not deform in order to squash and
stretch. For instance, a hinged object like Luxo
Jr. squashes by folding over on itself, and
stretches by extending out fully. John Lasseter
14
Water Balloon Drop
Water balloon is a good animation exercise
because it almost moves like a living creature.
Play
Play
Mai Vu
Ken Calvert
Play
Play
Slow-motion Drops
15
Stretching Dimensions
Stretch proportions depend on whether we want to
preserve equal areas or equal volumes.
Stretch in animationpreserves volume
81
67
Equal Areas
Equal Volumes
150
150
Sphere (3D)
Circle (2D)
0.67 x 1.50 1
0.81 x 0.81 x 1.50 1
16
Stretching Dimensions
Table below lists the proportions for stretching
with equal areas or equal volumes. Values are the
same for all object shapes.
Y
L 50 67 75 80 90 100 110 125 133 150 200
W 200 150 133 125 111 100 91 80 75 67 50
X,Y 140 122 115 112 105 100 95 89 87 82 71
Area and volume proportions similar
17
Incompressibility
Most solids and liquids are almost
incompressible it takes enormous force to change
their volume. Elastic materials may stretch
easily but their volume stays constant.
18
Youngs Modulus (Stiffness)
Youngs modulus indicates amount of force
required to compress or expand a material.
Material Youngs Modulus (GPa)
Rubber 0.01 to 0.1
Water 8
Wood 9 to 11
Concrete 30
Steel 200
Water is almost as incompressible as wood!
19
Class Demo Incompressibility of Water

• Place a brick on top of a syringe filled with
  air.
• Air compresses (a bit).
• Place a brick on top of a syringe filled with
  water.
• Water doesnt compress.

20
Stretch in Falling
The force of gravity does not stretch objects as
they fall. Slowing out occurs during falling but
all parts of a body slow out together.
Common gag in animation but its not realistic.
21
Freefall Weightlessness
Freefall is the state of weightlessness that
occurs during falling, even though gravity is
present.
22
NASAs Vomit Comet

• NASA has a special airplane for training
  astronauts in free-fall weightless conditions.
• The Vomit Comet nickname tells you its quite a
  wild roller-coaster ride.
• Zero G Corp. offers commercial flights (for 4000)

The plane flies between 20,000 and 30,000 feet,
same as commercial flights.
23
Flight of the Vomit Comet
Weightless Freefall
Near the apex, the planes path of action is
parabolic arc.
Power Climb
Pull out of Dive
Boeing 707 (modified)
24
Class Demo Falling Slinky

• Hold a Slinky and its weight stretches it out.
• Now drop it.
• What happens?
• In freefall its in a state of weightlessness so
  Slinky immediately contracts.

25
Pressure in Liquids

• Pressure in a liquid depends on depth.
• As with a stack of bricks, weight of whats above
  determines pressure.

Low
Medium
Low
Medium
High
High
26
Water Balloon at Rest

• Water pressure pushes on the rubber, stretching
  it into a flattened shape.

Low
Medium
Water Pressure
High
Tension of the rubber also affects the shape.
27
Class Demo Bed of Nails
Pressure depends on weight and on the area
supporting that weight.

• One may safely lay or sit on a bed of nails, as
  long as there are enough nails so that the
  pressure, measured as force per nail, is small.
• Weight of 150 pounds is distributed over 300
  nails. Force per nail is ½ lb. Need 5 lb per nail
  to pierce skin.

28
Class Demo Pressure Weight

• A can full of water has holes in the sides
  through which water comes out.
• What happens when you drop the can?
• The can is now in freefall and weightless. Water
  stops flowing as the can falls since the pressure
  was due to the waters weight.

29
Falling Water Balloon
Slides off and falls
Because free fall is a weightless state, the
water balloon will be roughly spherical as it
falls.
May have some initial vibrations depending on how
it is released.
Faucet drip
30
Ready, Set, Zoom (1955)
This clip has several examples of stretch.
Stretch in falling is not realistic.
Stretch due to the law of inertia (drag) does
occur.
Play
31
Stretch Animation
Can accentuate rapid motion blur by using extreme
stretch on single frames.
These are consecutive frames from Ready, Set,
Zoom.
32
The Dover Boys (1942)
Play
The Dover Boys is a classic cartoon directed by
Chuck Jones that has great examples of stretch
(also called smear) animation.
33
Momentum

• Momentum of an object is,
• (Momentum)
  (Mass) X (Velocity)
• Examples of objects with large momentums are
• Supertanker (large mass)
• Bullet (large velocity)

34
Momentum and Force

• To stop an object with a large momentum requires
  either
• Large force (stopping the object quickly).
• Small force applied for a long time.
• Notice that changing objects momentum depends on
  force and time interval.

35
Impulse

• Define impulse acting on an object as,
• (Impulse)
• (Force on object) X (Time interval)
• Objects have momentum.
• Impulse acts on an object.

36
Impulse Momentum

• Impulse is related to momentum by,
• (Change in momentum) (Impulse)
• or
• (Change in momentum)
• (Force) X (Time interval)

37
Demo Egg Throw

• Throw a raw egg as fast as possible at a bed
  sheet thats held loosely.

X
X
X
X
X (Hold here)
38
Egg Throw Analyzed

• Throw egg at a bed sheet it stops but doesnt
  break.
• Throw egg at the wall with same speed, it stops
  but breaks.
• In which case is the impulse on the egg the
  greatest?
• Hitting the bed sheet
• Hitting the wall
• Same in the two cases

39
Egg Throw Analyzed

• C) The impulse is the same in the two cases.
• The change in velocity is the same in the two
  cases so the change in momentum is the same.
• Since the impulse equals the change in momentum,
  the impulse is the same in the two cases.
• But the forces are not the same!

40
Egg Throw Analyzed

• Throw egg at sheet or wall with same speed.
• Impulse is the same in the two cases.
• Which case has
• Largest time of impact?
• Throw at the sheet.
• Largest force on the egg?
• Throw at the wall.

41
Automobile Safety

• Maximizing time of impact on the driver minimizes
  the force of impact.
• This principle used in design of

42
Demo Vampire Stake

• Place a heavy stake on my chest and strike with a
  hammer.
• Why am I not killed?

43
Demo Vampire Stake

• Safest when slow moving stake placed on a soft,
  fleshy spot on the chest.

(force) x (TIME)
Not safe if stake strikes hard skull
44
Ironman

• Ironman falls off the roof of a 10 story building
  and lands on the sidewalk.
• Even though he is an ordinary man, hes unhurt as
  long as his metal suit is undamaged and intact.
• This is physically realistic.
• True or False

45
Ironman

• False. The suit does not increase the time of
  impact so the force of impact is the same.

Metal cylinder
Putting a metal cylinder (or a coin) on my
forehead is no protection against hammer blows.
46
Next LectureSquash Stretch(Part 2)

• First Term Paper due onWednesday, October 14th
• (This week!)

Please return the clickers!
