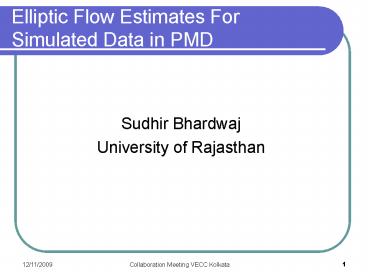

Elliptic Flow Estimates For Simulated Data in PMD

1
Elliptic Flow Estimates For Simulated Data in PMD

• Sudhir Bhardwaj
• University of Rajasthan

2

• Motivation
• Elliptic Flow
• Simulation
• Conclusion
• Future Plans

3
Motivation

• We want to study elliptic flow of photons in real
  data.
• For that we are doing simulations with nearly
  similar conditions which is present in the real
  data.

4
Elliptic Flow
5
Elliptic Flow
6
Simulation

• MEVSIM
• GEANT
• BFC

7
MEVSIM

• MEVSIM is an event generator.
• It provides uncorrelated A A collision events.
• Input to MEVSIM
• No. of events
• particle type their multiplicities
• anisotropic flow values.
• We put a certain flow value in each event and
  check how much we can measure from our detector.

8
Big Full Chain (BFC)

• BFC is the STAR software reconstruction chain.
• Outputs of BFC chain for simulation which we are
  using
• .event.root
• .geant.root

9
Procedure

• We Input 10 elliptic flow in MEVSIM for the
  particles . In the ? range -1.3 to
  -4.7.
• For the multiplicity AuAu 200GeV. We got .nt
  files
• We run geant year 2004 geometry by using .nt
  files and got .fzd files.
• We used .fzd files for making root files by
  running BFC chain.

10
Procedure cont.

• We got azimuthal angle F and Reaction Plane angle
  ?.
• We fit (F - ?) distribution by the following
  function.
• 1 2V1 cos(F - ?) 2V2 cos2(F - ?)

11
(F-?) distribution for elliptic flow
Input V2 is 0.1 and output is 0.099 for hadrons
12
Photon Track and Cluster V2 comparison
13
Photons Split Cluster and Original Cluster V2
Comparison
14
Photons Split Cluster and Original Cluster and
Tracks V2 Comparison
15
Ratio of Number of Photon Clusters and Photon
Tracks
16
Ration of Number of Split Photon Clusters and
Photon Tracks
17
Background and Original Hadrons V2 Comparison
18
Ratio of Hadron Tracks and Hadron Clusters
19
Conclusions

• Photon Tracks V2 dont change with Multiplicity.
• Photon Cluster V2 decreases with increasing
  Multiplicity.
• Hadron Tracks V2 dont change with Multiplicity.
• Hadron Cluster V2 decreases with increasing
  Multiplicity.

20
Future Plans

• We will try to find the reasons of the results
  which are still not understandable.
• We will do elliptic flow analysis with
  experimental data.

Thank You
21
Backup Slides
22
Multiplicity of p,p- and p0 at AuAu
200GeV(HIJING)Eta (-1.3 to -4.7)
23
Geant Output (For an event)
24
Edep and Ncell Cuts

• We used 3 MIP Edep and Ncell gt 1 cut for
• differentiating photons from hadrons.

25
Comparison of Edep ,Ncell cuts with photons
cluster
26
Comparison of Edep ,Ncell cuts with hadrons
cluster
27
Event Plane Angle
28
Ratio of Number of Photon (Tracks Clusters)/
Photon Tracks
29
Ratio of Split Photon Cluster and Original Photon
Cluster
30
Ratio of Background and Original Hadron Clusters
31
How Photon Cluster merging effects V2
If V2 effect present
If photon cluster merges
