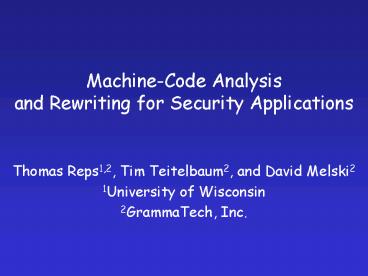

MachineCode Analysis and Rewriting for Security Applications

1
Machine-Code Analysisand Rewriting for Security
Applications

• Thomas Reps1,2, Tim Teitelbaum2, and David
  Melski2
• 1University of Wisconsin
• 2GrammaTech, Inc.

2
Objectives

• Review of GT/UW machine-code projects
• pre-IARPA support (2001-06)
• years 1 2 (10/06-9/08)
• year 3 option
• years 4, 5, 6, and 7
• Background for T.P. reminder for C.L.
• A plan for the future
• In the past, we have been both ambitious and
  creative, but
• hindered by
• the overhead of having had 15 contracts, 6
  grants, and 2 fellowships
• the lack of flexibility that comes from dealing
  with 23 different schedules, sets of milestones,
  deliverables, etc.
• Discussion

Heilmeier questions (rephrased in the past tense)
Heilmeier questions (future tense)
3
What have we been trying to do?

• Code-inspection tools for security analysts
• Analysis tools for identifying bugs and security
  vulnerabilities
• Platform for rewriting executables
• All analyses/operations performed on machine code
• stripped executables
• source-code assist
• when source code is available
• to validate the techniques that are to be used
  when source code is not available

4
Why Machine Code?

• Windows
• Login process keeps a users password in the heap
  after a successful login
• To minimize data lifetime
• clear buffer
• call free()
• But . . .
• the compiler might optimize away the
  buffer-clearing code (useless-code elimination)

memset(buffer, \0, len) free(buffer)
free(buffer)
5
WYSINWYXWhat You See Is Not What You eXecute

• Computers do not execute source-code programs
• They execute machine-code programs that are
  generated from source code

• An issue for any verification/analysis method
• theorem proving
• model checking
• dataflow analysis

6
What was the state of the artwhen the project
began?

• Bug and vulnerability detection
• Performed with a variety of reverse-engineering
  tools
• disassemblers
• debuggers
• fuzzers
• manual inspection
• Who does it?
• hackers, criminals, nation-states, and security
  companies
• What are the limitations of those approaches?
• labor intensive
• miss many vulnerabilities (i.e., a high
  false-negative rate)
• Rewriting of executables
• Heuristic approaches
• Unable to guarantee that correctness is
  preserved, even when original source is available

7
How did you advance the state of the art? What
milestones were achieved?

• New techniques to analyze machine code
• overcome obstacles such as the lack of
  symbol-table information
• interpret memory accesses, resolve indirect
  calls, etc.
• property checking
• TSL a platform for creating
• multiple analysis components
• for multiple tools
• analyzing multiple languages
• with
• reduced programming effort
• greater confidence in their correctness
• Ground-truth intermediate representation (IR)
• Accurate rewriting of executables

8
CodeSurfer/x86 Value Sets
9
CodeSurfer/x86 Inferred Types
10
CodeSurfer/x86Targets of Indirect Function Calls
11
CodeSurfer/x86 Data Dependences
Forward Slice
12
Analysis of Indirect Calls

• CodeSurfer/x86 analysis framework
• Detailed modeling of Dynamic Linked Libraries
  (DLLs)
• runtime linking
• aliasing forwarding
• Dataflow analysis
• Case Study Nimda virus
• Use of telltale system routines are obfuscated
• indirect use of LoadLibrary() and
  GetProcAddress()
• indirection through memory
• Ability to resolve indirect calls

13
Device-Driver Analysis

• Programming conventions are complicated
• 85 of crashes in Windows due to driver bugs
• DDA/x86 extension to CodeSurfer/x86
• Balakrishnan Reps, Analyzing stripped
  device-driver executables, TACAS 2008

14
PendedCompletedRequested Rule
A drivers dispatch routine should not return
STATUS_PENDING on an I/O Request Packet (IRP) if
it has called IoCompleteRequest on the IRP,
unless it has also called IoMarkIrpPending.
15
SLAM Error Trace
DDA/x86 Error Trace
16
Results For PendedCompletedRequested Rule
? A-locs from semi-naïve algorithm ? With
GMOD-based merge function ? With cross-product
automaton
17
DVT

• Disassembly Validation Tool
• Correlates compilation diagnostics with generated
  executables to construct ground-truth IR
• obtains the real layout of instructions from
  the compiler/assembler/linker
• Basis for sound rewriting of executables when
  source code is available
• eliminates reliance on heuristics for code/data
  separation
• Validation of correctness for disassemblers
• provides ground truth for measuring disassembler
  accuracy

18
Accurate Rewriting of Executables

• Melt, stir, refreeze
• DVT-assisted construction of IR for an executable
• Modification of the IR
• Re-assembly and linking into a new executable
• Case study GCC compiler suite
• Core executable cc1.exe
• 5 Mb
• After melt, stir, refreeze, the new executable
  behaves identically to original on GCC torture
  tests

19
A Question that Heilmeier Should Have Asked,
orHow does this address all of next years
problems? Hamming 1986

• . . . in the early days, I was solving one
  problem after another after another . . . I was
  depressed. I could see life being a long sequence
  of one problem after another after another. After
  quite a while of thinking I decided, No, I
  should be in the business of mass production of
  a variable product. I should be concerned with
  all of next year's problems, not just the one in
  front of my face.
• You should do your job in such a fashion that
  others can build on top of it . . .
• Instead of attacking isolated problems, I made
  the resolution that I would never again solve an
  isolated problem except as characteristic of a
  class.

20
A Question that Heilmeier Should Have Asked,
orHow does this address all of next years
problems? Hamming 1986

• . . . the ability to generalize often means
  that the solution is simple. Often by stopping
  and observing, This is the problem he wants
  but this is characteristic of so and so . . . I
  can attack the whole class with a far superior
  method than the particular one because I was
  earlier embedded in needless detail.
• The business of abstraction frequently makes
  things simple. . . . Altering the problem . . .
  can make a great deal of difference . . . because
  you can either do it in such a fashion that
  people can indeed build on what you've done, or
  you can do it in such a fashion that the next
  person has to essentially duplicate again what
  you've done. . . . It's just as easy to do a
  broad, general job as one very special case.

21
A Question that Heilmeier Should Have Asked,
orHow does this address all of next years
problems? Hamming 1986

• Questions
• What long-term leverage will be obtained via your
  approach?
• How is your approach structured so that it could
  provide leverage for solving the next problem in
  this area?
• Our answers
• Our applications are instances of generic,
  language-independent technology
• We have built an analyzer generator (TSL) that
  creates analysis components from a specification
  of an instruction sets operational semantics.
  Analyses created for, e.g., x86 are immediately
  obtained for all other languages for which one
  writes a TSL specification (e.g., PPC, ARM, MIPS,
  P-code, . . .)

22
Transformer Specification Language (TSL)

• A platform for creating
• multiple analysis components
• for multiple tools
• analyzing multiple languages
• For instance,
• CodeSurfer/x86, CodeSurfer/PPC, CodeSurfer/ARM,
  CodeSurfer/MIPS, ...
• CodeSonar/x86, CodeSonar/PPC, CodeSonar/ARM,
  CodeSonar/MIPS, ...
• Dash/x86, Dash/PPC, Dash/ARM, Dash/MIPS, ...

23
TSL Design Principles
Client Analyzer
N Analysis Components
Analysis1
Analysis2
AnalysisN

TSL Compiler

M Instruction-Set Specifications
24
TSL Design Principles
Stays the same
Client Analyzer
N Analysis Components
Analysis1
Analysis2
AnalysisN

TSL Compiler

M Instruction-Set Specifications
25
TSL Design Principles
Easily add an additional analysis in a
language-independent way
Client Analyzer
N Analysis Components
Analysis1
Analysis2
AnalysisN
AnalysisN1

TSL Compiler

M Instruction-Set Specifications
26
TSL Leverage
Redefine 40 TSL operations for each analysis
Client Analyzer
N Analysis Components
Analysis1
Analysis2
AnalysisN
AnalysisN1

Conventional approach Redefine gt600 x86
instructions for each analysis
TSL Compiler

M Instruction-Set Specifications
27
TSL Leverage
Client Analyzer
N Analysis Components

M Instruction-Set Specifications
28
TSL Leverage
Client Analyzer
N Analysis Components

TSL Compiler

• Greatly reduced effort ? enables
• building more ambitious tools
• Separation of concerns provides
• greater confidence in correctness

M Instruction-Set Specifications
29
TSL Leverage vs. P-code Leverage
Each TSL-based analysis specification
involves 166 basetype-operators - Most have 4
variants 8-, 16-, 32-, 64-bit 166/4 40
operations 2 map-operators (access/update) for
each map-type Total cost for N analyzers O(M)
O(40N)
Client Analyzer
N Analysis Components

TSL Compiler

Each P-code-based analyzer might involve 1
abstract transformer per P-code instruction Total
cost for N analyzers O(M) O(PN)
M Instruction-Set Specifications
30
Program-Analysis Components

• Analysis of memory contents (numeric values
  addresses)
• Variable-identification analysis
• Affine-relation analysis (ARA)
• Global-modification analysis (GMOD)
• Live-flag analysis
• Reaching-flag analysis
• Available-register analysis

Symbolic-Execution Components
Formula generation (quantifier-free bit-vector
arithmetic)
Execution Components
Emulate the specified processor by calling a
version of interpInstr() that has been complied
into C
31
Case Study
Instruction-set specifiers work x86 (2700
lines of TSL) 10-20 man-days to write the
TSL specification TSL generates about
40,000 lines of C PowerPC32 (1200 lines of
TSL) 4 man-days to write the TSL
specification
Analysis developers work 166
basetype-operators - This number covers four
kinds of operand sizes for each basic
operation Add8, Add16, Add32, Add64 166/4
40 operations 2 map-operators (access/update)
for each map-type E.g. Def-Use Analysis
About 1,000 lines of C (DUA abstract semantics)
Each basic operation just performs a Union of its
operands
32
Leverage Provided by TSL
Hand-written
TSL-based
CodeSurfer/SWYXx86
10 days to write the x86 spec
1 man month to implement all analyses
33
Leverage Provided by TSL
Hand-written
TSL-based
Affine Relation Analysis
542 instruction instances
34
Leverage Provided by TSL
Hand-written
TSL-based
Affine Relation Analysis
Equivalent in 324 cases out of 542
TSL generated transformers were more precise in
218 cases
Better!
35
Vulnerability Detection in Executables

• CodeSonar/C
• Successful commercial tool
• Finds flaws in C code
• Highly scalable (10s of MLOC)
• CodeSonar/SWYXx86
• Uses TSL (retargetable)
• Scalable techniques of CodeSonar
• Current prototype
• Mixed source/executable analysis
• More than 20 checks
• Toy examples

35
36
Instruction-Set Architecture Language (ISAL)

• Language to specify syntactic details of
  low-level languages
• Connects syntax (machine-code/assembly) to
  semantics (TSL)
• Inspired by SLED Ramsey 1995 and TSL
• ISAL infrastructure automatically generates
• Instruction decoder, with translation to TSL
  abstract syntax tree
• Pretty-printer
• Parser for assembly code (TBD)
• together with
• A comprehensive test suite (for syntactic issues)
  that covers the language specified

37
Academic MilestonesRepss publications on
static analysis, 2001-08

• 47 conference papers
• 9 journal papers
• 7 invited papers
• 5 book chapters
• 1 edited book
• 1 magazine article
• 4 Ph.D. students graduated
• 3 now GrammaTech employees
• 2 best-paper awards
• 2 conf. papers invited for special journal
  submission
• Google Scholar 1541 citations of the 2001-08
  papers

38
What has been the transition strategy?

• Worked with relevant parties in the intelligence
  community to inform them of, and let them try
  out, our new capabilities
• Obtaining clearances for classified work (PISA)
• Seeking classified contracts partnered with
  primes
• attending classified bidders meetings
• pending proposal as sub to Lockheed-Martin
  (1.7M)
• pending whitepaper with AIS
• other opportunities under discussion with BBN,
  LMCO, and Telcordia

39
What has been the transition strategy?

• Several tantalizing opportunities would involve
  only a small amount of effort
• Provide DVT information to Ghidra
• Specify P-code semantics in TSL ? all TSL-based
  analyses would be available for all P-code
  applications

40
Cost

• How long has it taken?
• mid-2001 to present
• How much did it cost?
• GrammaTech 5.2M
• 15 different contracts
• University of Wisconsin 1.45M
• 6 different grants
• 2 graduate fellowships
• Combined spending rate 1M/year

41
FY01 ? FY06 FY07 FY08 FY09
FY10 FY11 FY12
FY13
Automatic discovery of API-level exploits
Output-file format discovery
Library summarization
Device-driver analysis
IR recovery
TSL
DASH
CodeSurfer/SWYXx86,PPC32
CodeSurfer/x86
SWYX
CodeSonar/x86
CodeSonar/SWYX
ISAL
DVT
Accurate rewriting of executables
42
Objectives

• Review of GT/UW machine-code projects
• pre-IARPA support (2001-06)
• years 1 2 (10/06-9/08)
• year 3 option
• years 4, 5, 6, and 7
• Background for T.P. reminder for C.L.
• A plan for the future
• In the past, we have been both ambitious and
  creative, but
• hindered by
• the overhead of having had 15 contracts, 6
  grants, and 2 fellowships
• the lack of flexibility that comes from dealing
  with 23 different schedules, sets of milestones,
  deliverables, etc.
• Discussion

Heilmeier questions (rephrased in the past tense)
Heilmeier questions (future tense)
43
What are we trying to do?

• Integrate static, dynamic, and symbolic
  program-analysis methods, to
• Automate detection of vulnerabilities in software
  executables
• generate a list of likely vulnerabilities
• provide help understanding/remedying reported
  vulnerabilities
• Automate discovery of exploits in software
  executables
• provide inputs to exploit the vulnerabilities
  reported
• Automate generation of vulnerability-based
  signatures
• multiple interposition points e.g., network
  communication vs. library calls
• Provide a fisheye view on the code
• concentrate analysis effort (magnification) on
  specific regions of interest
• Develop similar analysis methods for concurrent
  programs
• Develop semantics-based techniques to transform
  machine code
• Guarantee that correctness is preserved
• Apply to signature suppression
• Mature the technology
• Finish what we started
• Connect what is easy to connect
• Mine what we have in creative ways

44
What is the current state of the art?

• Vulnerabilities, exploits, and signatures
• How does this get done at present?
• disassemblers
• debuggers
• fuzzers
• manual inspection
• Who does it?
• hackers, criminals, nation-states, and security
  companies
• What are the limitations of the present
  approaches?
• labor intensive
• miss many vulnerabilities (i.e., a high
  false-negative rate)

45
What is the current state of the art?

• Fisheye view on the code
• (concentrate analysis effort magnification
  on regions of interest)
• How does this get done at present?
• Not done (although demand algorithms have the
  right flavor)
• Holy grail
• What are the limitations of the present
  approaches?
• A demand alg. can generate as many demands as an
  exhaustive alg.
• Reps, T., Demand interprocedural program analysis
  using logic databases. Applications of Logic
  Databases, R. Ramakrishnan (ed.), Kluwer, 1994.
• Horwitz, S., Reps, T., and Sagiv, M., Demand
  interprocedural dataflow analysis. Foundations of
  Softw. Eng., 1995.
• Loss of precision (inherent to static analysis)
  can cause unnecessary demands to be generated

46
What is the current state of the art?

• Develop analysis methods for concurrent programs
• How does this get done at present?
• model checking
• take the product of the individual transition
  systems
• symmetry reduction, partial-order reduction, etc.
  to simplify
• check for reachability (safety) or Büchi
  acceptance (liveness)
• testing
• perturb the scheduler
• Who does it?
• verification researchers
• What are the limitations of the present
  approaches?
• scalability due to state-space explosion

47
What is the current state of the art?

• Transformation of machine code
• How does this get done at present?
• infrastructures for modifying executables
• (e.g., ATOM, EEL, DynInst, Etch, Vulcan)
• Who does it?
• hackers, criminals, nation-states, and security
  researchers
• What are the limitations of the present
  approaches?
• labor intensive
• based on syntax, not semantics ? incorrect
  transformations may perturb behavior

48
Novelty/prospects for success

• What is new about your approach?
• Our methods work on machine code
• addresses the WYSINWYX problem
• We use (reinterpretations of) a formal semantics
  of an instruction set
• Why do you think it can be successful at this
  time?
• CodeSurfer/x86 IR-recovery work shows that one
  can make machine-code problems look very similar
  to source-code problems
• allows good ideas from research on source code to
  be brought to bear on machine-code -analysis
  problems
• Leverage obtained from TSL
• operational semantics
• reinterpretations of the operational semantics

49
Novelty/prospects for success

• Vulnerabilities, exploits, signature generation
• New approaches to detecting flaws in source code
  have been developed that are much more scalable
  and effective than previous approaches
• Fisheye view
• New goal-directed algorithms have been developed
  for source code that combine dynamic analysis
  with symbolic techniques
• Analysis methods for concurrent programs
• Context-bounded analysis
• only check up to k context switches
• allow arbitrary amount of work between context
  switches
• algorithms from Repss group during the past two
  years

50
Novelty/prospects for success

• Semantics-based techniques to transform machine
  code
• GrammaTechs key ingredients
• DVT provides ground-truth IR (for instruction
  layout)
• IR TSL specification captures the programs
  semantics
• makes semantics-preserving rewriting possible
• use the semantics to ensure that the behavior is
  not changed
• A more precise IR allows stronger transforms
• E.g., code/data mixing
• None w/ Coarse IR
  w/ Precise IR

51
Novelty/prospects for success

• Mature the technology
• Finish what we started
• technology readiness levels 3,4,5 ? 5,6,7
  (for different technologies)
• Connect what is easy to connect
• provide DVT information to Ghidra
• specify P-code semantics in TSL
• Mine what we have in creative ways
• scalable, heuristics-based, variable and type
  recovery

52
If you succeed what difference will it make?

• It will provide the intelligence community with a
  decisive advantage in information warfare by
  allowing them to analyze and transform machine
  code at much lower cost and shorter time than
  opponents
• The capabilities have both defensive and
  offensive applications

53
Initial Milestones

• Vulnerabilities
• Determine whether using static analysis
  (CodeSonar/SWYXx86) to detect vulnerabilities
  in executables is as scalable as approaches that
  work on source code
• Compare false-positive and false-negative rates
  with CodeSonar/C on an appropriate corpus of
  examples
• Fisheye view on the code
• Demonstrate a version of the DASH algorithm
  working on machine code

54
Initial Milestones

• Mature the technology
• Provide DVT information to Ghidra
• Demonstrate capability to provide information
  obtained from TSL-based analyses in the Ghidra
  environment
• stack-height analysis (using ARA)
• high-level expressions for conditions
• heuristic-based variable recovery (VSA and ASI)

55
Cost

• How long will it take?
• 5 years
• How much will it cost?
• University of Wisconsin 2.8M
• Reps 5 RAs
• GrammaTech 8.4M
• In the past, we have been both ambitious and
  creative,
• but handicapped by
• the overhead of having been funded by 15
  contracts, 6 grants, and 2 fellowships
• the lack of flexibility that comes from dealing
  with 23 different schedules, sets of milestones,
  deliverables, etc.

56
What is your transition strategy?

• Classified discussions with relevant parties in
  the intelligence community to understand problems
  and opportunities to contribute
• GrammaTech recently granted TS facility clearance
• 3 employees with SCI clearances
• 4th employee undergoing background check for SCI
• Repss SCI clearance delayed until his return to
  US
• 5-year ID/IQ classified contract immanent
• Work closely with relevant parties in the
  intelligence community to
• demonstrate the capabilities of our innovations
• integrate with existing tools and approaches

57
Questions/Discussion
58
(No Transcript)
59
What difference did it make?

• Malicious-code analysis
• AWE project at MIT Lincoln Labs
• Given a worm . . .
• What are its target-discovery, propagation, and
  activation mechanisms?
• What is its payload?
• Uses CodeSurfer/x86 to recover the IR
• Resolve indirect jumps indirect calls
• Find system calls
• Find their arguments
• Follow dependences backwards to find where their
  values come from
• . . .

60
What difference did it make?

• Vulnerability Reviews
• Hidden Code
• Easter eggs, backdoors, time bombs, . . .
• Information leakage
• Password leakage, hi/low interference, . . .
• Bad Paths
• Authentication circumvention, race conditions, .
  . .
• Bug finding
• TOCTOU race conditions
• null-pointer deference
• buffer overrun
