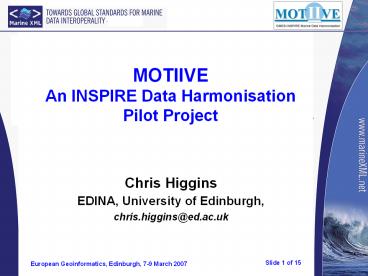

MOTIIVE An INSPIRE Data Harmonisation Pilot Project

1
MOTIIVEAn INSPIRE Data Harmonisation Pilot
Project

• Chris Higgins
• EDINA, University of Edinburgh,
• chris.higgins_at_ed.ac.uk

2

• Project Partners
• HR Wallingford (coordinators)
• UK Hydrographic Office
• Nansen Environment Remote Sensing Centre
• ARGOSS
• Social Change Online
• EDINA
• Central Laboratory of the Research Councils
  (CCLRC)
• Intergovernmental Oceanographic Commission
  (IOC-IODE)
• IDG Consultants
• EUCC European Coastal Union

3

• An INfrastructure for SPatial InfoRmation in
  Europe Pilot Project
• INSPIRE directive approved by the European
  parliament on the 12th Feb 07
• Member States will have to make available free
  of charge the services for discovering and,
  subject to certain specific conditions, viewing
  spatial data sets

4
What is MOTIIVE?

• MOTIIVE is an INSPIRE pilot project covering data
  harmonisation issues in the marine domain
• How to implement data services in the marine
  domain based on ISO and OGC standards
• Supports IHO and IOC in establishing a registry
  infrastructure for standards and services that
  new information services can be built upon.
• Also engaging WMO (via Met. Office UK)
• Demonstrate and document the above process,
  including the costbenefit of using open
  standards interoperability

5
Whyfor MOTIIVE?and dozens of other projects

• Demand at multiple different levels (global,
  regional, national, local) for reliable and
  timely spatial information to underpin decision
  making
• Need for Spatial Data Infrastructures (SDI) which
  in turn need open interoperability standards
• ISO/TC211, OGC, CEN
• Coastal zone particularly challenging
• Just finding the data, nevermind Publish, find
  and bind has proven difficult in practice
• Emphasis on reuse and subscribing, not
  reinventing subscribe, dont describe
• In terms of data harmonisation, MOTIIVE is strong
  on reuse of feature type definitions

6
For each XSD (for the source data) there is an
XSLT to translate the data to the Feature Types
(FT) defined by CSML. The FTs and XSLT are
maintained in a MarineXML registry
Phenomena in the XSD must have an associated
portrayal
Data from different parts of the marine community
conforming to a variety of schema (XSD)
The FTs can then be translated to equivalent FTs
for display in the ECDIS system
XSD
XML
Biological Species
S52 Portrayal Library
XSD
XML
Chl-a from Satellite
XML Parser
MarineGML(NDG) Feature Types
XSLT
XML
XSLT
XSLT
SeeMyDENC
SENC
XSD
MeasuredHydrodynamics
XML
XSLT
XML
XSLT
XSLT
ECDIS acts as an example client for the data.
XSD
Data Dictionary
XML
ModelledHydrodynamics
The result of the translation is an encoding
that contains the marine data in weakly typed
(i.e. generic) Features
Features in the source XSD must be present in the
data dictionary.
XSD
Feature described using S-57v3.1Application
Schema can be imported and are equivalent to the
same features in CSML
XML
S-57v3 GML
Slide adapted from Kieran Millard (AUKEGGS, 2005)
7
Australian Oceans Portal

• 1. Oceans portal application
• Search for marine data and metadata
• Data portrayal services
• Download data
• Information on standards and the data providers
• 2. National marine catalogue
• Registry of data/services available from
  providers
• Mechanism for providers to connect
• Use international standards
• Enhanced using an agreed governance model
• 3. Interoperable Data/Service providers
• Coalition of agencies that agree to expose their
  data and tools

8
(No Transcript)
9

• Geographic features
• abstraction of real world phenomena ISO 19101
• Type or instance
• Encapsulate important semantics in universe of
  discourse
• Something you can name
• Application schema
• Defines semantic content and logical structure
• GML Canonical encoding

10
Marine Community defining Features?
Dredging Extraction

Energy
The marine community is broad and there is no
one size fits all marine feature (MarineXML
Position Paper 2005).
Navigation
Science
Physical
Chemical
Water Quality
As this is the community, the lack of clear rules
means there is significant scope for variation in
how the feature is defined these feature types
may lack coherence and consistency with each
other. So.
Meteorology
Biological
FisheriesAquaculture
Conservation
11
Separation of concerns

• The key to interoperability is the formalisation
  of shared knowledge in communities through the
  definition and cataloguing of feature types.
  (ISO TC/211)
• Consistent Feature Types derived from a common
  coceptual model can be defined in response to a
  specific requirement subscribe dont describe
• Can then map from one Feature Type to another
• Motiive is delivering an ebRIM registry
  implementation of the OGC Catalogue2
  specification which in turn will deliver a
  Feature Type Catalogue

12
Feature Type Catalogues

• ISO19110. Feature catalogues defining the types
  of features, their operations, attributes, and
  associations represented in geographic data are
  indispensable to turning the data into usable
  information.
• Housed in an ebRIM registry will allow rich
  levels of association between catalogued
  resources to be expressed and navigated, eg,
  feature type inheritance hierarchies, operations
  defined on features
• Many other related geospatial resources in this
  soup vocabularies, application schemas, text
  documents, etc.

13
A marine coastal scenario

• Assumption an era of harmonised SDI
• Can access a range of data and processing
  services across the internet
• All available using standards-based interoperable
  web services
• Our user wants to evaluate the predicted output
  from a variety of tidal models against historical
  data to test quality of the models
• And she wants to see the results

14
Use Cases

• Query feature type catalogue
• Discover data access service
• based on feature type, keyword and extent
• Discover service by interface
• query feature type catalogue to find service that
  affects a feature transformation
• Requires ability to navigate inheritance
  hierarchy
• Discover service by type
• returns a portrayal service

15
Conclusion

• MOTIIVE is examining the use of standards to
  achieve semantic interoperability
• Is building on MarineXML and the Australian
  Oceans Portal
• Extending to integrate Feature Type Catalogues
  with Service Catalogues
• work in progress
• The ISO TC/211/OGC suite of standards is a
  powerful (but still relatively untested?)
  interoperability framework
• Many new research questions will arise as
  experience with this framework is accumulated

Email chris.higgins_at_ed.ac.uk
