Title: Solar Energetic Particle Events: An Overview


1

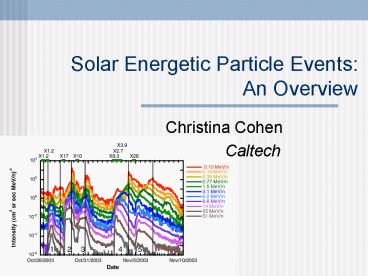

Solar Energetic Particle Events An Overview
  • Christina Cohen
  • Caltech

2
Overview of the Overview
  • What are SEP events?
  • Space Weather and SEP events
  • Why?
  • Tools we can use
  • Characteristics of interest
  • Intensity (peak, rise time, duration)
  • Spectra
  • Composition
  • Current predictive capability
  • Current questions for study

3
SEP Events
Space Weather Intensity Spectra
Composition Predictions Questions
  • What are they?
  • Ions Electrons

4
SEP Events
Space Weather Intensity Spectra
Composition Predictions Questions
  • What are they?
  • Ions Electrons
  • Large ones are accelerated by CME-driven shocks

5
SEP Events
Space Weather Intensity Spectra
Composition Predictions Questions
dE/dx ? (Z/V)2 ? (MZ2/E) E dE/dx ? Z2M dE/dx
?E/ L ?E/(L0 sec ?)
  • What are they?
  • Ions Electrons
  • Large ones are accelerated by CME-driven shocks
  • How do we measure them?
  • Spacecraft based instrumentation (GOES, Wind,
    ACE, SoHO, STEREO)
  • dE/dx vs E time of flight

6
Space Weather SEP Events
Space Weather Intensity Spectra
Composition Predictions Questions
  • Why?
  • Danger to astronauts, instruments, power grids,
    etc
  • Understanding enables predictions
  • Tools at our disposal
  • SEPs (ions, electrons)
  • Spacecraft (ACE, Wind, SoHO, GOES)
  • Neutron monitors
  • Solar
  • CMEs (LASCO)
  • X-ray (SXI, GOES, RHESSI)
  • Other (MDI, EIT, TRACE...)
  • Radio (WAVES, ground-based)

7
Space Weather SEP Events
Space Weather Intensity Spectra
Composition Predictions Questions
LASCO
LASCO
EIT
MDI
GOES/XRAY
ACE ULEIS-SIS
8
Space Weather Intensity Spectra
Composition Predictions Questions
EPAM
9
Space Weather Intensity Spectra
Composition Predictions Questions
EPAM
LASCO CME time-height profile
lt4 Rs
10
Space Weather Intensity Spectra
Composition Predictions Questions
Wind/WAVES
11
Characteristics - IntensityVariability
Space Weather Intensity Spectra
Composition Predictions Questions
  • Varies with everything
  • event
  • time

12
Characteristics - IntensityVariability
Space Weather Intensity Spectra
Composition Predictions Questions
Oxygen
  • Varies with everything
  • event
  • time
  • species

Protons
13
Characteristics - IntensityPeak Limitations
Space Weather Intensity Spectra
Composition Predictions Questions
  • streaming limit Reames Ng 1998
  • proton-generated turbulence limits intensities

14
Characteristics - IntensityPeak Limitations
Space Weather Intensity Spectra
Composition Predictions Questions
  • streaming limit Reames Ng 1998
  • proton-generated turbulence limits intensities
  • All bets offat ESP events

15
Characteristics - IntensityPeak Limitations
Space Weather Intensity Spectra
Composition Predictions Questions
  • Exceptions - Jan 20, 2005

16
Characteristics - IntensityRise Time
Space Weather Intensity Spectra
Composition Predictions Questions
  • rise time - generally depends on longitude
    relative to flare
  • Fastwestern
  • Sloweastern

Cane et al. 1988
17
Characteristics - IntensityRise Time
Space Weather Intensity Spectra
Composition Predictions Questions
  • rise time - generally depends on longitude
    relative to flare
  • Fastwestern
  • Sloweastern
  • Jan 20, 2005
  • faster than most
  • W61

gt100 MeV
18
Characteristics - IntensityRise Time
Space Weather Intensity Spectra
Composition Predictions Questions
  • rise time - generally depends on longitude
    relative to flare
  • Fastwestern
  • Sloweastern
  • Jan 20, 2005
  • faster than most
  • W61
  • gt100 MeV fluencein first few hours was greater
    than any other event since1976

19
Characteristics - IntensityTheoretical
Understanding
Space Weather Intensity Spectra
Composition Predictions Questions
  • CME-driven shocks
  • strong shocks - Fermi acceleration

Lee 2005
20
Characteristics - IntensityTheoretical
Understanding
Space Weather Intensity Spectra
Composition Predictions Questions
Zank et al. 2001
  • CME-driven shocks
  • strong shocks
  • central meridian (nose of shock) gives largest
    increase

4 of the top 6 events of 1997-2004
21
Characteristics - SpectraVariability
Space Weather Intensity Spectra
Composition Predictions Questions
  • most large events show roll-off

Oxygen
22
Characteristics - SpectraVariability
Space Weather Intensity Spectra
Composition Predictions Questions
  • most large events show roll-off
  • power law events - problem at high energy

23
Characteristics - SpectraVariability
Space Weather Intensity Spectra
Composition Predictions Questions
  • most large events show roll-off
  • power law events - problem at high energy

24
Characteristics - SpectraTheoretical
Understanding
Space Weather Intensity Spectra
Composition Predictions Questions
  • Power law determined by shock strength
  • Roll-off determined by escape,species dependent

Li et al. 2005
CNO
Lee 2005
H
Fe
Kinetic energy (MeV/n)
25
Characteristics - CompositionVariability
Space Weather Intensity Spectra
Composition Predictions Questions
  • mostly protons

H
He
C x 10
O
Fe
26
Characteristics - CompositionVariability
Space Weather Intensity Spectra
Composition Predictions Questions
  • mostly protons
  • heavy ions still important
  • not predictable from proton measurements

H
O
Fe
27
Characteristics - CompositionVariability
Space Weather Intensity Spectra
Composition Predictions Questions
  • mostly protons
  • heavy ions still important
  • not predictable from proton measurements
  • very variable

28
Characteristics - CompositionVariability
Space Weather Intensity Spectra
Composition Predictions Questions
  • mostly protons
  • heavy ions still important
  • not predictable from proton measurements
  • very variable
  • dependent on energy

29
Characteristics - CompositionTheoretical
Understanding
Space Weather Intensity Spectra
Composition Predictions Questions
  • Shock acceleration
  • Variations dependon Q/M

30
Characteristics - CompositionTheoretical
Understanding
Space Weather Intensity Spectra
Composition Predictions Questions
  • Shock acceleration
  • Variations dependon Q/M
  • seed population (not SW)

31
Characteristics - CompositionTheoretical
Understanding
Space Weather Intensity Spectra
Composition Predictions Questions
  • Shock acceleration
  • Variations dependon Q/M
  • seed population (not SW)
  • flare suprathermals for high Fe events??

Still dont know how to generate element-dependent
power law slopes
Tylka et al. 2005
32
Current Predictive Capability
Space Weather Intensity Spectra
Composition Predictions Questions
  • Tools
  • neutron monitors
  • L1 monitors (ACE RTSW)
  • ESP events
  • peak events
  • Solar - CMEs, Flares, Active Regions
  • Theoretical Understanding (models)
  • But currently cant predict SEP characteristics
    from solar observations

33
Current Predictive Capability
Space Weather Intensity Spectra
Composition Predictions Questions
  • Current Techniques
  • shock arrival
  • Average uncertainty in arrival time
  • 24 hrs in advance gt 8.9 hrs
  • 12 hrs in advance gt 4.6 hrs

Vandegriff et al. 2005
34
Current Predictive Capability
Space Weather Intensity Spectra
Composition Predictions Questions
  • Current Techniques
  • shock arrival
  • ESP L1 detection
  • 30-60 minutes warning

35
Current Predictive Capability
Space Weather Intensity Spectra
Composition Predictions Questions
  • Current Techniques
  • shock arrival
  • ESP L1 detection
  • 30-60 minutes warning
  • Electrons
  • 60 minutes warning

36
(No Transcript)
37
Current Predictive Capability
Space Weather Intensity Spectra
Composition Predictions Questions
  • Current Techniques
  • shock arrival
  • ESP L1 detection
  • 30-60 minutes warning
  • Electrons
  • 60 minutes warning
  • Fluence limits from suprathermals

38
Current Questions for Study
Space Weather Intensity Spectra
Composition Predictions Questions
  • Acceleration
  • Details of the process
  • Requirements
  • Pre-conditioning
  • Turbulence from previous events
  • Suprathermal population (flares)
  • Solar signatures
  • What feature? CME brightness/speed? Flare
    size/duration?
  • future missions Solar Probe, Sentinels

39
Current Questions for Study
Space Weather Intensity Spectra
Composition Predictions Questions
STEREO Launch
ACE H gt 10 MeV
  • Acceleration
  • Details of the process
  • Requirements
  • Pre-conditioning
  • Turbulence from previous events
  • Suprathermal population (flares)
  • Solar signatures
  • What feature? CME brightness/speed? Flare
    size/duration?
  • future missions Solar Probe, Sentinels

STEREO Now
STEREO Launch
