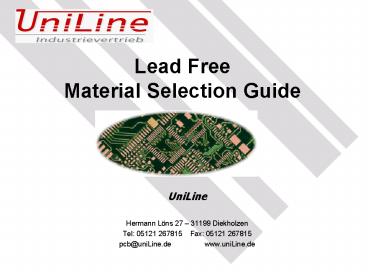

Lead Free Material Selection Guide

1
Lead FreeMaterial Selection Guide

• UniLine
• Hermann Löns 27 31199 Diekholzen
• Tel [phone] Fax [phone]
• pcb_at_uniLine.de www.uniLine.de

2
What is RoHS / WEEE?

• Waste Electrical and Electronic Equipment
• Restrictions of Hazardous Substances
• Substances maximum level by mass

3
Requirements to the PCB

• Base material
• FR-4 meets RoHS requirements
• Surface finish
• All the popular alternatives to HASL with lead
  complies with RoHS.

4
PCBs for Lead Free Soldering

• Important base material parameters
• Tg Glass Transition Temperature
• Td Decomposition temperature
• T260/T288 Time to Delamination
• CTE

5
Glass Transition Temperature, Tg

• The Tg of a resin system is the temperature at
  which the material transforms from a relatively
  rigid or glassy state, to a more deformable or
  softened state.
• Tg is important to understand since the
  properties of base materials are different above
  the Tg versus below the Tg.

6
Decomposition temperature, Td

• The decomposition temperature is a measure of
  actual chemical and physical degradation of the
  resin system. This test uses thermogravimetric
  analysis (TGA), which measures the mass of a
  sample versus temperature.
• The decomposition temperature is reported as the
  temperature at which 5 of the mass of the sample
  is lost to decomposition

7
Time to Delamination

• The time to delamination is a measure of the time
  it takes for the resin and copper, or resin and
  reinforcement, to separate or delaminate. This
  test utilizes TMA equipment to bring a sample to
  a specified temperature and then measures the
  time it takes for failure to occur.
• With Pb-free assembly temperatures reaching
  260oC, the T260 test has become a much more
  relevant measure of performance.

8
Coefficient of Thermal Expansion CTE

• CTE values are important since they influence the
  reliability of the finished circuit.
• Other things being equal, less thermal expansion
  will result in greater circuit reliability as
  less stress is applied to plated holes

9
Conclusion

• Standard FR-4 complies with RoHS
• A wide range of surface finishes that complies
  with RoHS is widely available.
• Lead Free soldering have a great impact on the
  material
• Tg is not a sufficient parameter to select
  materials for lead free soldering!

10
What impacts the selection?

• Assembly requirements
• Application requirements
• PCB manufacturing process
• Copper / layers
• Holes and plating
• PCB thickness
• Mixed materials

11
Soldering process

• Number and type of soldering processes
• For each soldering we need
• Type of soldering
• Peak temperature.
• Repair/replacement/selective soldering
• Standard profiles
• Wave IEC 61760
• Reflow JSTD020C

12
Solder alloys

• SAC305
• Solders at 235-240 0C
• Copper erotion
• SN100C
• Solders at 260-270 0C
• Less copper erotion
• Better flatness/brighter/less bridges?

13
Application requirements

• Mechanial demands
• High mechanical demands one step up
• Thermal demands
• High thermal demands one step up

14
Application requirementsEnvironmental aspects

• Vibration
• Re IVF report Brittle Fractures
• Heat
• Material breakdown
• Cycling (viaholes)
• Moisture
• Delamination

15
Manufacturing process

• Core
• Prepreg
• Pressing parameters
• Copper surface cleanliness roughness
• Plating - hole quality and copper adhesion

16
Copper - layers

• Copper distributes heat!
• More copper more heat more challenge
• 1,6 mm standard ca 6-8 layers 1 oz Cu
• Thicker copper per layer
• More layers per board thickness
• Planes in outer layers

17
Holes and plating

• Holes distributes heat into the board!
• Blind via/ buried via extra bonding cycle
• Each extra bonding cycle one step up
• Microvia can be 1-2 extra bonding cycles
• Smaller holes weaker holes
• Aspect ratio gt 81 - requires better Z CTE
  control high material performance.

18
PCB Thickness

• Thickness gt 1,6 one step up
• Related parameters
• Hole aspect ratio
• Base copper thickness,
• Number of layers
• Plating thickness

19
Mixed materials

• HF applications
• Bow Twist
• Balanced build
• Increased plating thickness
• Rigid Flex
• High performance material must be used!
• If possible, avoid Covercoat inside rigid part.
• Balanced build
• Increased plating thickness

20
Laminate properties

• Fibre Glass Resin FR-4
• Different types of Resin
• Standard Dicy cured FR-4
• Mid Performance Dicy Cured
• Mid Performance Phenolic Cured
• High Performance Dicy Cured
• High Peformance Phenolic Cured

21
IPC 4101B Lead Free

• IPC-4101B/99. High Tg FR-4, inorganic fillers,
  brominated flame retardant
• IPC-4101B/101. Low Tg FR-4, inorganic fillers,
  brominated flame retardant
• IPC-4101B/121. Low Tg FR-4, no fillers,
  brominated flame retardant
• IPC-4101B/124. High Tg FR-4, no fillers,
  brominated flame retardant
• IPC-4101B/126. Very high Tg, inorganic fillers,
  brominated flame retardant
• IPC-4101B/129. Very high Tg, no fillers,
  brominated flame retardant

22
Laminate Performance GuideStandard PCB
23
Material selection guide
24
Material selection guide
25
Material selection guide
26
Material selection guide
27
Material selection guide

28
Selection guide - Features...
29
Selection guideApplication demands.
30
PCB finishes for RoHS and Lead Free Soldering
UniLine Hermann Löns 27 31199
Diekholzen Tel [phone] Fax 05121
267815 pcb_at_uniLine.de
www.uniLine.de
31
Topics

• RoHS requirements to the PCB finish
• Lead Free soldering requirements
• Alternatives
• Today

32
RoHS requirements to the PCB finish

• Material content
• Increased heat in soldering process

33
RoHS requirements to the PCB finish

• Substances maximum level by mass
• Lead                                    lt 1000
  ppm / 0,1
• Hexavalent Chromium lt 1000 ppm / 0,1
• Mercury                              lt 1000 ppm
  / 0,1
• Cadmium lt 100 ppm / 0,01
• Polybrominated Biphenyls (PBB)    lt 1000 ppm /
  0,1
• Polybrominated Diphenylethers (PBDE) lt 1000 ppm /
  0,1
• Levels measured by mass in any "homogenous
  substance" - defined as any substance that can be
  mechanically separated into an isolated substance

34
Lead Free Alternative Finishes

• Lead Free HASL
• Silver
• Tin
• OSP
• ENIG
• ENIG OSP
• Flash Gold

35
Lead Free HASL

• Several alloys used
• SAC 305
• SAC 308
• SN100CL (Nihon Superior Balver, ANSAN etc.)
• Can we mix soldering and HASL alloys? Yes..(?)
• Concerns
• Flux compatibility
• 1 extra heat process
• Flatness

36
Chemical Tin

• Chemistry is under development
• White tin
• Silver doped tin
• Concerns
• Thickness enough for solderability, but
• Whiskers thick tin can give whiskers!
• Inter metallic layer (time and temperature)
• Handling (in all stages)
• Complex process control
• Via plugging
• Compatibility to Flux and soldermask

37
Chemical Silver

• New chemistry released 2005
• Thickness improved
• Concerns
• Handling (in all stages)
• Sensitive to light
• Process control
• Compatibility to Flux
• Dendrites
• Markets Parts of Europe and USA

38
OSP

• Development through 20 years
• Process control simple!
• Concerns
• Sensitivity to thermal cycles
• Shelf life
• Handling
• Markets Japan South East Asia USA.

39
Chem. NI-AU

• Process control
• mature process long experience.
• Concerns
• Plugged via design black pad
• BGA brittle fractures
• Handling with care
• Markets Europe
