Title: ISOC Update Outline


1

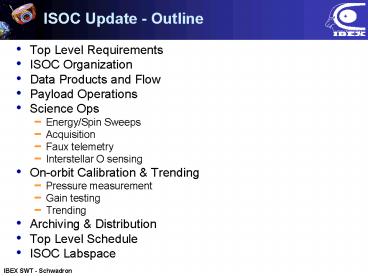

ISOC Update - Outline
  • Top Level Requirements
  • ISOC Organization
  • Data Products and Flow
  • Payload Operations
  • Science Ops
  • Energy/Spin Sweeps
  • Acquisition
  • Faux telemetry
  • Interstellar O sensing
  • On-orbit Calibration Trending
  • Pressure measurement
  • Gain testing
  • Trending
  • Archiving Distribution
  • Top Level Schedule
  • ISOC Labspace

2
Nomenclature
ACRONYMS
  • Flight Software (FSW) SCB Software
  • Payload Firmware (PLFW) CEU Software
  • High Altitude Science Ops (HASO) (gt 10 Re)
  • Low Altitude Housekeeping Ops (LAHO) (lt10 Re)
  • State of Health (SOH) (SCB P/L) SOH
  • Channel D IBEX-Hi background monitor
  • Star Tracker SCB Star Tracker
  • Star Sensor IBEX-Lo star sensor

SUBSYSTEMS
3
Top-Level ISOC Requirement
  • To receive S/C data from the MOC and perform the
    following tasks
  • Sequence data
  • Identify data gaps and remove redundant data
  • Process to higher level data products
  • Archive and make data products available to the
    IBEX Science Team and the greater scientific
    community
  • Also responsible for IBEX payload commanding
    (special ops), performance trending and parameter
    modifications over the course of the IBEX mission

4
ISOC Organization
Ops Lead Chelle Reno
ISOC Lead Nathan Schwadron BU (0.4 FTE)
Katie Goodrich, Sadia Hoq, Brian Stuart, Brent
Randol, Jamison Passuite BU (.33 FTE)
FTE Yearly Average
5
IBEX Data Flow
6
Orbit in the Life of the ISOC
  • Command Loads
  • Approve or Deny Command Load
  • Provide STF to Orbital MOC (for special science
    maintenance operations)
  • Receive copy of as-delivered upload
  • Monitor near real-time SOH during pass using VNC
  • Download raw back-orbit real-time data from the
    MOC SFTP site ingest into ISOC database
  • Remove CCSDS headers (Level 0)
  • Sequence data, identify data gaps remove
    redundant data (Level 0.5)
  • Generate Level 0.5 data
  • Includes derived fields such as spin phase, look
    direction, background as a function of look
    direction
  • Accumulate Level 1 data into Level 2 maps
  • perform magnetospheric/heliospheric segregation,
    separate species, find velocity direction,
    identify and cull any backgrounds
  • Perform model-dependent corrections for Level 3
    data and accumulate into maps

7
Payload OperationsCommand Load Generation
  • ISOC receives Orbit Events file from MOC
  • For orbits where special science maintenance
    operations are desired, the ISOC generates an STF
  • Pressure Measurement
  • Gain Testing
  • If no special operations are needed, integrated
    command load is generated by the MPS software in
    the MOC
  • ISOC approves or declines the MOC-compiled ATS
    (Absolute Time Sequence) file
  • ISOC receives copy of theas-delivered'' uplink
  • 2 - 8 P/L commands per orbit
  • P/L commanding is macro driven
  • Variable parameters are set in Look Up Tables and
    called by macros
  • Simplifies command load generation and validation

8
Payload Operations All Payload Commands
Used Every Orbit
9
PIGMI and Synthetic IBEX Data
10
PIGMI Software and Sky Coverage
11
Synthetic Data Flow
  • Synthetic data will be routed through the CEU
    software to generate CCSDS telemetry stream
  • Allows testing of scheme for data acquisition,
    harvesting, and packetizing
  • S/W is being written now and will be extensively
    tested by BU students

12
Science AcquisitionHigh-Level Timeline
13
Science AcquisitionSpin-Level Detail (IBEX-Hi
Example)
14
Interstellar O-sensing Mode
  • Does not happen in the first 6 months of science
    acquisition
  • Restricted to - 30 deg from ecliptic
  • Spring
  • Use both high (3.5º FWHM) and low (7º FWHM)
    resolution sectors of the collimator for
    interstellar neutral observing
  • For every 10-th spin, look at Energy bin 1 to
    identify any possible He counts
  • For the other 9 spins use a single energy channel
    near 500 eV for O sensing
  • Fall
  • Reject particles from low resolution sectors
  • Focus on Energy bins 2-3 (around 40 eV)

Ops Need Specification
15
Oxygen Sensing Mode
16
On-orbit Calibration Pressure Measurements (1
of 2)
  • Pressure in ion gun region of sensors is a
    proxy for expected background
  • Rest gas between collimator and conversion
    sub-system produces secondary ions via photo- and
    e-- impact ionization
  • Pressure can be indirectly measured
  • Negative e- rejection voltage is lowered in steps
    allowing a small e- current into the system, and
    enhanced e- impact ionization
  • Pressure in the critical region behind the
    collimator can be deduced with reasonable
    accuracy for pressures above 10-8 Torr

17
On-orbit Calibration Pressure Measurements (2
of 2)
  • Expected secondary ion rate and electron currents
    into the collimator as a function of rejection
    voltage for moderate and hot solar wind electron
    distributions with a pressure of 10-8 Torr in the
    region behind the collimator for a 1.5 keV ESA
    step

18
Gain Testing
  • Track the MCP gain by the ratios of Triple to
    Double Coincidence Rates
  • Ground Software will provide the ratios for
    trending
  • Test Procedure that contains an automated series
    of internal stimulation settings, which
    completely tests the analog electronics
  • Run once per month.
  • David Hertzler is working on an automated check
    of this sequence

19
Trending
  • Remainder of telemetry is housekeeping (H/K)
  • Formatted to allow quick lookups base and stored
    in the telemetry database for easy
    cross-referencing
  • Interpolation strategy TBD
  • Heuristics to eliminate isolated noisy or
    unphysical values
  • Trended quantities a topic for the April IBEX SWT

20
Archiving and Databases
  • Two primary Databases
  • Engineering SOH
  • Trending
  • SOH
  • Searchable Database
  • Science Database
  • Telemetry to Maps
  • C programs for data harvesting
  • DEs and Histograms quality tagged
  • Visualization toolbox (coordinate systems,
    overlays)

21
Archiving and Distribution
  • ISOC (SwRI)
  • Telemetry Archive
  • Engineering SOH Archive
  • Science Archive with web distribution of data
    products to science team
  • BU
  • Mirrored Science Archive
  • SPDF and NSSDC
  • Level 1,2,3 to SPDF for active archive (CDF
    format). The SPDF puts these on active archiving
    public sites such as CDAWeb, SSCWeb, and OMNIWeb
  • IBEX will be a part of the Virtual Heliospheric
    Observatory (VHO), a new concept that allows
    users to interact with data that is stored at
    locations other than the SPDF CDAWeb. VHO is
    basically a search tool that will not house any
    actual data. To enable IBEX in the VHO, the ISOC
    plans to submit metadata to the SPDF identifying
    where various data products are retrievable.
  • Validated Level 0, 1, 2, 3 data sent to NSSDC for
    permanent archive

22
ISOC Engineering SOH Archive
  • Searchable Database
  • Each APID has its own database table
  • IBEX Database Backups
  • 2 Linux Boxes in ISOC
  • Backed up weekly
  • Transcribed to tape and stored
  • Backup database at Boston University

23
Science Processing Repository
  • Telemetry is also processed using a series of C
    routines
  • Sequence
  • Remove redundant data
  • Use ephemeris tables and pointing information
    (ancillary data) to derive position and attitude
  • Perform binning, data harvesting
  • Correlate DEs and Histograms
  • Routines to plot in GSE, RA DEC, HSE coordinate
    systems
  • Overlay magnetospheric projections
  • Data is manipulated and harvested with a series
    of option flags for filtering
  • data never removed
  • Overlays include star maps, planets, the moon,
    magnetosphere, possibly bright comets
  • Data storage not an issue
  • data volume small Estimate of total data volume
    including data products and stored data
    reports, less than 50 GB

24
Top Level Schedule
  • Faux Telemetry Scheme - 4/20/07
  • S/W Build 1 - June/07
  • Toolbox functions defined
  • Level 0.5 Science S/W
  • Level 0.5 P/L Firmware
  • Command Load Defnt
  • Flight Rules Constraints
  • Mag and TS ENA Model
  • Thermal test at SwRI - 7/15/07
  • MOC I/F ISOC - 9/19-10/9/07
  • Ground system I/F tests
  • Mission PER - 10/24/07
  • Grnd Network Data Flow Test - 12/20/07
  • Test MOC I/F ISOC - 12/20/07 - 1/4/08
  • ISOC/MOC Command Processing - 1/7-8/08
  • S/W Build 2 (post-cal) - 1/7/08
  • SCB Attitude Determination
  • Cal Bkg Tables
  • UV Star Table
  • SWT - May/2008
  • IBEX Ground Seg End-to-End - 5/23/08
  • Rehearsals/tests - April-June/08
  • S/W Build 4 (flight build) - 6/2/08
  • Global Mapping S/W
  • Aliveness test, CEU H9 Lo functional test,
    Initial rampup
  • Web I/F, SOH Database
  • S/W Build 5 (in flight) - 10/15/08
  • Model dependent corrections
  • Flux calculations
  • Partial Results - 12/8/08
  • Survey 6 Months - 1/15/09
  • First mapping publication - 1/22/09
  • Survey 12 months - 7/15/09
  • ISOC S/W Build 6 - 7/15/09
  • Survey 18 months - 1/15/10
  • Survey 24 months - 7/15/10
  • Survey 36 months - 7/15/11
  • Survey 48 months - 7/15/12

25
Opportunities for Testing
  • Thermal Vac Test
  • TDRSS RF Compat. Testing
  • MOC - ISOC I/F Test
  • USN-MOC-ISOC I/F Test
  • S/C Ops Procedures Test
  • Suite of Regression Tests

26
End Here
27
ISOC Lab Space
  • Computers with monitors keyboards
  • MAESTRO workstation
  • GSEOS Laptop - 2
  • Data Processing Computer - 2
  • Computers for other uses - 3
  • STK license
  • Additional Office equipment
  • Conference Table to seat at least 8
  • Desks/chairs for computers
  • Filing Cabinets - 3
  • Bookshelf Cabinet - 4
  • Phone
  • Conference Phone
  • Projection Screen
  • Projector
  • Routers
  • CPU only
  • Primary Archive computer
  • Secondary Archive computer
  • Other
  • Outlets on 3 walls
  • Outlets under conference table
  • Ethernet jacks on at least 2 walls
  • One must be outside firewall
  • Hardware
  • Spacecraft Bus Sim (3'x2'x4')
  • CEU Sim
  • Need floorplan, diagram lab space, magnetic key
    lock, pics and floorplans

28
Backup
29
PIGMI Forward Modeling Results
Kappa Dist. Opher Model
Kappa Dist. Pogorelov Model
Maxwellian, Opher Model
  • All-sky ENA flux maps for several models using a
    Hammer-Aitoff projection.

0.45 keV
1.1 keV
2.6 keV
30
PIGMI Forward Modeling Results
  • ENA flux for 2.645 keV with ? 1.63 using Opher
    model.

31
PIGMI Forward Modeling Results
  • S/N at the nose of the termination shock for IBEX
    Hi (green) and IBEX Lo (Black) using the Opher
    model for a 2 year mission.
  • Dashed lines, maxwellian distribution
  • solid lines, kappa1.6

32
Data Levels
33
Data Processing Flow
34
IBEX-Hi DE Acquisition
  • A complete IBEX-Hi sweep (6 energy steps x 2
    spins/energy step x 60 spin-bins/spin) 720
    spin-bins
  • Each cell in the above represents DE
    pre-harvesting storage for holding 0 or more DEs
    for each of the Energy-Spin-Bins.
  • Payload Firmware (PLFW) will store as many DE
    into this DE acquisition pool as they are being
    acquired.
  • The above takes three minutes to acquire at 4 rpm
    spin rate
  • Current DE telemetry packing scheme can achieve
    approximately 720 DEs per IBEX-Hi sweep, so use
    720 as telemetry cap in this example

35
IBEX-Hi DE Harvesting
Examples of harvested events in first sweep
  • Regions with low count rates are likely to be
    from the heliosphere (our key science)
  • Principle Start with the valleys and work up to
    the mountains
  • Starting from (Energy,Spin,Bin)(0,0,0), if a DE
    is available for that Energy-Spin-Bin, select one
    DE at random (or by using Priority Table and
    Random combination) in that Spin-Bin for
    downlink. That DE is removed from the DE
    acquisition pool.
  • Traverse entire DE acquisition pool, select at
    most one DE per Energy-Spin-Bin cell for downlink
    using same choice scheme as above
  • Traversal is performed by incrementing Spin-Bin
    the fastest, then Spin, then Energy
  • The DE acquisition pool is traversed repeatedly
    until the cap of 720 telemetered DE events is
    achieved

36
A History of IBEX-Hi DE Culling Schemes(for
reference)
  • Favors bins with least number of DE
  • Send all the DE where there is only 1 DE per
    Energy-Spin-Bin
  • If telemetry available, send all the DE where
    there are 2 DE per Energy-Spin-Bin
  • If telemetry available, send all the DE where
    there are 3 DE per Energy-Spin-Bin
  • Etc.
  • (IBEX-Hi DE type, CEM D reading) priority table
  • Present scheme Gives every bin a vote, but
    favors bins with less DE

37
Direct Event Types (IBEX-Hi)
  • Pr - priority based on sims
  • abc (ABC) pulses latched after short (long)
    window
  • TtofC (abc ! ABC)
  • ZtofC (c0)

38
IBEX-Hi DE List (compact scheme)
  • DE list generated every energy sweep (12 spins)
  • 800 direct events stored as list of timestamps
  • There are 16 unique event types (combination of
    CEM short long pulses)
  • Bit list for the 12 spins x 16 event types (192
    bits).
  • When an event occurs a bit is flipped (1)
  • List of 12 bit direct event time stamps in the
    following representative order
  • spin 0, type ABC
  • timestamp 0 (position 1)
  • timestamp 1 (position 2)
  • ...
  • spin 0, type AB,
  • timestamp 0 (position ..)
  • timestamp 1
  • ...
  • ... (event types for spin 0)
  • spin 2, type ABC
  • timestamp 1
  • ... (event types for spin 1)
  • ... (event types for spin 2)

39
IBEX-Hi DE List (compact scheme)
  • Hi DE List provides lack of redundant data
    (similar to gzip)
  • Progression exceptions and spin/event-type table
    needed for unique decompression

40
Top Level Schedule
  • Faux Telemetry Scheme - 4/20/07
  • S/W Build 1 - June/07
  • Toolbox functions defined
  • Level 0.5 Science S/W
  • Level 0.5 P/L Firmware
  • Command Load Verification Defnt
  • Command Load S/W Build
  • Flight Rules Constraints
  • Mag Model
  • TS ENA Model
  • Thermal test at SwRI - 7/15/07
  • MOC I/F ISOC - 9/19-10/9/07
  • Ground system I/F tests
  • Mission PER - 10/24/07
  • Grnd Netwrk Data Flow Test - 12/20/07
  • Test MOC I/F ISOC - 12/20/07 - 1/4/08
  • ISOC/MOC Command Prcess - 1/7-8/08
  • S/W Build 2 (post-cal) - 1/7/08
  • SCB Attitude Determination
  • SWT - May/2008
  • IBEX Ground Seg End-to-End - 5/23/08
  • Rehearsals/tests - April-June/08
  • S/W Build 4 (flight build) - 6/2/08
  • Global Mapping S/W
  • Aliveness test, CEU functional test, HiLo
    Functional test, Initial rampup
  • Web I/F, SOH Database
  • S/W Build 5 (in flight) - 10/15/08
  • Model dependent corrections
  • Flux calculations
  • Partial Results - 12/8/08
  • Survey 6 Months - 1/15/09
  • First mapping publication - 1/22/09
  • Survey 12 months - 7/15/09
  • ISOC S/W Build 6 - 7/15/09
  • Survey 18 months - 1/15/10
  • Survey 24 months - 7/15/10
  • Survey 36 months - 7/15/11
  • Survey 48 months - 7/15/12

41
Payload OperationsCommand Load Validation
  • Software constraint checks for
  • Potentially hazardous commands
  • HV turn-on
  • Large commanded voltage jumps
  • Operational constraints
  • Sensors in standby below 10 RE
  • Sensors off during HPS maneuvers
  • Order of operations
  • Garbled commands
  • Human checks
  • In addition to software checks, MOC and ISOC
    personnel will manually check command loads
    before uplink

42
ABS File
  • An optional input file for Cyclic Redudancy
    Checks (CRC), containing manually created
    commands with absolute timestamps for spacecraft
    or payload maintenance
  • Contains absolutely-timed spacecraft commands
    and/or general timeline elements
  • Two formats available
  • COMMANDS_ONLY is a format containing only
    spacecraft or payload commands
  • Header lines
  • Header lines
  • FORMATCOMMANDS_ONLY
  • BEGIN
  • 2008/10/16T030000.000Zacstart_rts 51 some
    comment
  • 2008/10/16T040000.000Zacnoop some comment
  • END
  • MIXED is a format containing both
    spacecraft/payload commands and other arbitrary
    event names that can trigger a rote expansion
  • Header lines
  • Header lines
  • FORMATMIXED
  • BEGIN

43
Science Tasking File (STF)
  • An optional input file for CRC, generated by the
    ISOC, containing actual spacecraft commands (bus
    or payload) that the ISOC wishes to execute
    during the planning period
  • Format is the same as the Absolute Command File
    (ABS)
  • If STF contains only commands, it can be in the
    COMMANDS_ONLY ABS format
  • If the ISOC wishes to coordinate with Orbital the
    placement of a meta-event onto the timeline in
    the STF with a command set, the MIXED ABS format
    can be used
  • See samples in the ABS file description

44
IBEX-Hi DE Harvesting Comments (1/2)
  • If this simple traversal scheme is used, i.e.,
  • Starting at Energy,Spin,Bin (0,0,0)
  • Traversing by Bin the fastest, then Spin, then
    Energy
  • Then the beginning areas (near (0,0,0)) are
    favored for downlink
  • Possible solution (which favors telemetering
    cells with the least DE)
  • If, after one complete traversal there is
    telemetry available, select and telemeter those
    cells that have only one DE available until all
    those are exhausted or the telemetry cap is
    reached.
  • If the telemetry cap is not reached, choose cells
    with only two DE available and select one of the
    DE for downlink. If downlink still available,
    telemeter the cells with one DE left.
  • If the telemetry cap is not reached, choose cells
    with only three DE available and select one of
    the DE for downlink. Etc, etc.

45
IBEX-Hi DE Harvesting Comments (2/2)
  • Another solution (which favors random selection)
  • If, after one complete traversal there is
    telemetry available, then choose
    (Energy,Spin-Bin) cells at random and apply same
    selection scheme on chosen cell. Repeat until
    downlink cap is reached.
  • Note that energy and spin pool dimensions could
    be collapsed together so that we essentially have
    6 Energy x 60 Spin-bins for 360 cells rather than
    720 cells. We could completely traverse the pool
    twice for this example telemetry cap value of
    720.
  • Must come up with random algorithm. It could
    be seeded with the time or perhaps low-order
    bits of A/D readings.

46
Using the poles to do stuff
  • One of the interesting things that came out of
    today's meeting was an idea Geoff hadto use the
    poles for special payload maintenance operations
    (see below). Since thepoles are so oversampled,
    if we can do these special operations for a
    portion ofeach spin (or every Nth spin) while
    looking at the poles rather than take a chunk
    oftime out of all look directions, it would be
    excellent. We could get the extrameasurements to
    characterize the data sensor performance as
    well as not takingviewtime away from the low
    sampling areas around the equatorial plane.We
    should brainstorm what we could use this for. The
    PLFW design is very flexible(thanks John!) and is
    currently possible to do each of the following
  • Gain testing
  • 1) Noise measurement (I think I'm using 'noise'
    correctly here, but I'm not sure)Turn ESA off
    when looking at poles (between bin X Y) for one
    energy step out ofeach energy sweep. The energy
    step replaced with this noise count can be
    cycledthrough for each energy sweep (0 ESA
    setting would replace step 1 for sweep 1, step2
    for sweep 2, etc...). Initially we had ruled this
    test out because it would cutinto statistics and
    the count rates would be so low that it would not
    give enoughmeaningful info to take the statistics
    hit. We should rethink this application withthis
    new 'pole viewing' approach. (The width of the
    sector for these operationswould also need to
    take into account voltage settling times... we
    are beingover-conservative in our nominal ops
    data processing - throwing out a bin at eachESA
    change.)
  • 2) Pressure measurement Same concept as above,
    but instead of setting the ESA value to 0,
    stepping theelectron rejection voltage in front
    of the collimator down for that sector of thesky.
    This pressure measurement is stepping the e-
    rejection voltage down in a seriesof steps. We
    need to verify that stepping down
    non-sequentially (see V flow below)will give you
    the same results as stepping the e- rejection
    voltage sequentially. ie. (Vnominal (most of
    spin) -gt Vnominal - X (at pole) -gt Vnominal (most
    of spin) -gtVnominal -2X (at pole) -gt
    Vnominal(most of spin) -gt Vnominal -3X(at pole)
    ... ) Anyway, just wanted to make sure this
    discussion doesn't get lost in the fray.
  • Chelle
  • 1. That sounds similar to what we were going to
    do for IBEX-Lo anyway during theiroxygen mode,
    correct?
  • 2. Shouldn't be too hard to DO. I think the
    ramifications on the data productswould need to
    be thought through though -that's really the hard
    part.

47
S/W Maintenance
  • IDL needed
  • GSEOS needed
  • Maestro needed
  • C-programs maintenance
Write a Comment
User Comments (0)
About PowerShow.com
