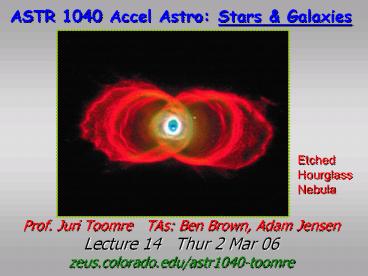

ASTR 1040 Accel Astro Stars Galaxies
Etched Hourglass Nebula

• Prof. Juri Toomre TAs Ben Brown, Adam Jensen
• Lecture 14 Thur 2 Mar 06
• zeus.colorado.edu/astr1040-toomre

2
Today

• Consider red giant (RG I) phase, with H shell
  burning
• Helium flash goes off in shrinking degenerate
  core horizontal branch star with He core
  burning
• Double shell burning (H and He) yields red
  supergiant (RG II), blows off planetary nebula
• Read 18.2 about white dwarfs formed at end of
  evolution of low-mass stars
• Respond to discussion question posted on shapes
  of planetary nebulae
• Monday recitation meets in Duane G116 (computer
  lab) in support of Planet Finder Homework 6
  go there directly

3
More news

• Observatory session write-ups are due soon
  would like all by next Thur 9 March
• Very nice public lecture (free to you) tonight at
  730pm in Fiske planetarium Jason Glenn on
  Revealing galaxy formation in the early universe

4
Clicker Poll of Advice

• How do you take notes (or listen) during
  lectures?
• A. I get most of it by just listening
• B. I write down some notes, then go back to book
  to look things up
• C. I listen, take some notes, then get copies of
  lecture slides from course website
• D. I enjoy talking with my buddies, and they
  tell me later if I missed anything

5
Clicker starbirth what has stuck?

• The vast majority of stars in a newly formed star
  cluster are ________ ?
• A. less massive than the Sun
• B. very high-mass, type O and B stars
• C. red giants
• D. about the same mass as Sun

A.
6
Star Birth Cauldron
NGC 604 in M33 Triangulum
7
What happens to nuclear fusion when the hydrogen
in a stars core runs low?
E.

• A. It stops
• B. It shifts from the core to a shell around the
  core
• C. Other elements start to fuse
• D. The star goes out of balance and becomes a
  red giant
• E. B and D

8
Life track in H-R diagram of solar-mass star Ma
ny meanders, but MS phase longest, red
giant phase(s) shorter, finally white dwarf left
to cool slowly
blow lovely shell
RG II
?
Red Giant I
protostar
white dwarf
ZAMS
9
Overview of what will happen
MS ? Red Giant I ? Horiz Branch ? Red Giant
II (or Supergiant)
RG II
RG I
MS
10
2 Subgiant to Red Giant (first visit) H
burning in shell, makes much more energy
Vast expansion, RG phase lasts 500 MY Huge
convective envelope
11
MS ? subgiant ? red giant
12
MS ? subgiant ? red giant
red giant
MS
Contracting core in red giant gradually becomes
electron degenerate -- what does that mean?
13
Oops! Thermostat is missing in degenerate gas
Could get exciting!
14
Complex aside Degeneracy pressure
15
Degeneracy pressure analogy
Limited quantum mechanical states (exclusion
principle) (see S4.5)
16
3 Helium Flash He core burning --
removes electron degeneracy
? He core burning with thermostat ?
horizontal branch star
17
4 Horizontal branch star He core burning,
H shell burning
Short phase, lasts 50 MY Triple-alpha fusion
3 He ? C
18
Helium flash ? He fusion to C in core
(horizontal branch)
19
H-R diagram of globular cluster
Discussion What does it tell us? Why is it
useful?
20
5. Red Supergiant
Double-shell burning of H and He
Phase could be very short if He burning is
erratic (unstable) -- then lasts only a few MY,
and blows off outer shells
21
Sun in its far future 5 BY
Thermal pulses in red supergiant blow off outer
shells
22
6. Planetary Nebula
Outer shells of red supergiant puffed
off Great pictures!
Naked white dwarf emerges
23
Ring Nebula
24
NGC 6751
25
Spirograph
26
Life after brief planetary nebula stage
. Hot central core emerges as WHITE DWARF
Ring Nebula
27
7. White Dwarf
Inert C core, He H shells electron
degeneracy pressure holds it up
Very dense, size of Earth max mass of 1.4 MSUN
