Title: Inverse Problems for Electrodiffusion


1

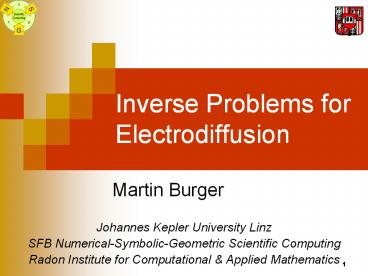

Inverse Problems for Electrodiffusion
  • Martin Burger

Johannes Kepler University Linz SFB
Numerical-Symbolic-Geometric Scientific
Computing Radon Institute for Computational
Applied Mathematics
2
Collaborations
  • Heinz Engl, Marie-Therese Wolfram (Linz)
  • Peter Markowich (Vienna)
  • Rene Pinnau (Kaiserslautern)
  • Michael Hinze (Dresden)

3
Identification
  • For most systems there are some parameters that
    cannot be determined directly (Parameter to be
    understood very general, could also be functions
    or even the system geometry appearing in the
    model)
  • These parameters have to be determined by
    indirect measurements
  • Measurements and parameters related by
    simulation model. Fitting model to data leads to
    mathematical optimization problem

4
Optimal Design
  • Modern engineering and increasingly biology is
    full of advanced design problems, which one could
    / should tackle as optimization tasks
  • Ad-hoc optimization based on insight into the
    system becomes more and more difficult with
    increasing system complexity and decreasing
    feature size
  • Alternative approach by numerical simulation and
    mathematical optimization techniques

5
Inverse Problems
  • Such optimal design and identification problems
    are usually called inverse problems (reverse
    engineering, inverse modeling, )
  • Forward problem given the design variables /
    parameters, perform a model simulationUsed to
    predict data
  • Inverse problem used to relate model to data

6
Inverse Problems
  • Solving inverse problems means to look for the
    cause of some effect
  • Optimal design look for cause of desired effect
  • Identification look for the cause of observed
    effect
  • Reversing the causality leads to ill-posedness
    two different causes can lead to almost the same
    effect. Leads to difficulties in inverse problems

7
Ill-Posed Problems
  • Ill-posedness is of particular significance
    since dataare not exact (measurement and model
    errors)
  • Ill-posedness can have different consequences
  • Non-existence of solutions
  • Non-uniqueness of solutions
  • Unstable dependence on data
  • To compute stable approximations of the
    solution, regularization methods have to be used

8
Regularization
  • Basic idea of regularization replacement of
    ill-posed problem by parameter-dependent family
    of well-posed problems
  • Example linear equation
    replaced by (Tikhonov regularization)
  • Regularization parameter a controls smallest
    eigenvalue and yields stability

9
Inverse Problems for PNP-Systems
  • Identification or Design of parameters in
    coupled systems of Poisson and Nernst-Planck
    equations, describing transport and diffusion of
    charged particles
  • Parameters are usually related to a permanent
    charge density
  • Classical application semiconductor dopant
    profiling

10
Semiconductor Devices
  • MOSFET / MESFET

11
Dopant Profiling
  • Typical inverse problems
  • Design the device doping profile to optimize the
    device characteristics
  • Identify the device doping profile from
    measurements of the device characteristics
  • Optimal design used to improve manufacturing,
    identification used for quality control

12
Mathematical Model
  • Stationary Drift Diffusion Model
  • PDE system for potential V, electron density n
    and hole density p
  • in W (subset of R2)
  • Doping Profile C(x) enters as source term

13
Boundary Conditions
Boundary of W homogeneous Neumann boundary
conditions on GN (insulated parts) and on
Dirichlet boundary GD (Ohmic contacts)
14
Device Characteristics
  • Measured on a contact G0 part of GD
  • Outflow current density
  • Capacitance

15
Scaled Drift-Diffusion System
After (exponential) transform to Slotboom
variables (ue-V n, p eV p) and
scaling Similar transforms and scaling for
boundary conditions
16
Scaled Drift-Diffusion System
  • Similar transforms and scaling for boundary
  • Conditions
  • Essential (possibly small) parameters
  • - Debye length l
  • - Injection Parameter d
  • Applied Voltage U

17
Scaled Drift-Diffusion System
Inverse Problem for full model ( scale d 1)
18
Optimization Problem
Take current measurements on a contact G0
in the following Least-Squares Optimization
minimize for N large
19
Optimization Problem
  • Due to ill-posedness, we need to regularize,
    e.g.
  • C0 is a given prior (a lot is known about C)
  • Problem is of large scale, evaluation of F
    involves N solves of the nonlinear PNP systems

20
Numerical Solution
  • If N is large, we obtain a huge optimality
    system of 2(K1)N1 equations (6N1 for DD)
  • Direct discretization is challenging with
    respect to memory consumption and computational
    effort
  • If we do gradient method, we can solve 3 x 3
    subsystems, but the overall convergence is slow

21
Sensitivies
Define Lagrangian
22
Sensitivies
Primal equations with N different boundary
conditions
23
Sensitivies
Dual equations
24
Sensitivies
Boundary conditions on contact G0 homogeneo
us boundary conditions else
25
Sensitivies
Optimality condition (H1 - regularization) wi
th homogeneous boundary conditions for C - C0
26
Numerical Solution
Structure of KKT-System
27
Numerical Solution
3 x 3 Subsystems with
28
Close to Equilibrium
For small applied voltages one can use
linearization of DD system around U0 Equilibrium
potential V0 satisfies Boundary conditions
for V0 with U 0 ? one-to-one relation between
C and V0
29
Linearized DD System
  • Linearized DD system around equilibrium(first
    order expansion in e for U e F )
  • Dirichlet boundary condition V1 - u1 v1 F
    depends only on V0
  • Identify V0 (smoother !) instead of C

30
Advantages of Linearization
  • Linearization around equilibrium is not strongly
    coupled (triangular structure)
  • Numerical solution easier around equilibrium
  • Solution is always unique close to equilibrium
  • Without capacitance data, no solution of
    Poisson equation needed

31
Advantages of Linearization
  • Under additional unipolarity (v 0), scalar
    elliptic equation the problem of identifying
    the equilibrium potential can be rewritten as the
    identification of a diffusion coefficient a eV0
  • Well-known problem from Impedance Tomography
  • Caution
  • The inverse problem is always non-linear, even
    for the linearized DD model !

32
Numerical Tests
  • Test for a P-N Diode
  • Real Doping Profile Initial Guess

33
Numerical Tests
  • Different Voltage Sources

34
Numerical Tests
  • Reconstructions with first source

35
Numerical Tests
  • Reconstructions with second source

36
The P-N Diode
  • Simplest device geometry, two Ohmic contacts,
    single p-n junction

37
Identifying P-N Junctions
  • Doping profiles look often like a step function,
    with a single discontinuity curve G (p-n
    junction)
  • Identification of p-n junction is of major
    interest in this case
  • Voltage applied on contact 1, device
    characteristics measured on contact 2

38
Results for C0 1020m-3
39
Results for C0 1021m-3
40
Instationary Problem
Similar to problem with many measurements, but
correlation between the problems (different
time-steps) More data (time-dependent
functions) BFGS for optimization problem
(Wolfram 2005)
41
Unipolar Diode
Time-dependent reconstruction, 10 data noise
42
Unipolar Diode NNN
Current Measured Capacitance Measured
43
Optimal Design
  • Similar problems in optimal design
  • Typical goal maximize / increase current flow
    over a contact, but keep distance to reference
    state small
  • Again modeled by minimizing a similar objective
    functional

44
Optimal Design
  • Increase of currents at different voltages,
    reference state C0
  • Maximize drive current at drive voltage U

45
Numerical Result p-n Diode
Ballistic pn-diode, working point
U0.259V Desired current amplification 50, I
1.5 I0 Optimized doping profile, e
10-2,10-3
46
Numerical Result p-n Diode
Optimized potential and
CV-characteristic of the diode, e 10-3
47
Numerical Result p-n Diode
Optimized electron and hole density in
the diode, e 10-3
48
Numerical Result p-n Diode
Objective functional, F, and S during
the iteration, e 10-2,10-3
49
Numerical Result MESFET
Metal-Semiconductor Field-Effect Transistor
(MESFET) Source U0.1670 V, Gate U 0.2385
V Drain U 0.6670 V Desired current
amplification 50, I 1.5 I0
50
Numerical Result MESFET
Finite element mesh 15434 triangular elements
51
Numerical Result MESFET
Optimized Doping Profile (Almost piecewise
constant initial doping profile)
52
Numerical Result MESFET
Optimized Potential V
53
Numerical Result MESFET
Evolution of Objective, F, and S
54
Download and Contact
