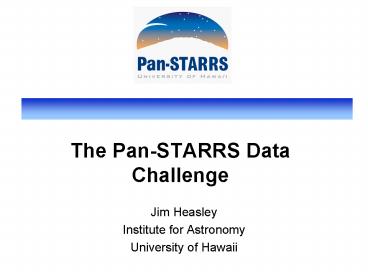

The Pan-STARRS Data Challenge

• Jim Heasley
• Institute for Astronomy
• University of Hawaii

2
What is Pan-STARRS?

• Pan-STARRS - a new telescope facility
• 4 smallish (1.8m) telescopes, but with extremely
  wide field of view
• Can scan the sky rapidly and repeatedly, and can
  detect very faint objects
• Unique time-resolution capability
• Project led by IfA with help from Air Force, Maui
  High Performance Computer Center, MITs Lincoln
  Lab.
• The prototype, PS1, will be operated by an
  international consortium

3
Pan-STARRS Overview

• Pan-STARRS observatory specifications
• Four 1.8m R-C corrector
• 7 square degree FOV - 1.4Gpixel cameras
• Sited in Hawaii
• A ? 50
• R 24 in 30 s integration
• -gt 7000 square deg/night
• All sky deep field surveys in g,r,i,z,y

• Time domain astronomy
• Transient objects
• Moving objects
• Variable objects
• Static sky science
• Enabled by stacking repeated scans to form a
  collection of ultra-deep static sky images

4
The Published Science Products Subsystem
5
(No Transcript)
6
(No Transcript)
7
Front of the Wave

• Pan-STARRS is only the first of a new generation
  of astronomical data programs that will generate
  such large volumes of data
• SkyMapper, southern hemisphere optical
• VISTA, southern hemisphere IR survey
• LSST, an all sky survey like Pan-STARRS
• Eventually, these data sets will be useful for
  data mining.

8
(No Transcript)
9
PS1 Data Products

• Detectionsmeasurements obtained directly from
  processed image frames
• Detection catalogs
• Stacks of the sky images source catalogs
• Difference catalogs
• High significance (gt 5? transient events)
• Low significance (transients between 3 and 5? )
• Other Image Stacks (Medium Deep Survey)
• Objectsaggregates derived from detections

10
Whats the Challenge?

• At first blush, this looks pretty much like the
  Sloan Digital Sky Survey
• BUT
• Size Over its 3 year mission, PS1 will record
  over 150 billion detections for approximately 5.5
  billion sources
• Dynamic Nature new data will be always coming
  into the database system, for things weve seen
  before or new discoveries

11
How to Approach This Challenge

• There are many possible approaches to deal with
  this data challenge.
• Shared what?
• Memory
• Disk
• Nothing
• Not all of these approaches are created equal,
  either in cost and/or performance (DeWitt Gray,
  1992, Parallel Database Systems The Future of
  High Performance Database Processing).

12
Conversation with the Pan-STARRS Project Manager

• Jim Tom, what are we going to do if the
  solution proposed by TBJD is more than you can
  afford?
• Tom Jim, Im sure youll think of something!
• Not long after that, TBJD did give us a
  hardware/software plan we couldnt afford. Not
  long after, Tom resigned from the project to
  pursue other activities
• The Pan-STARRS project teamed up with Alex and
  his database team at JHU

13
Building upon the SDSS Heritage

• In teaming with the team at JHU we hoped to build
  upon the experience and software developed for
  the SDSS.
• A key question was how could we scale the system
  to deal with the volume of data expected from PS1
  (gt 10X SDSS in the first year alone).
• The second key question, could the system keep up
  with the data flow.
• The heritage is more one of philosophy than
  recycled software, as to deal with the challenges
  posed by PS1 weve had to generate a great deal
  of new code.

14
The Object Data Manager

• The Object Data Manager (ODM) was considered to
  be the long pole in the development of the PS1
  PSPS.
• Parallel database systems can provide both data
  redundancy and spreading very large tables that
  cant fit on a single machine over multiple
  storage volumes.
• For PS1 (and beyond) we need both.

15
Distributed Architecture

• The bigger tables will be spatially partitioned
  across servers called Slices
• Using slices improves system scalability
• Tables are sliced into ranges of ObjectID, which
  correspond to broad declination ranges
• ObjectID boundaries are selected so that each
  slice has a similar number of objects
• Distributed Partitioned Views glue the data
  together

16
Distributed Architecture

• The bigger tables will be spatially partitioned
  across servers called Slices
• Using slices improves system scalability
• Tables are sliced into ranges of ObjectID, which
  correspond to broad declination ranges
• ObjectID boundaries are selected so that each
  slice has a similar number of objects
• Distributed Partitioned Views glue the data
  together

17
Design Decisions ObjID

• Objects have their positional information encoded
  in their objID
• fGetPanObjID (ra, dec, zoneH)
• ZoneID is the most significant part of the ID
• objID is the Primary Key
• Objects are organized (clustered indexed) so
  nearby objects in the sky are stored on disk
  nearby as well
• It gives good search performance, spatial
  functionality, and scalability

18
Pan-STARRS Data Flow
19
Pan-STARRS Data Layout
Image Pipeline
L1 Data
csv
csv
csv
csv
csv
csv
L2 Data
Load-Merge Nodes
LOAD
Load Merge 1
Load Merge 2
Load Merge 3
Load Merge 4
Load Merge 5
Load Merge 6
COLD
S 1
S 2
S 3
S 4
S 5
S 6
S 7
S 8
S 9
S 10
S 11
S 12
S 13
S 14
S 15
S 16
Slice Nodes
Slice 1
Slice 2
Slice 3
Slice 4
Slice 5
Slice 6
Slice 7
Slice 8
HOT
S 1
S 2
S 3
S 4
S 5
S 6
S 7
S 8
S 9
S 10
S 11
S 12
S 13
S 14
S 15
S 16
WARM
s 16
s 3
s 2
s 5
s 4
s 7
s 6
s 9
s 8
s 11
s 10
s 13
s 12
s 15
s 14
s 1
Main
Main
Head 2
Head 1
Head Nodes
Distributed View
20
The ODM Infrastructure

• Much of our software development has gone into
  extending the ingest pipeline developed for SDSS.
• Unlike SDSS, we dont have campaign loads but a
  steady from of data from the telescope through
  the Image Processing Pipeline to the ODM.
• We have constructed data workflows to deal with
  both the regular data flow into the ODM as well
  as anticipated failure modes (lost disk, RAID,
  and various severer nodes).

21
Pan-STARRS Object Data Manager Subsystem
21
22
What Next?

• Will this approach scale to our needs?
• PS1 yes. But, we already see the need for
  better parallel processing query plans.
• PS4 unclear! Even though Im not from Missouri,
  show me! One year of PS4 produces gt data
  volume than the entire PS1 3 year mission!
• Cloud computing?
• How can we test issues like scalability without
  actually building the system?
• Does each project really need its own data
  center?
• Having these databases in the cloud may greatly
  facilitate data sharing/mining.

23
Finally, Thanks

• To Alex for stepping in, hosting the development
  system at JHU, and building up his core team to
  construct the ODM, especially
• Maria Nieto-Santisteban
• Richard Wilton
• Susan Werner
• And at Microsoft to
• Michael Thomassy
• Yogesh Simmhan
• Catharine van Ingen
