Fail-Stop Processors

1

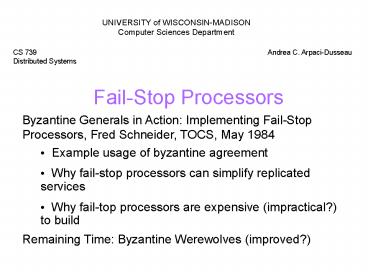

Fail-Stop Processors
UNIVERSITY of WISCONSIN-MADISONComputer Sciences
Department
CS 739Distributed Systems
Andrea C. Arpaci-Dusseau

• Byzantine Generals in Action Implementing
  Fail-Stop Processors, Fred Schneider, TOCS, May
  1984
• Example usage of byzantine agreement
• Why fail-stop processors can simplify
  replicated services
• Why fail-top processors are expensive
  (impractical?) to build
• Remaining Time Byzantine Werewolves (improved?)

2
Motivation

• Goal Build systems that continue to work in
  presence of component failure
• Difficulty/cost of building those systems depends
  upon how components can fail
• Fail-stop components make building reliable
  systems easier than components with byzantine
  failures

3
Fail-Stop Processors

• What is a failure?
• Output (or behavior) that is inconsistent with
  specification
• What is a Byzantine failure?
• Arbitrary, even malicious, behavior
• Components may collude with each other
• Cannot necessarily detect output is faulty
• What is a fail-stop processor?
• Halts instead of performing erroneous
  transformations
• Others can detect halted state
• Others can access uncorrupted stable storage even
  after failure

4
Questions to Answer

• What are the advantages of fail-stop processors?
• 2) Real processors are not fail-stop
• Can we build one?
• How can we build an approximation of one?
• 3) Approximations of fail-stop processors are
  expensive to build
• Under what circumstances is replicated service
  with fail-stop processors better?

5
1) Distributed State Machine

• Common approach for building a reliable system
• Idea Replicate faulty servers, coordinate client
  interactions with replicas

input sequence
State machine
Client
Byzantine agreement
R
R
R
output
Combine outputs
T-fault tolerant Satisfies specification as long
as no more than t components fail Failure model
of components determines how many replicas, R,
are needed and their interactions
6
How to build t-fault tolerant state machine?

• Inputs
• Key All replicas receive and process same
  sequence of inputs
• 1) Agreement Every nonfaulty replica receives
  same request (interactive consistency or
  byzantine agreement)
• 2) Ordering Every nonfaulty replica processes
  requests in same order (logical clocks)
• Outputs

Byzantine Fail-Stop
Combine output? majority any
Number of replicas? 2t1 t1
7
2) Building a Fail-Stop Processor

• Must provide stable storage
• Volatile Lost on failure
• Stable
• Not affected (lost or corrupted) by failure
• Can be read by any processor
• Benefit Recover work of failed process
• Drawback Minimize interactions since slow
• Can only build approximation of fail-stop
  processor
• Finite hardware -gt Finite failures could disable
  all error detection hardware
• k-fail-stop processor behaves fail-stop unless
  k1 or more failures

8
Implementation of k-FSP Overview

• Two components
• k1 p-processes (program)
• 2k1 s-processes (storage)
• Each process runs on own processor, all connected
  with network
• P-Processes (k1)
• Each runs program for state machine
• Interacts with s-processes to read and write data
• If any fail (if any disagreement), then all STOP
• Cannot necessarily detect k1 failures
• S-Processes (2k1)
• Each replicates contents of stable storage for
  this FSP
• Provides reliable data with k failures (cannot
  just stop)
• Detects disagreements/failures across p-processes
• How???

9
Interactive Consistency Requirements

• IC1. If nonfaulty p-process, then every
  nonfaulty s-process receives request within ?
  seconds (as measured on s-process clock)
• IC2. Non-faulty s-processes in same k-FSP agree
  on every request from p-process j
• S-processes must agree even when p-process is
  faulty
• To provide IC1 and IC2
• Assuming can authenticate sender of messages,use
  signed message (SM) protocol for byzantine
  agreement
• Need just k1 processes for agreeement
• IC3. For each k-FSP, clocks of all p-processes
  are synchronized
• All non-faulty p-processes must send requests at
  same time to s-processes

10
FSP Algorithm Details Writes

• Each p-process, on a write
• Broadcast write to all s-processes
• Byzantine agreement across all s-processes (all
  s-processes must agree on same input value from
  particular p-process)
• Each s-process, on a write (Fig 1)
• Ensure each p-process writes same value and
  receive within time bound
• Initial code Handle messages after at least time
  ? has transpired since receipt (every s-process
  should receive by then)
• If receive write request from all k1 p-processes
  (M k1), then update value in stable storage
• If not, then halt all p-processes
• Set failed variable to true
• Do not allow future writes

11
FSP Algorithm Details Reads

• Each p-process, on a read
• Broadcast request to all s-processes
• Use result from majority (k1 out of 2k1)
• Can read from other FSPs as well
• Useful if FSP failed and re-balancing work
• Each p-process, determine if halted/failed
• Read failed variable from s-process (use
  majority)

12
FSP Example

• k2, SM code ba1 How many p and s
  processes?

p
a 6 b failed 0
s

• How do p-processes read a?
• Broadcast request to each s-process
• 2) Each s-process responds to read request
• 3) Each p-process uses majority of responses
  from s-process

13
FSP Example

• k2, SM code ba1

p
a b failed
s

• How do p-processes read a?
• What if 2 s-processes fail?
• E.g., think a5?
• What if 3 s-processes fail?

14
FSP Example

• k2, SM code ba1

p
a b failed
s

• How do p-processes write b?
• Each p-process j performs byzantine agreement
  using signed message protocol SM(2) across
  s-processes
• Each s-process must agree on what p-process j is
  doing, even if j is faulty
• Each s-process looks at requests after time delta
  elapsed
• If see same write from all k1 processes, perform
  write
• Otherwise, halt all p-processes forbid future
  writes

15
FSP Example

• k2, SM code ba1

p
a b failed
s

• How do p-processes write b?
• What if 1 p-process (or network) is very slow?
• What if 1 p-process gives incorrect request to
  all s-processes?
• What if 1 p-process gives incorrect request to
  some?
• Byzantine agreement catches All s-processes
  agree that p-process is faulty (giving different
  requests) agree to treat it similarly
• When see doesnt agree with other p-processes,
  will halt
• What if 3 p-processes give bad result?

16
3) Higher-Level Example

• Goal Service handling k faults N nodes for
  performance
• Solution Use Nk k-failstop processors
• Example N2, k3

• What happens if
• 3 p-processes in FSP0 fail? 4 p-processes in FSP0
  fail?
• 1 p-process in FSP0, FSP1, and FSP2 fail? also in
  FSP3?
• 2 p-processes in FSP0, FSP1, and FSP2 fail?
• 1 s-process in SS0 fails? also in SS1, SS2, and
  SS3?
• 4 s-processes in SS0 fail?

17
Should we use Fail Stop Processors?

• Metric Hardware cost for state machines
• Fail-stop components
• Worst-case (assuming 1 process per processor)
• (Nk) 2k1 k1 (Nk) (3k2) processors
• Best-case (assuming s-processes from different
  FSP share same processor)
• (Nk)(k1) (2k1) processors
• Byzantine components
• N (2k1)
• Fail-stop can be better if s-processes share and
  Ngtk
• Metric Frequency of byzantine agreement protocol
• Fail-Stop On every access to stable storage
• Byzantine On every input read
• Probably fewer input reads

18
Summary

• Why build fail-stop components?
• Easier for higher layers to model and deal with
• Matches assumptions of many distributed protocols
• Why not?
• Usually more hardware
• Usually more agreements needed
• Higher-levels may be able to cope with slightly
  faulty components
• Violates end-to-end argument
• Conclusion Probably shouldnt assume fail-stop
  components

19
Byzantine Werewolves

• Previous Too easy for villagers to identify
  werewolves
• Villager A had reliable information that Z was
  werewolf
• Villager B could validate that A was villager
• Hard for Z to lie that C was werewolf, because D
  could have checked C too
• Signed Protocol Many could hear what one said
• Difficult for werewolves to tell different lies
  to others
• Have to tell everyone same thing
• New Changes to give more advantage to werewolves
• Unknown number of werewolves (1 lt w lt 1/2 N)
• Night Werewolves convert multiple villagers to
  wolves (1 lt v lt w)
• Key Info told by moderator will then be stale
  and wrong!
• Day Villagers can vote to lynch multiple victims

20
Byzantine-Werewolf Game Rules

• Everyone secretly assigned as werewolf or
  villager
• W werewolves, rest are seeing villagers
• I am moderator
• Night round (changed order)
• Close your eyes make noises with one hand to
  hide activity
• For all NAME, open your eyes Pick someone to
  ask about
• Useless for Werewolves, but hides their identity
• Point to another player
• Moderator signs thumbs up for werewolf, down for
  villager
• NAME, close your eyes
• Werewolves, open your eyes W can see who is
  who
• Werewolves, pick villagers to convert
• Moderator picks secret number between 1 and W
• Silently agree on villagers by pointing
• Moderator taps converts on shoulder should open
  eyes to see other werewolves
• Werewolves, close your eyes

21
Rules Day Time

• Day Time Everyone open your eyes its daytime
• Agreement time Everyone talks and votes on who
  should be decommissioned
• Villagers try to decommission werewolves
• Werewolves try to trick villagers with bad info
• Someone must propose who should be killed
• Vote until kill villager or no more proposals or
  no majority
• Werewolves really spread at night, so large
  incentive to kill as many as possible now
• Moderator Uses majority voting to determine who
  is decommissioned Okay, NAME is dead
• Person is out of game (cant talk anymore) and
  shows card
• Repeat cycle until All werewolves dead OR
  werewolves gt villagers
