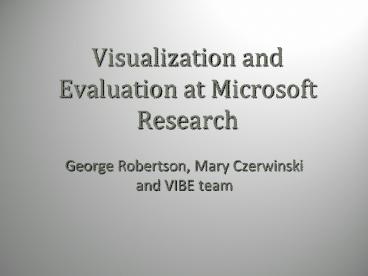

Title: Visualization and Evaluation at Microsoft Research


1
Visualization and Evaluation at Microsoft
Research
  • George Robertson, Mary Czerwinski and VIBE team

2
Visualization Benefits
  • Visualization helps deal with info overload
  • Synthesize meaning from multiple data sources
  • Large volume of dynamically changing data
  • Identify topics and trends
  • Identify relationships along multiple dimensions
  • Must evaluate against existing techniques

3
Visualization in Microsoft Products
  • Data Visualization
  • Excel charting
  • Information Visualization
  • Basic hierarchy visualization TreeView
  • Microsoft Business Solutions
  • BizTalk Server

4
Visualization Research Categories Information
Management
  • Data Mountain (UIST98)
  • Photo Mountain (WinHEC 2001)
  • DateLens (CHI 2003)
  • FacetMap (AVI 2006)
  • FaThumb (CHI 2006)
  • Principles leverage spatial memory, animation,
    space-filling for scaling, provide tools for
    personalization

5
Document ManagementData Mountain (UIST98)
  • Size is strongest cue
  • 26 faster than IE4
  • After 6 months, no performance change
  • Images help, but not required
  • Faster retrieval when similar pages are
    highlighted

Subject Layout of 100 Pages
6
Evaluation
  • Wanted to test the spatial memory hypothesis
  • Also wanted to know what the influence of other
    factors were
  • Thumbnail image
  • Audio cues
  • Text summaries

7
Method
  • Gave subjects a cue to look for after they
    arranged their Data Mountain
  • Cue either had text summary, a thumbnail, an
    audio cue or all 3
  • Time to retrieve the right page, number of
    misses were dependent measures
  • After 6 months, had them do it again
  • This time, 50 of the trails had the thumbnail
    images turned off!

8
Calendar VisualizationDatelens (CHI 2003)
  • With Ben Bederson _at_ U. Maryland
  • Fisheye representation of dates
  • Compact overviews
  • User control over the view
  • Integrated search (keyword)
  • Enables overviews, fluid navigation to discover
    patterns and outliers
  • Integrated with outlook

9
Evaluation
  • First, prototyped on desktop to perform formative
    evaluation but also tested against existing UI
  • Next built onto Pocket PC
  • Gave to PPC owners for 3 days use
  • Performed benchmark tasks with them on 4th day,
    satisfaction ratings over all 4 days

10
Benchmark Study
  • DateLens v. Microsofts Pocket PC 2002
  • Goals
  • 1st iteration of UI with potential users
  • to compare its overall usability against an
    existing product
  • Marys calendar, seeded with artificial calendar
    events, utilized

11


Figure 7 Screen shots of the Microsoft Pocket PC
Calendar program that was used in the study
showing day, week, month, and year views.
12
Methods
  • 11 knowledge workers (5 F)
  • All experienced PC, not PDA users
  • 11 isomorphic browsing tasks on each calendar
  • All conditions counterbalanced
  • All tasks had deadline of 2 minutes
  • Find the dates of specific calendar events (e.g.,
    birthdays)
  • Determine how many Mondays a month contained
  • View all bdays for the next 3 months
  • Task times, success rate, verbal protocols, user
    satisfaction and preference

13
ResultsTask Times
  • Tasks were performed faster using DateLens,
    F(1,8)3.5, p.08
  • Avg49 v. 55.8 secs for the Pocket PC
  • Complex tasks significantly harder, plt.01, but
    handled reliably better by DateLens (task x
    calendar interaction), p.04

14
ResultsTask Times
15
Task Success
  • Tasks were completed successfully significantly
    more often using DateLens (on average, 88.2 v.
    76.3 for the PPC, plt.001.
  • In addition, there was a significant main effect
    of task, plt.001.
  • For the most difficult task (11), no participant
    using the Pocket PC completed the task
    successfully.

16
Task Success
17
Usability Issues
  • Many users disliked the view when more than 6
    months were shown
  • Concerns about the readability of text, needs to
    be customizable
  • Wanted more control about how weeks were viewed
    (e.g., start with Sunday or Monday?)
  • Needed better visual indicators of conflicts for
    both calendars, e.g., red highlights and/or a
    conflicts filter

18
FacetMapFaceted Search Results of Digital Bits
  • Meant to use metadata of your digital stuff to
    aid in browsing
  • Abstract, scalable, space-filling
  • Visual more than textual
  • Study showed favored over existing techniques for
    browsing tasks

19
Small Size
20
Large Size (Wall Display)
21
Evaluation
  • Wanted to test against textual search UI
    (existing system)
  • Needed to use both text search and browse at
    various levels of depth
  • Targeted Find the earliest piece of email Gordon
    received from Jim Gemmell (text search for
    Gemmell).
  • Browse Name a document that Gordon modified in
    the 3rd week of May, 2000.
  • Also, needed to test search for different kinds
    of dimension (file type, date, people, etc.)

22
The Text Baseline
23
Results
Question FacetMap Memex
Mental Demand 4.0 (1.8) 4.3 (1.6)
Physical Demand 3.6 (2.1) 3.6 (1.6)
System Response Time 4.8 (1.4) 5.7 (1.1)
Satisfaction 5.6 (1.4) 5.4 (0.8)
Preference over Existing Techniques 4.9 (1.2) 5.2 (1.4)
Browsing Support 5.9 (0.9) 5.9 (0.9)
Text Search Support 5.9 (1.4) 5.3 (0.8)
Aesthetic Appeal 5.3 (1.3) 4.1 (1.5)
24
Visualization Research Categories Task Management
  • Scalable Fabric (WinHEC 2003)
  • Clipping Lists (summer 2005)
  • Change Borders (summer 2005)
  • Principles leverage spatial memory and
    periphery to reduce clutter and improve
    glancability
  • Users stay in the flow of their tasks longer,
    switch more optimally

25
Task ManagementScalable Fabric (WinHEC 2003)
  • Beyond Minimization
  • Manage Windows tasks using natural human skills
  • Central focus area
  • Periphery windows scaled
  • Cluster of windows task
  • Works on variety of displays
  • Download available Aug. 2005 5000 downloads in
    1st 2 months

26
Evaluation
  • Similar to TG, users lay out tasks
  • Simulate task switching
  • Compare to TaskBar
  • Also, 3 weeks real usage satisfaction

27
Visualization Research Categories Improved
Productivity Readability
  • Clipping Lists and Change Borders
  • Principles remove content of less importance to
    get more info on the screen, reduce occlusion for
    readability

28
Study compare abstraction techniques
  • Change detection
  • signals when a change has occurred
  • Semantic content extraction
  • pulling out and showing the most relevant content
  • Scaling
  • shrunken version of all the content
  • ?Which will most improve multitasking efficiency?

29
Our Designs
30
Study Design
no semantic content extraction semantic content extraction
no change detection
change detection
31
Comparing Tradeoffs
no semantic content extraction semantic content extraction
no change detection spatial layout no legible content most relevant task info detailed visuals / text
change detection spatial layout simple visual cue for change limited info most relevant task info simple visual cue for change
32
User Study Participants
  • 26 users from the Seattle area (10 female)
  • moderate to high experience using computers and
    Microsoft Office-style applications

33
User Study Tasks
  • Four tasks designed to mimic real world tasks
  • Quiz - wait for modules to load
  • Uploads - wait for documents to upload
  • Email - wait for quiz answers and upload
    task documents to arrive
  • Puzzle - high-attention task done while
    waiting

34
Quiz
35
User Study Tasks
  • Four tasks designed to mimic real world tasks
  • Quiz - wait for modules to load
  • Uploads - wait for documents to upload
  • Email - wait for quiz answers and upload
    task documents to arrive
  • Puzzle - high-attention task done while
    waiting

36
Uploads
37
User Study Tasks
  • Four tasks designed to mimic real world tasks
  • Quiz - wait for modules to load
  • Uploads - wait for documents to upload
  • Email - wait for quiz answers and upload
    task documents to arrive
  • Puzzle - high-attention task done while
    waiting

38
User Study Tasks
  • Four tasks designed to mimic real world tasks
  • Quiz - wait for modules to load
  • Uploads - wait for documents to upload
  • Email - wait for quiz answers and upload
    task documents to arrive
  • Puzzle - high-attention task done while
    waiting

39
Puzzle
40
User Study Tasks
  • Four tasks designed to mimic real world tasks
  • Quiz - wait for modules to load
  • Uploads - wait for documents to upload
  • Email - wait for quiz answers and upload
    task documents to arrive
  • Puzzle - high-attention task done while
    waiting

41
User Study Setup
right monitor
left monitor
42
Measures
  • Overall performance
  • task duration
  • Accuracy of task resumption timing
  • time to resume task(e.g., time between upload
    finishing user clicking on upload tool)
  • Task flow
  • number of task switches
  • Recognition of windows and reacquisition of task
  • number of window switches within a task
  • User satisfaction
  • survey after each trial the lab session

43
Results overall performance
  • Clipping Lists ? faster task times
  • Change Borders ? no significant improvement

44
Results task resumption timing
  • Clipping Lists ? trend toward more accurate task
    resumption timing

45
Results task flow
  • Clipping Lists ? reduced switches
  • Change Borders ? increased switches for SF

46
Results recognition reacquisition
  • Clipping Lists ? reduced window switches
  • Change Borders ? no significant improvement

47
Results user satisfaction
  • Clipping List UIs
  • ? rated better than those without
  • Change Border UIs
  • ? rated better than those without
  • Preferred UI
  • 17 Clipping Lists Change Borders
  • 4 Scalable Fabric Change Borders
  • 2 Clipping Lists
  • 2 Scalable Fabric

48
Results Summary
  • Clipping Lists were most effective for all
    metrics
  • Overall performance speed
  • Accuracy of task resumption timing (not
    significant)
  • Task flow
  • Recognition of windows reacquisition of task
  • User satisfaction
  • Improvements are cumulative, adding up to a
    sizeable impact on daily multitasking
    productivity
  • Clipping Lists
  • ? 29 seconds faster on average
  • Clipping Lists Change Borders
  • ? 44 seconds faster on average

49
Results semantic content extraction
  • benefits task flow, resumption timing, and
    reacquisition
  • improves multitasking performance more than
    either change detection or scaling
  • ?Implication for design of peripheral interfaces
    that support multitasking
  • providing enough relevant task info is more
    important than very simplistic designs

50
Visualization Research Categories Software
Visualization
  • FastDASH
  • Principles leverage usage data to expose most
    important, relevant content to improve
    discoverability

51
FastDASH
  • Peripheral display for showing a dev team who has
    what checked out of a code base
  • Shows individual team members, what theyve
    checked out, what method theyre in, what theyve
    changed, where they may be blocked and need help
  • Display devotes more screen real estate to bigger
    files in code base

52
Evaluation
  • Developed coding scheme to quickly document
    communication and display usage behaviors of team
  • Code 2 days w/o FastDASH
  • Insert FastDASH display on 3rd day
  • Code 2 days w/FastDASH display
  • Pre- and post- satisfaction and situation
    awareness surveys

53
Reduction in Use of Shared Artifacts
54
Increase in Certain Communications
55
Visualization Research Categories Large
Information Spaces
  • Polyarchy (CHI 2002)
  • PaperLens (InfoVis 2004, CHI 2005)
  • Schema Mapper (CHI 2005)
  • Treemap Vis of Newsgroup Communities
  • Principles support interactive data exploration
    through highlighting, transparency, animation and
    focus context techniques

56
Polyarchy Visualization (CHI 2002)
  • Multiple Intersecting Hierarchies
  • Show multiple hierarchies
  • Show other relationships
  • Search results in context

57
Evaluation
  • Systematically explored each potential animation
    speed and transition style
  • Also, keystroke evaluation

58
Topic Trends VisualizationPaperLens (InfoVis
2004, CHI 2005)
  • Understanding a conference
  • InfoVis (8 years)
  • CHI (23 years)
  • Helps understand
  • Topic evolution
  • Frequently published authors
  • Frequently cited papers/authors
  • Relationship between authors

59
Evaluation
  • Formative evaluation with target end users
  • Used the information visualization contest
    questions to make sure the prototype satisfied
    the requirements
  • Noted usability issues and redesigned
  • Scaled up for CHI, required massive changes

60
Schema Mapper (CHI 2005)
  • Current techniques fail for large schemas/maps

61
Schema Mapper
  • Emphasize relevant relationships
  • De-emphasize other relationships

62
Evaluation
  • Systematically explored each new feature addition
    against shipping product doing mapping tasks
  • Used real schema map designers

63
Goals for Future
  • Visual representations that
  • Exploit human perception, pattern matching and
    spatial memory
  • Summarize and scale to very large datasets
  • Use animated transitions to help retain context
  • Scale to a variety of display form factors
  • Move into collaborative/sharing task domains
  • Challenges user-centered design, creative
    breakthroughs, need machine learning expertise

64
  • Thanks for your attention!
  • http//research.microsoft.com/research/vibe
Write a Comment
User Comments (0)
About PowerShow.com
