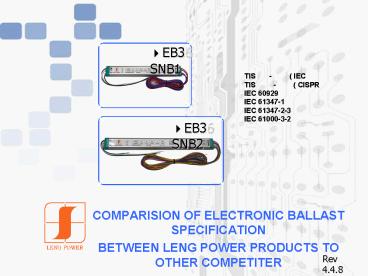

COMPARISION OF ELECTRONIC BALLAST SPECIFICATION

1
?EB36SNB1
TIS 885-2532 ( IEC 60928 ) TIS 1955-2542 ( CISPR
15 ) IEC 60929 IEC 61347-1 IEC 61347-2-3 IEC
61000-3-2
?EB36SNB2

• COMPARISION OF ELECTRONIC BALLAST SPECIFICATION
• BETWEEN LENG POWER PRODUCTS TO OTHER COMPETITER

Rev 4.4.807
2
Electronic Ballast for Fluorescent Lamps Tubular
Circular type T8 / Ø26mm. General purpose (
Non-dimmable circuit )
Technical Specification For 36W (T8) Input
Current 0.16 ampere Reference Voltage 220
VAC Operation Voltage 176 264 volt Main
Frequency 50/60Hz Operation frequency
40kHz Power Factor gt 0.98 Dimension LxWxH
251x30x25 mm. Temperature range 10 to
50 c Total Harmonic Distortion THD ? 10
Maximum case temperature Tc 60 c Hum or noise
level under-audible
Product view
Model EB36SNB1
3
Dimension Specification of the Electronic
Ballast (SNB1)
4
Electronic Ballast for Fluorescent Lamps Tubular
Circular type T8 / Ø26mm. x 2 General purpose (
Non-dimmable circuit )
Technical Specification For 36Wx2 (T8) Input
Current 0.33 ampere Reference Voltage 220
VAC Operation Voltage 204 252 volt Main
Frequency 50/60Hz Operation frequency
40kHz Power Factor gt 0.98 Dimension LxWxH
329x30x25 mm. Temperature range 10 to
50 c Total Harmonic Distortion THD ? 10
Maximum case temperature Tc 60 c Hum or noise
level under-audible
Product view
Model EB36SNB2
5
Dimension Specification of the Electronic
Ballast (SNB2)
6
Ideal for in the areas with a high switching
frequency Can be use with automatic lighting
control system Energy saving or Budged saving
projects(one is from the electrical cost)
Airports terminal Railway-stations that are
operated over-night Department-stores,
Super-market Medical/Science Labs, Hospitals,
Clinics that need stability of light for
analysis
Application
Modern office-building High-class business
company House-light in Theatre or Cinema
Sound-studio, Cine / Television Studio
Production facilities with long lighting duty
time, rotating machinery, hazardous
areas, low appliance power (k.VAR)
Compliances Approvals
Safety TIS 885-2532 (
IEC 60928 ) Electro-magnetic Compatibility
(EMC) TIS 1955-2542 ( CISPR 15 ) IEC
60929, IEC 61347-1, IEC 61347-2-3, IEC
61000-3-2 Approval marks
7
Unit is lightweight and relatively simple to
installation, less wiring and fewer circuit
components Striation-free operation Non
flicker when start light up(ignition) this
enables the lamps to be switched on/off
without reducing useful life Smooth light
because of pleasant flicker-freelight-output (no
stroboscopic effects) No flashing or flickering
of defective lamps in the circuit,Automatic
shutdown of lamps in the eventof a defect or at
the end of their life Useful energy-savinggt
50 longer lamp-life than system with magnetic
ballastgt Reduction in electric consumption up to
25 at constant luminous flux compared with
magnetic ballastgt No heat-radiation that it is
reduced load on air conditioning systems
Constant light-output independent ofmain-voltage
fluctuations
Benefit
Description
Main body is Extruded-aluminum die-cast that is
non color paint to peel or crack and
non-corrosion Double-ended covering with
mechanical interlock are fitted for
electric-cable and cable connecting terminals
which is Hi-heat frame-detained for electronic
productPolyamide(Nylon6) The electronic
components are SMD on printed circuit board that
is placed completely in the main body Feel free
from open load or shorted circuit from lamp
problem Each Unit is protected against
excessive mains-voltage incorrect connections
Wire size in connectors 0.5 2.5 mm2 both
sides for input main voltage output to lamps
Non space for house-lizard entrance into the
ballast
8
(No Transcript)
9
(No Transcript)
10
(No Transcript)
11
LENG POWER EB36SNB1
OSRAM QTIS e 1x36/220-240
GE EB36 (1x36W)
12
THAI UNILUX EB 36x1
PHILIPS EB-E136TLD
For Singapore (230V/50Hz)
ELBIRU ER36W
13
LAMPTON BIS-1 x36/40W
ECONO-WATD SYMPLY 1x36W
ECONO-WATD E-SET PLUG IN 1x36T8
14
Magnetic Ballast
LEADER 1 x 36/40 WATT
Magnetic Ballast
PHILIPS 1 x 36/40 WATT
Magnetic Ballast
TOSHIBA 1 x 36/40 WATT
15
LENG POWER EB36SNB2
16
OSRAM QTP 2x36/230-240
PHILIPS EB-E 236 TLD 220
For Singapore (230V/50Hz)
ELBIRU ER36W-2
17
LENG POWER EB32SNB1
OSRAM QTIS 1x32/220-240
18
(No Transcript)
19
LENG POWER EB58SNB1
OSRAM QTP 1x58/230-240
20
LENG POWER EB58SNB2
OSRAM QTP 2x58/230-240
21
?EB36SNB2
?EB36SNB1
LENG POWER CO.,LTD.
