The Solar Kegerator

1

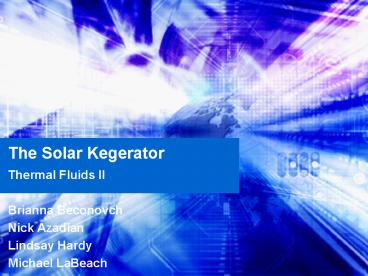

The Solar Kegerator

• Thermal Fluids II
• Brianna Beconovch
• Nick Azadian
• Lindsay Hardy
• Michael LaBeach

2
Solution Requirements

• Run on efficient refrigeration cycle
• Input power gt 50 Watts
• House large amount of liquid
• Keep beverage cool for 4-6 hours
• Environmental no emissions
• Sleek, mobile design wheels, mobile power
  source,
• not cumbersome, no extruding components

3
Proposals

• Three Refrigeration Prototypes
• Half Barrel
• Slim Quarter
• Pony Keg
• Three Power Systems
• Photovoltaic (Solar)
• Battery
• Wall
• Refrigeration Cycle
• Vapor compression

4
Components
Figure 10 CO2 tank, regulator, keg coupler, and
tubing.
5
Assembly
6
Assumptions

• An Ideal-Vapor Compression Cycle

7
Properties Given

• Converted to absolute pressure

8
State Properties
9
Power Consumption

• For Given
• Determine electric power consumption

10
Assumptions

• Steady state values temperature, heat, volume.
• There is a specific amount of heat entering the
  system.
• Natural convection considered for the interior
  and exterior.
• Constant Material properties.
• Geometry.
• Nominal changes in Thermal Properties of air.

11
Thermal Conductivity
Our Thermal Resistance were based off actual
studies conducted by Oak Ridge National
Laboratories of an aging Polyurethane material
12
Natural Convection Analysis

• Volume Expansion Coefficient
• Grashof and Prandlt Number to evaluate Rayleigh
  number
• Convective Heat Transfer coefficient

13
(No Transcript)
14
Analysis While the is Compressor Off
Qdotin
15
Analysis While is Compressor ON
16
Temperature Vs time
17
Homer

• Energy Analysis Program
• Allows analysis for various systems

18
Homer (Contd)

• Can analyze various components
• Our System

19
Temperature and Load Vs Time
Temperature (K)
Load (kW)
20
PV Power over Time
Load over Time
21
References

• 1. Çengel, Yunus A., and Turner, Robert H.
  Fundamentals of Thermal fluid Sciences. 2nd

• edition. New York McGraw-Hill, 2005.
• 2. Incropera, Frank P., and David P. Dewitt.
  Fundamentals of Heat Transfer. New York John
  Wiley Sons, Inc., 1981.
• 3. K. E. Wilkes, D. W. Yarbrough, and F. J.
  Weaver, Aging of Polyurethane Foam
• Insulation in Simulated Refrigerator Walls,
  International Conference on Ozone
• Protection Technologies, pp.253-262 (1997).
• 4. "Homer." Energy Analysis. 11 Apr 2008
  lthttps//analysis.nrel.gov/homer/gt.
• 5. Young, Robert. Kegerator. 30 Nov 2007
  http//www.micromatic.com/draft-beer- edu/how-to-b
  uild-a-kegerator-aid-115.html.
• 6. Turner, Robert. Air Properties. Engineering
  toolbox. 30 Nov 2007
• http//www.engineeringtoolbox.com/air-properties-
  d_156.html.

22
Summary

• Brief Demo
• Questions?
• Comments
• Thirsty?
