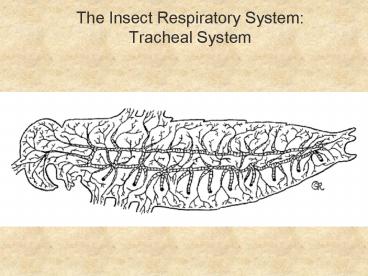

The Insect Respiratory System Tracheal System
2
The Insect Respiratory System I. Structure
A. Spiracles
spiracles
3
The Insect Respiratory System I. Structure
A. Spiracles 1. types of spiracles a.
simple b. atriate
4
The Insect Respiratory System I. Structure
A. Spiracles 2. types of tracheal
systems a. Closed (apnuestic) no
spiracles b. Open with functional
spiracles
5
The Insect Respiratory System I. Structure
B. Trachea
6
The Insect Respiratory System I. Structure
B. Trachea 1. composition of tracheal
tube -- ectodermal origin outer epidermal
layer inner cuticle with taenidia
epidermis
Lumen of tracheal tube
cuticle
7
taenidia
8
The Insect Respiratory System I. Structure
B. Trachea 2. organization of tracheal tubes
Dorsal trunks
Lateral trunks
Ventral trunks
9
The Insect Respiratory System I. Structure
B. Trachea 2. organization of tracheal tubes
cross section
10

Dorsal trunks
Air sacs
spiracle
GUT
Visceral trachea
Lateral trunks
Ventral trunks
11
The Insect Respiratory System I. Structure
C. Tracheoles arise from tracheol end cell
tracheoles
tracheal end cell
12
(No Transcript)
13
Smaller trachea
Small trachea
14
The Insect Respiratory System I. Structure
D. Air sacs
15

Dorsal trunks
Air sacs
Visceral trachea
Lateral trunks
Ventral trunks
16
(No Transcript)
17
The Insect Respiratory System I. Structure
D. Air sacs -- increase tidal volume of air --
decrease body mass
18
The Insect Respiratory System II. Ventilatory
Processes A. Passive ventilation -- no
active pumping -- gases diffuse passively
into and out of spiracles
19
The Insect Respiratory System II. Ventilatory
Processes B. Passive suction ventilation in
inactive insects and when in diapause --
spiracle valves closed, but not sealed valves
flutter and open for only brief bursts -- O2
diffuses from tracheoles into cells -- some CO2
diffuses into tracheoles but some moves into
hemolymph CO2 H2O ? H2CO3 ? H HCO3-
(bicarbonate
ion)
20
The Insect Respiratory System II. Ventilatory
Processes B. Passive suction ventilation in
inactive insects and when in diapause --
results in net loss of gases from trachea
creates negative pressure inside tracheal
tubes -- air is sucked in passively through
fluttering spiracles ( passive
suction) -- CO2 reaches threshold conc. in
trachea -- spiracles stimulated to open
completely (burst) CO2 rushes out
21
The Insect Respiratory System II. Ventilatory
Processes C. Active ventilation 1.
Process -- telescoping of abdomen or head
-- peristaltic waves of abdomen -- creates
pressure in hemolymph, which acts on
tracheal tubes and air sacs. -- controlled by
CPG in thoracic or abdominal
ganglion
22
The Insect Respiratory System II. Ventilatory
Processes C. Active ventilation 2.
modifications a. One-way flow in
thoracic spiracles out abdominal spiracles
b. Cardiac reversal of Lepidopterans
Valve that can separate thorax from abdomen
23
Cardiac reversal in Lepidopterans -- valve
closed partially separates thorax and abdomen --
reverse flow of blood in heart hemolymph pumped
from thorax into abdomen -- creates negative
pressure in thorax that helps to suck air through
thoracic spiracles increases air flow to flight
muscles
24
The Insect Respiratory System III. Aquatic
respiration A. Cutaneous respiration
diffusion across body surface
25
The Insect Respiratory System III. Aquatic
respiration B. Tracheal gills
26
The Insect Respiratory System III. Aquatic
respiration C. Surface breathers 1.
hydrofuge breathing tube
27
The Insect Respiratory System III. Aquatic
respiration C. Surface breathers 1.
hydrofuge breathing tube rat tailed maggot
Family Syrphidae
28
The Insect Respiratory System III. Aquatic
respiration C. Surface breathers 1.
hydrofuge breathing tube water scorpion
29
The Insect Respiratory System III. Aquatic
respiration C. Surface breathers 2. air
bubble
30
The Insect Respiratory System III. Aquatic
respiration D. Submerged air breathers 1.
plastron functions as physical gill
Riffle area
Riffle beetle
Water boatman
31
The Insect Respiratory System III. Aquatic
respiration D. Submerged air breathers 1.
plastron functions as physical gill 2.
oxygen taken from aquatic plants
32
The Insect Respiratory System III. Aquatic
respiration E. Hemoglobin -- in some
aquatic insect larvae that live in
anerobic conditions -- binds with O2 when
abundant and then releases it slowly when
anerobic
Midge larvae
