New Scintillating Crystals for PET Scanners

1

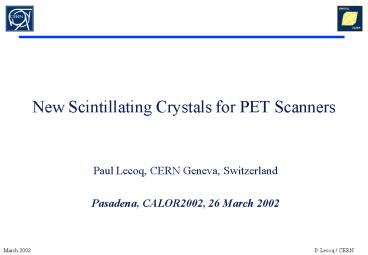

New Scintillating Crystals for PET Scanners

• Paul Lecoq, CERN Geneva, Switzerland
• Pasadena, CALOR2002, 26 March 2002

2
A Technology Transfer example from High Energy
Physics to Medical Imaging

• Requirements for HEP crystal calorimeters
• Crystals
• High density (gt 6 g/cm3)
• Fast emission (lt 100ns), visible spectrum
• Moderate to high light yield
• High radiation resistance
• Photodetectors
• Compact
• High quantum efficiency and high gain
• High stability
• Readout electronics
• Fast shaping
• Low noise
• Sofware
• Handling of high quantity of data
• General design
• Compact integration of a large number of channels
  ( gtgt 10000)

• Requirements for PET and SPECT scanners
• Crystals
• High density (gt 7 g/cm3)
• Fast emission (lt 100ns), visible spectrum
• High light yield
• Moderate radiation resistance
• Photodetectors
• Compact
• High quantum efficiency and high gain
• High stability
• Readout electronics
• Fast shaping
• Low noise
• Sofware
• Handling of high quantity of data
• General design
• Compact integration of a large number of channels
  ( gtgt 10000)

Technology transfer
Technology transfer
Technology transfer
Technology transfer
Technology transfer
3
New Scintillators for PET applications
??????????? To be discovered ???????????
??????????? Less light but cheap ???????????
4
LuAP Development

• First studies in 94
• Lempicki et al.
• Derenzo et al.,
• Korzhik Crystal Clear
• First attempts to grow LuAP crystals in 95
• CRYTUR (Czech republic) with Crystal Clear
• A. Petrossian (Armenia) with Crystal Clear
• AIRTRON (USA) with Lempicki
• Detailed studies from 94 to 99 by the Crystal
  Clear collaboration
• Lausanne-Prague-Crytur (Swiss Fonds National)
• Lyon LPCML-Ashtarak (CNRS)
• Engineering of LuAP technology starting in 2000
• Bogoroditsk (Russia) with CERN-ISTC support

5
LuAP technology development

• CERN-ISTC cooperation
• Conversion program for former Soviet Union
  militaro-industrial complex funded by the G8
• Very positive experience with the Bogoroditsk
  Plant for the production of 100 tons of Lead
  Tunstate crystals for the CERN CMS experiment
  (20M project)

• New ISTC project (200K) recently approved for
  LuAP technology development in Ashtarak

6
Lu2O3- Al2O3 Phase diagram

• A very high precision in the stoechiometry of the
  starting raw material is required
• A very high precision and stable heating system
  is required in the oven to keep the temperature
  in the range 3C
• A good control of thermal leaks and well designed
  geometry is required to maintain the melt
  temperature in the range 3C everywhere in the
  crucible

7
LuAP technology developmentBogoroditsk, Russia
LuAP, Crystal Clear, Bogoroditsk, August 2000
8
LuAP technology developmentBogoroditsk, Russia
9
Results - Light Output and Energy Resolution
Results by C. Kuntner

• Light output
• 1510 - 2370 phe/MeV ( 70)
• QE25
• 6000 - 9500 ph/MeV ( 500)
• energy resolution
• 10 - 21
• when poor energy resolution
• double or triple peaks
• inhomogeneities in the crystal

10
Lu2O3- Al2O3 Phase diagram

• A very high precision in the stoechiometry of the
  starting raw material is required
• A very high precision and stable heating system
  is required in the oven to keep the temperature
  in the range 3C
• A good control of thermal leaks and well designed
  geometry is required to maintain the melt
  temperature in the range 3Cevery where in the
  crucible
• Addition of some quantity of Yttrium helps in
  stabilizing the perovskite phase

11
The (LuY)Al2O3 system

• Photoefficiency _at_511KeV of the (LuY)Al2O3 system
  as a function of the sample thickness

• Photoelectric absorption coefficient _at_511KeV of
  the (LuY)Al2O3 system, compared to GSO and LSO

12
Seeded Lu70Y30APCe
13
Seeded Lu70Y30APCe
14
Ce4 suppression
15
Ce4 suppression
16
Results-Light Yield

• LSO Crystal

• LuYAP Crystal

17
Results - Different Sources

• Light output (crystal 1098)
• 2030 ( 100) Npe/MeV
• QE25
• ? 8100 ( 400) Nph/MeV

18
Results - Energy resolution

• LuYAP Horizontal
• 7.7 ( 0.4) FWHM

• LSO Horizontal
• 8.6 ( 0.4) FWHM

19
Results - Energy resolution / Light Yield

• Theory

• Intrinsic resolution
• ?sc 2.7
• YAPCe ? sc 1.3 0.5
• CsI(Tl) ? sc 4.1 0.2
• NaI(Tl) ? sc 5.7 0.2
• LSO ? sc 7.6 0.5

Moszynski et al, Nucl. Instr. and Meth. A 421
(1999) 610-613
20
Results - Light Pulse Shape

• 3 exponential fit
• ?fast 23.4 ( 2) ns (38)
• ? med 100 ( 30) ns (23)
• ? slow 500 ( 70) ns (39)
• 2 exponential fit
• ? fast 27.8 ( 2) ns (48)
• ? slow 320 ( 25) ns (52)

21
New Scintillators for PET applications
??????????? To be discovered ???????????
??????????? Less light but cheap ???????????
22
Search for heavy cations associated to rare earth

• Investigate materials based on Hf 4 and Ba 2 ,
  with 5p6 outer shell, combined with Lutetium or
  another rare earth
• Band gap must be larger than 5eV to allow 5d-4f
  transition of Ce 3
• 4f level of must be close enough to top of
  valence band to allow easy hole trapping
• 5d level of must be far enough from bottom of
  conduction band to avoid electron delocalization
  at room temperature

23
Samples selection and preparation

• Prepared from 5N oxydes, blended, and annealed in
  several steps at 1400C
• After the second or third annealing X-Ray
  diffraction showed at least 50 of the desired
  phase in compound
• All materials are 1 at. Cerium doped

24
Hafnium and Barium based compounds

• No observed X-Ray excited luminescence for
  undoped materials
• No luminescence for Ce doped BaLa2O4
• Bright and fast luminescence for all other
  components gt2000 ph/MeV

25
Excitation and emission spectra
26
Excitation and emission spectra
27
New Scintillators for PET applications
??????????? To be discovered ???????????
??????????? Less light but cheap ???????????
28
PWO Low energy and timing resolution (From R.
Novotny et al)
29
How to improve PWO Light Yield

• PWO with a LY of 100Pe/MeV could become
  attractive for low cost full body PET scanners
  for cancer screening
• Non radiative losses in PWO
• Temperature quenching of WO42- luminescence SJR
  ? 6
• Migration quenching of WO42- luminescence
• Redistribute non radiative losses on a well
  selected acceptor with
• A weak Coulomb interaction with WO42- centers
• A strong e- capture cross section

30
PWO Light Yield improvement

• 1- PWOMo
• MoO42- has a very high e- capture cross section
• MoO43- is metastable and produces slow components
  and afterglow
• MoO42- luminescence is also temperature quenched

• 2- PWOMo, La
• The shallow WO43- La centre is an additional
  radiating centre
• Prevents e- to be trapped by deep Mo centres
• Suppresses afterglow and large part of slow
  components

31
PWO Light Yield improvement
P. Lecoq, M. Korzhik, Proc. 1999 IEEE NSS/MIC,
Seattle A. Annenkov, M. Korzhik, P. Lecoq, NIM A
450 (2000), 71-74
32
PWO Light Yield improvement
33
Conclusions

• LuAPCe
• Lu0.7Y0.3APCe production is now stabilized.
• One production line ready
• RD in progress for increasing Lu fraction up to
  at least 90 this year on a second line
• RD on a third line to understand LuAPCe
  (100Lu) production issues technology, yield,
  cost

• New materials based on 5p6 outer shell cations,
  combined with a rare earth
• Promising results for several Hf and Ba compounds
• Bright and fast luminescence in the green

• Lead Tungstate with increased Light Yield
• A light yield 100 pe/MeV is probably not out of
  reach
• Its very high Zeff (similar to BGO) and low cost
  would then make this material attractive for
  lower cost full body machines for cancer screening
