Network Intrusion Detection

1

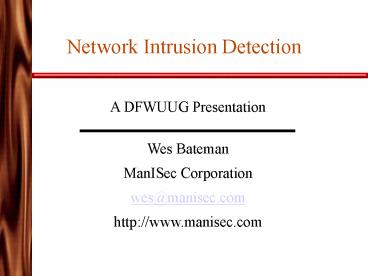

Network Intrusion Detection
A DFWUUG Presentation Wes Bateman ManISec
Corporation wes_at_manisec.com http//www.manisec.com
2
Disclaimer
3
Things To Consider Before Starting To Use An IDS

• Business Case for IDS
• Costs
• Benefits
• Getting Authorization To Grab Packets
• Privacy Concerns
• Legal Issues
• Avoiding Possible Problems By Avoiding Employee
  Monitoring
• Problems With Targetting Individuals
• Problems With Capturing Packet Payload vs.
  Headers Only

4
Sensor Choices for Unix

• Snort
• http//www.snort.org
• Shadow
• http//www.nswc.navy.mil/ISSEC/CID/index.html
• Dragon
• Others

5
Why Snort Wins My Vote

• Rules - Very fast rule updates
• snort.org
• whitehats.com
• Open Source
• Easy On The Budget - Which equates to very wide
  usage with rapid development and

6
Snort Installation

• Requirements
• Libpcap - http//www.tcpdump.org
• Optional
• libnet
• mySQL
• openssl
• Getting the source
• ./configure -help
• ./configure (options) make make install
• /etc/snort directory for rules

7
Snort Rules

• alert udp EXTERNAL_NET any -gt HOME_NET 635
  (msg"EXPLOIT x86 linux mountd overflow"
  content"5eb0 0289 06fe c889 4604 b006 8946"
  referencecve,CVE-1999-0002 classtypeattempted-a
  dmin sid315 rev1)
• http//snort.sourcefire.com/docs/writing_rules/ind
  ex.html

8
Running Snort

• Command line switches
• snort -qDc /etc/snort/snort.conf
• snort -u snort -g snort -s -b -D -i eth0 -l
  /var/log/snort -c /etc/snort/snort.conf
• snort -vde -P 96 -i eth0 -r dump.file

9
Additional Tools

• Snort Tools
• SnortSnarf
• ACID
• Hogwash
• snortplot
• Other libpcap tools
• tcpdump
• tcpreplay
• etherreal

10
Basic Analysis

• Traffic Analysis and Content Analysis
• Anomalous Activity
• Establishing Baselines for Your Network
  Environment
• Incorporating Your Security Policies Into Your
  Rules and Analysis

11
Example Detect 1

• Just Another Code Red Scan

12
Example Detect 2

• Successful Compromise of rpc.statd on a Default
  RedHat 6.2 Installation

13
Network Architecture Considerations

• Network Activity
• Network Segments
• Switched Environments
• Information Police
• How to centrally manage
• IP address on the monitor interface?

14
Filler Slide

• Why vendors, who boast about how an intrusion
  detection system can email you whenever there is
  an alert, should make you very afraid

15
This Page Left Blank Intentionally
16
Websites You May Or May Not Find Cool

• http//www.manisec.com
• http//www.snort.org
• http//www.whitehats.com
• http//www.incidents.org
• http//www.sans.org
• http//www.securityfocus.com

17
Q (hopefully -) ) A
