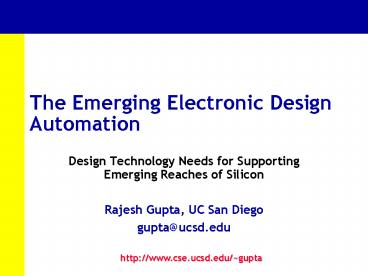

The Emerging Electronic Design Automation

1
The Emerging Electronic Design Automation

• Design Technology Needs for Supporting Emerging
  Reaches of Silicon
• Rajesh Gupta, UC San Diego
• gupta_at_ucsd.edu

http//www.cse.ucsd.edu/gupta
2
A Chip Is A Wonderful Thing!

• A typical chip, circa 2006
• 50 square millimeters
• 50 million transistors
• 1-10 GHz, 100-1000 MOP/sq mm, 10-100 MIPS/mW
• 300 mm, 10,000 units/wafer, 20K wafers/month
• 5 per part
• Does not matter what you build
• Processor, MEMS, Networking, Wireless, Memory
• So there is a strong incentive to port your
  application, system, box to the chip

3
The Technology and Its Industry
4
The EDA Industry

• Current EDA market
• 1B Synthesis and verification
• 400M synthesis, 400M verification, 200M
  Emulation
• 2.7in PDA, IP and Design Services.
• 8 Y-Y growth in Q2/2003
• More like 6.0 for tool licenses (85 of revenue)
• Revenue Drivers for EDA
• Semiconductor RD spending
• Design completion activity
• Semiconductor capital expenditures (backend EDA
  tools)
• Good chips and more chips lead to EDA growth

5
But it costs 20M to build one
Source IBS 2003

• Not a problem, until you consider this

6
Disaggregation in Semis

• Of the 72 distinct application markets that rely
  on value added IC designs (ASIC, ASSP, FPGA, SOC)

• over 50 are less than 500M
• 75 are less than 1B
• Manufacturing is no longer a competitive
  advantage

Source IBS
7
Rising Fabless, Fablite

• Currently at 20B
• about 15 of the semiconductor market
• going up to 50 by 2006
• Design technology needs are not the same as those
  of high value part manufacturers
• Example Baseband and CMOS Radio

Source Teresa Meng, Atheros
8
A Changing Industry

• Structural Changes
• Outsourcing Fabrication, Design Implementation
• Technological Changes
• New materials and devices being explored to
  overcome the roadmap brickwalls
• The mega-investments into nanotechnology
• History tells us that fundamental device
  discoveries happen within a relatively short
  period of time
• All major components of IC today were invented
  within a 10-year period from the Shockley
  transistor in 1947
• But a long development cycle for manufacturing
  (more on it later)

9
Dragging EDA Along With It

• (Rapidly) Falling ASIC Starts
• From 10K in 1996 to about 2K in 2005
• Rise of FPGAs and Deep Deep Submicron Noise
• Can lead to shrinking or at best stationary
  market in ICs
• EDA moving from expansion to retention phase.
• Desai, Industry Update, Nov 2003
• More and more it is EDA consuming itself
• Revenue reallocation within the same block
  Verification, Synthesis
• Major portions of EDA revenues are business with
  itself
• Basic value proposition is being lost
• OTOH, Dataquest predicts 15 growth based on ESL
  expansion
• The record there is not so good so far
• Compilers, embedded systems, software
• Embedded software is about a 1B
• Are we becoming irrelevant?

10
What Must EDA Do?

• A Three-Point Prescription
• Understand the new silicon
• Enable box makers expand reach of silicon
• Understand that marketplace is not everything

11
The New Semi Characteristics
1

• Highly application specific
• domain specific IC design, focus on system level
• Content increasingly determines processing
• embedded intelligence through embedded software
• Connection more important than processing
• bandwidth delivery more important than
  computational efficiency

12
New Semi Challenges
1

• Need streamlined/simplified system architectures
• gain from scalability, adaptability, not from
  design complexity
• The technology favors concurrency than speed
• Design reuse, design closure and sign-off
• make IP viable through software value add and
  platform ownership
• Key technical challenges
• Productivity, Power, Heterogeneous Integration,
  Test
• Getting it right means many more systems
  capabilities through Software

13
Design Decisions Are Important
1
Source Teresa Meng
14
And Likelihood of Failure High
1
15
Engineering Moving Up
1

• Chip Engineering Moving Up and Moving Down
• Systems Engineering versus Silicon Engineering
• Silicon Engineering Hot-buttons
• Design for Manufacturing
• Defect-tolerant Design
• EDA has been so far supporting Silicon
  Engineering
• With lip-service to System Engineering

16
Systems Engineering
1

• Example Problem How to achieve high throughput
  in a SOC for wireless applications?
• Can select a modem sub-system
• that packs more bits/Hz, but it will tolerate
  less noise and be less robust so that link
  throughput may not improve
• Can increase transmit power in RF subsystem
• to improve robustness but this increases energy
  cost, reduces network capacity, and requires more
  expensive analog circuits (power amps)
• Can reduce bits/frame
• to tolerate higher bit error rates (BER) and
  provide more robustness, but this may increase
  overhead and queuing delays
• Can increase precision in digital modem
• to reduce noise, but this leads to wider on-chip
  busses and more power consumption
• Getting it right (within engineering constraints)
  is the task of Systems Engineering

17
Expanding Semiconductor Use
2
18
Future Silicon Proliferation
2

• From Computers, Communications to
• Gaming, Robotics, Biomedical,

• Going Forward Si Has Place in Major Human
  Endeavors
• Communications Wireless, Sensor networks, open
  spectrum
• Entertainment Virtual worlds, education,
  multimedia delivery
• Medicine and Biology lab-on-chip, devices
  disability assists
• Transportation automotive, avionics
• Physical Sciences big science, life sciences
• Exploration space, oceanic

19
Accelerating Proliferation
2
Near Future lt 5 years
Going Forward gt 5 years
20
Environmental Monitoring
2

• Santa Margarita Ecological Reserve, SMER
• 4,334 acre field station 50 miles NE of San Diego
  with variety of habitat, terrain
• A testbed for 56 ongoing experiments including
  sensing
• Hydrology (stream flow, temp, pH, O2,
  conductivity..)
• Microclimate, fire hazard
• Chemical, biological agents
• High Performance Wireless Research and Education
  Network
• 45 Mbps wireless backbone running across southern
  CA connecting
• SMER, Mt. Palomar, IGPP/SIO seismic network
• Real-time environmental monitoring
• Seismic, oceanographic, hydrological, ecological
  data
• http//hpwren.ucsd.edu

21
Santa Margarita Ecological Reserve
2
Water Chemistry Quality Stations
Source, Dan Cayan, UCSD SIO
22
Drive Integration BioChem Labs.
2

• Crisis detection, evolutionary monitoring,
  genotyping
• ComputationNetworkingSensing
• In-package integration of microfluidic,
  communications, networking and processing
  subsystems
• Remotely operated, reconfigurable laboratories
  for biochemical analysis
• Sub-systems
• Biofluidic sample preparation, transport,
  disposal
• Chemical analysis, biological assays
• In-situ monitoring, control, communication,
  adaptation

23
Going ForwardOn-Chip Chemistry
2
24
Drive IC Into Fabrics and Buildings
2
Ember radios and networks
Source Ember Networks
25
Systems Engineering through EDA
1

• Consider Wireless SOC
• Platforms OMAP, PCA, MXC
• Basic theme
• Merging hardware Heterogenous MP on-chip
• Separating software
• Communications, networking, applications
• In the process, a lot of legacy stuff is left in
  as overheads
• Multiple UI functions, fragmented memory system
  and shared memory processor locks

2
26
Multiple Heterogenous On-Chip
1
2

• Software development is a challenge with evolving
  processors
• Shared memory processing
• Use OS and API support to provide a usable
  programming model
• Divergent approaches
• TI Integrate DSP, single programming environment
• Intel, Motorola Separate Comm, Networking, App.
• What is the right programming model for these
  systems?

27
ESL Technology Needs
1

• These are needs that will turn technology
  capacity afforded by new chips into new systems
  capabilities
• Components and Compositional Correctness
• A posteriori validation is simply not possible
• Software and Software Infrastructure
• Hardware capabilities and constraints driving
  need for new software architecture
• New awareness into software infrastructure
• Energy, Location, Reactivity, Precision, Security

2
28
1 Compositional Correctness
1

• Build Complete System Models
• That includes the application and system software
• Adapt, control and debug applications
• Explore the full potential of SOC architectural
  platforms
• e.g., by exploring applications, networking and
  communication subsystems together
• How? Through Component Composition Framework
  (CCF)
• Define compositional semantics
• enable easy system construction and its formal
  validation
• adequate, hierarchical and verifiable
  composition
• Create Virtual System Architectures
• Leverage advances in programming languages and
  verification.

2
29
2 Software and Its Infrastructure
1

• Changes in structure of system software
• OS moving towards micro-kernels
• Services moved to processes (e.g., Nucleus,
  Symbian)
• Still legacy remains memory, file semantics as
  unifying theme for communications.
• Changes in division of labor among
• Application, middleware, operating system
• Compiler, runtime
• Challenges in bringing new capabilities and
  contract into the system software

2
30
Consider Energy Awareness
1

• What does it mean to be aware?
• Services know about energy, power
• File system, memory management, process
  scheduling
• Make each of them energy aware
• How does one make software to be aware?
• Use reflectivity in software to build adaptive
  software
• Ability to reason about and act upon itself (OS,
  MW)
• Make middleware adaptive to respond to
  application requirements
• and to dynamically smooth the imbalances between
  demand and availability of energy resource

2
31
What Must EDA Do?

• A Three-Point Prescription
• Understand the new silicon
• Enable box makers expand reach of silicon
• Understand that marketplace is not everything

32
EDA Technology and Marketplace
3

• By and large EDA technology moves through
  startups and acquisitions
• One of the few industries where the business
  plans do not always call for sustainable
  standalone business
• The driver for EDA industry growth is
  Semiconductor RD
• Major semi innovations happened in the industry
  labs.

33
Semi. RD Is Changing Rapidly
3

• Shrinking, vanishing industry research
  laboratories
• Industry resorting to consortia to carry out
  needed technology innovations and developments
• Often with substantial government support
• SEMATECH, SELETE, ASET, MEDIA, ITRI,
  HsinChuPark,

34
Sematech Experience EDATech

• US Semiconductor industry gradually lost share
  starting late 70s
• By 1985, it lost leadership. Semi equipment
  vendors were loosing share about 5 per year
• Its fate was pretty much sealed until the
  industry and Reagan administration decided to do
  something about The Rising Sun
• The industry worked hard to define a
  precompetitive space
• Supported the supplier industry to semi houses
• 100M per year, for 8 years until 1994
• 800M investment by the government, 100M per
  year
• By 1994, the industry assumed its leadership
  position.

35
Summary

• The new Silicon comes out of the fab fast and
  furious
• Our ability to implement and manufacture vastly
  exceeds our capability to architect, reason and
  validate the new generation of silicon systems
• Our challenge is to make sure what goes into
  manufacturing has tremendous value-add to end
  application (systems)
• Software is the defining IP
• But it is a whole new ballgame new awareness,
  fangled, adaptive,
• RD leadership necessary to turn Si advantage
  into new systems capabilities
• New applications as reflected in new forms of
  computing
• Cognitive, Mobile, Entertainment, Embedded,
  Wireless, Trusted/secure computing, and so on.
• If left alone, the gap between our systems
  capabilities and new Si possibilities will
  continue to widen.

36
Questions to ponder

• What is the right precompetitive space for EDA?
• Frameworks
• Backend backplane
• Data format standards
• Language, libraries, models, models of
  computation
• What is the next big application space for Semis?
• Lab-on-chip, smart fabrics, appliances, robotics
• What are the training needs for the EDA
  professional? And where will the jobs be?
• Systems engineering, Nanotechnology, Biology,
  Chemistry
• What is Plan B for EDA?
• How can EDA expand beyond supplier to Semis?
