Levers and Pulleys

1

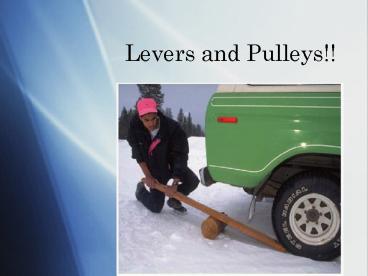

Levers and Pulleys!!
2
Slide 1

• There are six different kinds of simple machines.
  You can make all kinds of more complex machines
  out of the six. Those machines are a lever,
  pulley, wheel and axle, screw, wedge and inclined
  plane.

3
Slide 2

• Simple machines make work easier and things easy
  to move.

4
Slide 3

• Definitions
• Simple Machines-are objects that are used to make
  work easier
• Load or resistancethe object you are are trying
  to lift
• Effort force-the effort you put into moving
  something
• Work succeeding in moving something

5
Slide 4

• The four parts of a lever are the fulcrum, lever
  arm, resistance or load and effort force. A lever
  is all parts put together.

6
Slide 5

• The best way to set up the lever is to have the
  longest part of the lever arm to you. So if the
  load is closer to the fulcrum, for a fact it will
  be easier!!

7
Slide 6

• The parts of a pulley, are the pulley wheel,
  supporting lines/ropes, load and effort force.

8
Slide 7

• The more supporting lines there are the easier it
  is to move.

9
Slide 8

• Supporting lines affect the distance because
  your hand moves more than the load.

10
THE END

• By
• William Zach
