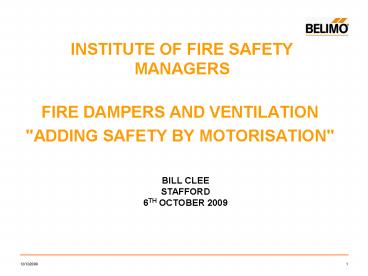

INSTITUTE OF FIRE SAFETY MANAGERS

1
INSTITUTE OF FIRE SAFETY
MANAGERS

• FIRE DAMPERS AND VENTILATION
• ''ADDING SAFETY BY MOTORISATION''

BILL CLEE STAFFORD 6TH OCTOBER 2009
2
HEAD QUARTERS HINWIL SWITZERLAND
ORIGINAL BUILDING
3
HEAD QUARTERS HINWIL SWITZERLAND
NEW BUILDING (COMPLETED 2002)
4
OVERVIEW

• WORLD WIDE ORGANISATION
• FOUNDED 1975
• PRODUCTS FOR HVAC INDUSTRY
• EMPLOYING 1100 PEOPLE
• 20 DAUGHTER COMPANIES
• 50 AGENTS/REPRESENTATIVES

5
(No Transcript)
6
BELIMO WORDWIDE
30
60
10
7
BELIMO REVOLUTIONISED DAMPER ACTUATION

• Simple mounting directly onto Round and Square
  shafts
• No Linkage required

8
RANGE OF PRODUCTS
water
fire Smoke
general
vav
retrofit
9
FOCAL POINT FOR TODAYS PRESENTATION IS
FIRE DAMPER MOTORISATION

10
FIRE DAMPER MARKET

•
  1999 2008
• CURTAIN DAMPERS 177,000
  280,000
•

• MOTORISED FIRE SMOKE 24,000
  62,000
• TOTAL
  201,000 342,000
•

•
  (12) (18)

11
FIRE DAMPER MARKET
Typical Fire Curtain Damper in Open
position Folding Mechanical Blade BI-Metal Trip
Fire Curtain Damper in Closed position
12
CURTAIN FIRE DAMPER DEVELOPMENT

• First used over 60 years ago
• No Test Standard
• BS476-20
• BRE report 2005
• Conclusions/recommendations
• BS5588-9 / BS9999 / Approved Document B
• RRO

13
FIRE SAFETY REGULATORY REFORM ORDER 2005

• The order clearly states that in order to
  safeguard the safety of
• relevant persons, equipment and devices provided
  in respect to
• general fire precautions are subject to a
  suitable system of
• maintenance and efficient state of working order
• Fire alarm systems
• Extinguishers
• Fire doors / seals
• Etc/Etc
• Curtain dampers are a non electrical device
• Not linked to any fire alarm or control system
• Routine maintenance and functional operation is
  difficult

14
ROUTINE MAINTENANCE
Difficult access
Lack of Maintenance
15
RECOMMENDATIONS

• A CLEAR STRATEGY FOR TESTING ALL FIRE / SMOKE
  DAMPERS IS RECOMMENDED AS PART OF ANY INITIAL
  PROPOSAL.
• THAT DAMPERS ARE CONSIDERED AS LIFE SAFETY
  PRODUCTS AND ARE TESTED IN LINE WITH OTHER FIRE
  EQUIPMENT.
• THAT O M MANUALS CLEARLY REFLECT THE IMPORTANCE
  OF REGULAR FUNCTIONAL TESTING.

16
(No Transcript)
17
(No Transcript)
18
WHY SHOULD WE CHOOSE TO MOTORISE

• Benefits
• Ease of routine operation
• Enables compliance with maintenance requirements
• Zone containment/compartmentation
• Night shutdown
• Scheduled automatic testing and resetting
• Simple integration into other control systems
• Damage limitation

19
WHY SHOULD WE CHOOSE TO MOTORISE

• Fire and smoke dampers are life safety critical,
  they should be tested on a regular basis to
  ensure correct operation when required to operate
• Curtain dampers are rarely tested, if ever,
  manual testing is often a prodigious task
• Curtain dampers do not prevent the spread of
  cold
• smoke due to the inability to trigger at lt72C
