FINECone Proof af Accuracy

1
FINEConeProof af Accuracy

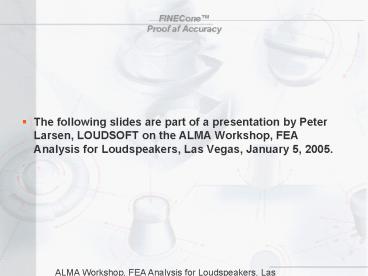

• The following slides are part of a presentation
  by Peter Larsen, LOUDSOFT on the ALMA Workshop,
  FEA Analysis for Loudspeakers, Las Vegas, January
  5, 2005.

2
FINECone 2D FEA Analysis of 165mm Woofer Pink
Measured responseBlack Simulated High Accuracy
from 200-10kHz
3
The problem is found!Cone Surround Break-up _at_
1617Hz
4
FINECone Simulated solutionModified Surround
The cone break-up is now removed!
5
FINECone Simulated solutionModified Surround
(black) High Accuracy from 200-10kHz
6
FINECone 2D FEA of 2 inch / 50mm Alu DomeRear
cavity includedPink Measured High Accuracy
from 2-15kHz
7
FINECone Simulated Impedance (Black)High
Accuracy 20-20kHzPink Measured
8
Summary

• FINECone can be used for significant analysis and
  design of the acoustical components in
  loudspeakers
• FINECone can accurately simulate and predict
  break-up in loudspeakers.
• FINECone is a valuable design tool for
  loudspeaker engineers
• FINECone can find the problems in your speakers
  and can help you find the solution
