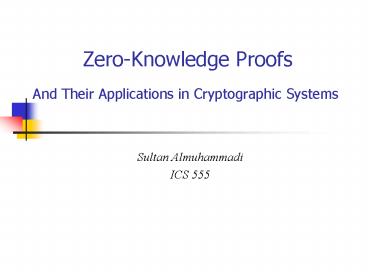

Zero-Knowledge Proofs

• And Their Applications in Cryptographic Systems

Sultan Almuhammadi ICS 555
2
Introduction

• Zero-knowledge proofs (ZKPs)
• To prove the knowledge of a secret without
  revealing it.
• Special form of interactive proofs (IP) between
  two parties prover and verifier.
• First introduced in 1985 by Goldwasser, Micali
  and Rachoff, for identification schemes.
• Have wide ranges of applications in modern
  cryptographic systems.

3
Introduction

• ZKPs
• Iterative run in several rounds
• Usually have high cost due to iteration
• Cost Measures
• Execution-time complexity
• Communication cost (of bits exchanged)
• Communication latency (delay)

4
From the Literature

• A Toy Example of ZKP
• To demonstrate all the features of ZKP
• Easy to discuss and visualize
• Known as Alibabas cave

5
Alibabas Cave

• Peggy (the prover) wants to prove her knowledge
  of the secret word of the cave to Victor (the
  verifier) but without revealing it

6
Alibabas Cave The Proof

• Starting at point A
• Peggy walks all the way to either point C or
  point D
• Victor walks to point B
• Victor asks Peggy to either
• Come out of the left passage (or)
• Come out of the right passage
• Peggy does that using the secret word if needed
• They repeat these steps until Victor is convinced
  that Peggy knows the secret word

7
Alibabas Cave About The Proof

• Complete if Peggy knows the secret word, she can
  complete the proof successfully.
• Sound if she does not know the secret, it is
  highly unlikely that she passes all the rounds.
• Zero-knowledge no matter how many rounds Victor
  asks for, he cannot learn the secret.
• Repudiatable (Peggy can repudiate the proof) If
  Victor video tapes the entire protocol, he cannot
  convince others that Peggy knows the secret.
• Non-transferable Victor cannot use the proof to
  pretend to be the prover to a third party.

8
Alibabas Cave Number of Rounds

• How many rounds are needed?
• Completeness
• If Peggy knows the secret, she always passes.
• Soundness
• If Peggy does not know the secret, she can pass
  with a probability 1/2k where k is the number
  of rounds.
• Optimal number of rounds k
• Minimum k that gives max trust in the proof.
• Let S be the domain of the secret.
• E.g. S strings of length 4 bits

9
Alibabas Cave Number of Rounds

• What is the optimal number of rounds k?
• Assume S strings of length 4 bits

Chance to cheat
Optimal k log2 S (the length of the secret
in bits)
1/2
k
S 24 16 There are 16 possible secrets
1/4
1/8
1/16
of Rounds
1
2
3
4
5
0
6
10
Applications of ZKPs

• Identification schemes
• Multi-media security and digital watermarks
• Network privacy and anonymous communication
• Digital cash and off-line digital coin systems
• Electronic election
• Public-key cryptographic systems
• Smart cards

11
Identification Schemes

• Identification scheme a protocol for two parties
  (User and System) by which the User identifies
  himself to the System in a secure way, that is, a
  third party listening to the conversation cannot
  later impersonate the user.

12
Identification Schemes

• Why ZKP?
• In some applications, it is desirable that the
  identity of the specific user is maintained
  secret to the system.
• E.g. an investor accessing a stock-market
  database prefers to hide his identity.
• Knowing which user is interested in stock of a
  given company is a valuable information.
• However, the system must make sure that the user
  is legitimate (i.e. a subscriber to the service).

13
Example Identification Scheme

• Two modes of identification
• Normal-mode The User reveals his identity to the
  System.
• Private-mode The identity of the user is
  maintained secret to the system.

14
Example Identification Scheme

• Using ZKP of SAT
• Given a boolen formula f, to prove the possession
  of the truth-assignment A that satisfies the
  formula (i.e. without revealing any information
  whatsoever about A itself or why and how it
  works).

15
Example Identification Scheme

• Each user i is given a boolean formula fi and a
  truth-assignment Ai that satisfies fi
• To log in to the system in normal-mode
• User i proves that fi is satisfiable in
  zero-knowledge.
• To log in to the system in private-mode
• Create ? f1 ? f2 ? ? fn
• User i proves that ? is satisfiable in
  zero-knowledge.

16
Multi-media Security and Digital Watermarks

• Digital Watermark
• To resolve ownership of media objects
• To ensure theft detection in a court of law
• Must survive within a media object
• Should not be easily removed by attackers
• Why ZKP?
• To prove the existence of a mark, without
  revealing what that mark is.
• Revealing a watermark within an object leads to
  subsequent theft by providing attackers with the
  information they need to remove or claim the
  watermark.

17
Network Privacy and Anonymous Communication

• Why ZKP?
• To achieve anonymity (like in identification
  schemes)
• Anonymous Communication
• To hide who communicates with whom
• The adversary is allowed to see all the
  communications but cannot determine the sender
  (or the receiver).
• Examples of Applications
• Crime tip hotline
• Secret admirer (or criticizing) letter to system
  admin
• Allow employees leaking information to the press
  from corrupted organizations

18
Digital Cash and Off-line Digital Coin Systems

• Why ZKP?
• To achieve the privacy of the customer.
• Security needs
• The bank wants to be able to detect all reuse or
  forgery of the digital coins.
• The vendor requires the assurance of
  authenticity.
• The customer wants the privacy of purchases (the
  bank cannot track down where the coins are spent,
  unless the customer reuses/forges them).
• Off-line digital coin system
• The purchase protocol does not involve the bank.

19
Electronic Election

• Why ZKP?
• To ensure the privacy of the voter.
• Electronic voting system a set of protocols
  which allow voters to cast ballots while a group
  of authorities collect the votes and output the
  final tally.
• Requirements
• Security ensure voting restrictions (e.g. voters
  can vote to at most one of the given candidates)
• Privacy cannot revoke who votes for what

20
Public-Key Cryptographic Systems

• Why ZKP?
• To set up the scheme and prove it is secure
• Setups
• Each user has a public key and a private key
• encrypted message with some public key needs the
  corresponding private key to decrypt it.
• it is computationally infeasible to deduce the
  private key from the public key.
• Examples
• RSA scheme
• ElGamal scheme

21
Public-Key Cryptographic Systems

• Why ZKP?
• To set up the scheme
• E.g. in RSA, the modulus should consist of two
  safe primes ZKPs are used to prove that a given
  number is a product of two safe primes without
  revealing any information whatsoever about these
  safe prime factors

22
Definitions

• Negligible function
• Zero-knowledge proof
• Completeness property
• Soundness property

23
Definition Negligible function

• f is negligible if for all c gt 0 and sufficiently
  large n, f(n) lt n-c
• f is nonnegligible if there exists a c gt 0 such
  that for all sufficiently large n, f(n) gt n-c
• E.g. f(n) 2-n is negligible in n.

24
Definition Zero-knowledge Proof

• From its name, it has two parts
• Proof
• It convinces the verifier with overwhelming
  probability that the prover knows the secret.
• It is complete and sound (defined later)
• Zero-knowledge
• It should not reveal any information about the
  secret.
• The transcript of the dialogue should be
  computationally indistinguishable to the
  transcript generated by a simulator that
  simulates the interaction between the prover and
  the verifier.

25
Definition Completeness and Soundness

• Zero-knowledge proofs are complete and sound
• Completeness property
• For any c gt 0 and sufficiently long x ? L,
  Probability (V accepts x) gt 1 - x-c
• Soundness property
• For any c gt 0 and sufficiently long x ? L,
  Probability (V accepts x) lt x-c, (i.e.
  negligible), even if the prover deviates from the
  prescribed protocol.

26
Classical Problems

• Discrete Log (DL) Problem
• Discrete Log over Elliptic Curve (DL-EC)
• Square Root Problem (SQRT)
• Equality of Two Discrete Log (DL-AND)
• One of Two Discrete Log (DL-OR)
• Multiple-Base Representation (MBR)
• Graph Isomorphism Problem
• Graph 3-Colorability Problem
• Hamiltonian Cycle Problem
• Satisfiability (SAT) Problem

27
DL Problem

• To prove in zero-knowledge the possession of x
  such that
• gx b (mod n)
• Applications
• Multi-media security
• Identification schemes
• Digital cash
• Anonymous communication
• Electronic election

28
Multiple-Base Representation Problem (MBR)

• To prove in zero-knowledge the possession of X
  ltx1 , x2, x3, , xtgt, such that
• b ?i gi xi (mod n)
• Applications
• Public-key schemes
• Digital cash systems

29
Graph Isomorphism

• Given two graphs G1(V1,E1) and G2(V2, E2), to
  prove in zero-knowledge the possession of a a
  permutation ? from G1 to G2 such that
• (u, v) ? E1 iff (? (u), ? (v)) ? E2
• Applications
• Multi-media security

30
Graph 3-Colorability

• Given a graph G(V,E), to prove in zero-knowledge
  the possession of a 3-coloring function f such
  that for all (u,v) ? E
• f(u) ? f(v)
• Applications
• Digital watermarks
• 3-colorability is NP-complete
• Easy to visualize and discuss

31
Square Root Problem

• To prove in zero-knowledge the possession of x
  such that
• x2 b (mod n)
• Applications
• Digital watermarks
• Public-key schemes
• Smart cards

32
Requirements of ZKPs

• Completeness If the prover knows the secret, the
  verifier accepts the proof with overwhelming
  probability.
• Soundness If the prover does not know the
  secret, it is highly unlikely that the verifier
  accepts the proof.
• Zero-knowledge The verifier cannot learn the
  secret even if he deviates from the protocol.
• Repudiatability The prover can repudiate the
  proof to a third party.
• Non-transferability The verifier cannot pretend
  to be the prover to any third party.

33
Examples of ZKPs

• ZKP of Graph Isomorphism Problem
• ZKP of SQRT problem
• ZKP of D-Log problem

34
Example ZKP of Graph Isomorphism
35
Example ZKP of SQRT
36
Example ZKP of DLb gx (mod n)
37
One-round ZKPs

• One-round zero-knowledge proofs
• Eliminate the iteration costs
• One-round ZKPs
• Encapsulate all the requirements of the true ZKP,
  but in one round.

38
One-round ZKP forAlibabas cave example
39
One-Round ZKP of DLb gx (mod n)
40
Time Complexity

• Iterative ZKP
• Let t be the length of the secret x in bits.
• Each round costs O(t2 log t log log t)
• Optimal number of rounds t
• O(t3 log t log log t)
• One-round ZKP
• O(t2 log t log log t).

41
Communication Cost

• Iterative ZKP
• Needs 2 messages of size t in each round.
• Needs one bit for the coin in each round.
• Optimal number of rounds t
• Exchanges (2t2 t) bits total.
• One-round ZKP
• Needs 2 messages of size t each.
• Exchanges 2t bits total.

42
Communication Latency

• Let d be the average latency (delay) per message
  over the network between the two parties

43
Communication Latency

• Iterative ZKP
• Needs 2 messages in each round
• Needs one bit for the coin in each round
• Latency per round 3d
• Optimal number of rounds t
• Overall latency 3td
• One-round ZKP
• Needs 2 messages, each takes d
• Overall latency 2d
