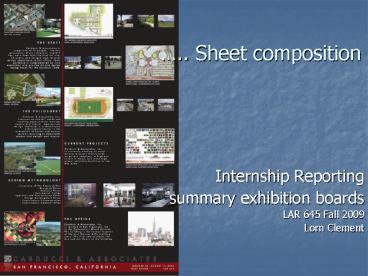

'' Sheet composition

1
.. Sheet composition

• Internship Reporting
• summary exhibition boards
• LAR 645 Fall 2009
• Lorn Clement

2
Outline

• Goals
• Principles/strategies for composition
• Visual characteristics of form
• Other image considerations
• Typography
• Ex. Smithsonian Magazine
• Ex. Dwell Magazine
• Ex. Previous internship boards

3
Goals

• Unity with variety
• Dynamic equilibrium
• Visually engaging, delightful
• Clarity, legibility
• Compelling narrative
• Comprehensive
• Research-based
• Memorable

4
Principles/strategies

• Concept / parti
• Layering
• Underlying geometry
• Unity, continuity
• Balance (symmetry, asymmetry)

5
Principles/strategies

• Hierarchy (imagery, labeling, text)
• Repetition, rhythm
• Proportion, scale
• Dominance accent
• Strong contrast
• Alignment, justification

6
Principles/strategies

• Compartmentalization (grid)
• Linkage, overlap, clustering
• Datum
• Unity of three
• Articulation, detail
• Border, frame, margins

7
Visual characteristics of form

• Size
• Shape
• Position (proximity)
• Direction
• Color (hue, value, chroma)
• Texture
• Opacity, transparency

8
Other image considerations

• Center vs. Edge
• Focal points _at_ 1/3 2/3s
• Visual weight/density
• Visual movement, gesture
• Discovery, surprise, chance
• Shapes and lines w/in images
• Value/edge contrasts
• Value gradations
• Color harmonies and contrasts

9
Typographic considerations

• Visual character of font / type (style)
• Serif / Sans serif
• Bold, italic, underline, normal
• Solid or outline, filled or open
• Uniform or gradation / fade

10
Errors to avoid

• Bulls eye composition
• Static, boring composition
• Too much uniformity (dullness)
• Too much complexity (chaos)
• Cultural symbols, icons
• Inappropriate emphasis
• Unintended messages

11
Smithsonian magazine
June 2005
12
Background image Contrast Columns Hierarchy Repeti
tion
13
Balance (symmetry) Unity of three Hierarchy Justif
ication
14
Unity of three
15
Visual movement Gesture Overlap Alignment Hierarch
y Rhythm (echo)
16
Grid Quadrants Repetition
17
Overlap Linkage Repetition
18
Grid Alignment Hierarchy Repetition Proportion Str
ong Contrast Analagous Accent Border
19
Polarity (reversal) Alignment Hierarchy Overlap A
ccent Dominance Complementary
20
Dwell magazine
June 2005
21
Underlying grid Alignment Hierarchy Repetition Ov
erlap Gradation
22
Datum (vertical line) Linkage Proportion Approx.
1/3s
23
Grid Repetition Alignment Radial, pinwheel
24
Expressed grid Repetition Variety
25
Hierarchy Alignment Edges w/in Images
26
Overlap Transparency (Literature!)
27
Overlap Transparency 1/3s (More literature!)
28
Transparency Overlap Repetition Compartmentalizati
on
29
Strong contrast Overlap Gradation 1/3,
2/3s Relation of text to image components
30
Strong contrast Overlap Gradation Articulation Det
ail
31
Final thoughts

• Know the rules so you can use them creatively
• Tell a good story
• K.I.S. (Keep it simple) B.M.I.E. (but make it
  elegant!)

32
Resources

• http//www.dwellmag.com/
• http//www.metropolismag.com/cda/
• http//www.smithsonianmag.si.edu/
• http//faculty.capd.ksu.edu/lcweb
• (click on LAR 645)
