Advanced%20Mobile%20integrated%20Power%20System%20(AMPS)%20-%20STO

1

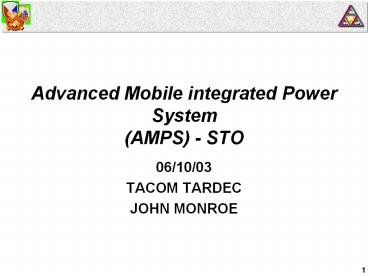

Advanced Mobile integrated Power System(AMPS) -
STO

• 06/10/03
• TACOM TARDEC
• JOHN MONROE

2
Purpose

• The purpose of the Advanced Mobile integrated
  Power System (AMPS) is to rapidly develop a
  configurable power system capable of supporting
  electrical power power management requirements
  to integrate Vetronics, C4ISR, and embedded
  simulation capabilities into FCS platforms,
  including robotic Unmanned Ground Vehicles (UGV).


The AMPS will capitalize on prior and parallel
research investments
3
AMPS Collaboration
Team Power Smart battery tech C. E. Niehoff Corp. NAC Power generation tech Fuel Cell Working Group SAE MIT
GDLS CRADA Flexwire tech Reusable SW API Vetronics AMPS Vetronics Institute (VI) Texas A M U
Smiths Aerospace CRADA CAN Power module SBIR contractors Power load analysis CHPS 42V for Hybrid Power systems
4
Advanced Mobile integrated Power System
Multiple Voltage Architecture
Flex bus Power Distribution
Smart Power Control Management
Distributed Remote Switching Units
Power Conversion
Energy Storage Technologies
Power Generation Technologies
Early Development using Modeling and Simulation
5
Current Technology Barriers

• Limited space and weight for electrical power and
  energy storage components
• Emerging commercial 42 volt components need to be
  military rugged
• Lead acid batteries do not have the energy
  density to support the vehicle mission
• Present electrical systems are energy wasteful
  and are not controlled to support the vehicle
  mission

6
Solutions

• Develop 42 volt ruggedized components and systems
  that are smaller and lighter compared to 28 volt
  systems
• Advanced chemistry batteries and fuel cells
• SMART Architecture / components to allow
  management of dynamic power and graceful
  degradation

7
System Benefits

• 34 cable weight reduction for load circuits
  carrying higher than 3amps.
• 20 min _at_ 4 mph silent operation
• 80 increase in energy storage density (baseline
  lead-acid)
• 2X increase in battery life (baseline3yrs
  lead-acid )

8
Warfighter Benefits

•
• Provide silent movement, extending the
  perception of the dismount soldier
• Increase reconnaissance, surveillance, and
  target acquisition capabilities by facilitating
  state of the art electronics usage.
• Decrease logistic burden and combat load due to
  increased battery life.

9
STO IV.LG.2003.02 / Advanced Mobile integrated
Power System

• Smart Power Architecture
• Conversion (Power Modules), regulation, and load
  control
• Power consumption
• Prioritized dynamic power allocation
• DC power bus (28 V DC, 42 V DC)
• AC power bus (120 V AC, Others)

Mode of operation Silent operation, emergency
failure, training, etc.
Power Control Management

• Electrical Power Generation System
• Combined Starter/Alternators
• Smart Alternator
• Fuel Cells

Power Conditioning Distribution Unit
Other Power Bus
28V Power Bus
42V Power bus

• Electrical Energy Storage System
• Smart Batteries
• Ultracapacitor
• Advanced Battery Chemistries

Energy Storage
10
Electrical Power Generation

• Tri-Voltage Alternator
• ISA
• Fuel Cells

11
Niehoff Tri-voltage Alternator

• 42 Volt 300 Amperes
• 28 Volt 200 Amperes
• 14 Volt 100 Amperes

12
Hydrogenics MREFMulti-service Regenerative
Electrolyser Fuel Cell

• Power output 5 kW peak,
• 3 kW average
• Energy Storage 15 kWh
• Quiet -sound and IR

13
Energy Storage

• Advanced Chemistry Batteries
• NIMH
• Li-ion
• PbSO4
• H2 storage
• Metal Hydride
• High Pressure
• Sodium Borohydride
• Ultracapacitor

14
Power management distribution

• System optimization to achieve maximum energy
  efficiency, mission control, safety, and ease of
  maintenance
• Smart Battery/Smart Alternator
• Conversion (Power Modules), regulation, and load
  control
• Prioritized dynamic power allocation
• Flexbus power distribution
• DC power bus (42, 28, 12 V DC)
• AC power bus (120 V AC, Others)

15
Modeling and Simulation

• Rapidly evaluate alternate electrical power
  system design concepts
• Steady state average models (Matlab)
• Transient models (Matlab, Simplorer)
• Animated user-friendly with GUIS
• DSPACE hardware-in-the-loop simulations (with
  Matlab/Simulink)

16
MS Goals

• Provide a highly accurate estimate of vehicle
  power consumption
• Determine power required for various mission
  scenarios
• Calculate silent watch durations for a given
  subset of vehicle equipment
• Provide simulation capability to determine
  peak/average/low power consumption
• Consider vehicle environmental conditions
  (temperature, humidity, shock, vibration, etc.)
  on both the power generating equipment and energy
  storage devices
• Consider automotive constraints (engine RPM,
  engine and/or APU fuel consumption, etc.)
• Analyze vehicle degraded modes of operation (e.g.
  what happens if APU fails?)

17
AMPS Simulation Overview Block Diagram
Mode (Normal, silent operation)
I/O interface line for model
Data bus
Smart interface/ CAN bus
Power bus
I/O Interface input GUI, displays etc.
Power Management
1st version completed

• Load
• Motor
• Lighting
• Computers

• Storage
• Battery
• Ultra-capacitor
• Flywheel

• Conversion
• DC/DC
• Inverter, etc.

• Generation
• Alternator
• Fuel cell etc.

18
Program Products

• Smart alternator, ISA, smart battery components
  for 42V architecture
• Lab Platform (MULE UGV, potential FMTV, etc.)
  demo.
• 42V Power module and smart switching software.
• Develop architecture interfaces to integrate fuel
  cell, grounding guidelines for power
  distribution, and AMPS architecture modeling
  simulation tool
