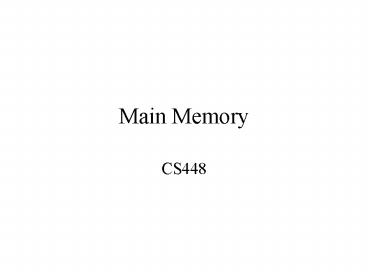

Main Memory

• CS448

2
Main Memory

• Bottom of the memory hierarchy
• Measured in
• Access Time
• Time between a read is requested and data
  delivered
• Cycle Time
• Minimum time between requests to memory
• Greater than access time to ensure address lines
  are stable
• Three Important Issues
• Capacity
• Bells law - 1 MB per MIP needed for balance,
  avoid page faults
• Latency
• Time to access the data
• Bandwidth
• Amount of data that can be transferred

3
Early DRAMs

• Dynamic RAM
• Number of address lines was a large cost issue
• Solution multiplex the address lines
• e.g., Address 10101010101010101

CAS
CAS Column Address Select RAS Row Address
Select
DRAM
Multiplexed RAS
4
DRAMS

• Dynamic RAM
• Transistor stores each bit
• Loss over time
• Must periodically refresh the bits
• All bits in a row can be refreshed by reading
  that row
• Memory controllers periodically refresh, e.g.
  every 8 ms
• If the CPU tries to access memory during the
  refresh, we must wait (hopefully wont occur
  often)
• Typical cycle times 60-90ns

5
SRAMs

• Static RAM
• Does not need a refresh
• Faster than DRAM, generally not multiplexed
• But more expensive
• Typical memories
• DRAM 4-8 times the capacity of SRAM
• Used for main memory
• SRAM 8-16 times faster than DRAM
• Typical cycle times 4-7ns
• Also 8-16 times as expensive
• Used to build cache
• Exceptions Cray built main memory out of SRAM

6
Memory Example

• Consider the following scenario
• 1 cycle to send the address
• 4 cycles per word of access
• 1 cycle to transmit the data
• If main memory is organized by word
• 6 cycles for every word
• Given a cache line of 4 words
• 24 cycles is the miss penalty Yikes!
• What can we do about this penalty?

7
1 More Bandwidth to Memory

• Make a word of main memory look like a cache line
• Easy to do conceptually
• Say we want 4 words, so send all four words back
  on the bus at one time instead of one after the
  other
• In the previous scenario, we could send 1
  address, access the four words (4 cycles if in
  parallel or 16 if sequential), and then send all
  data at once in 1 more cycle for a total of 6 or
  18 cycles
• Still better than 24 even if we dont access each
  word in parallel
• Problem
• Need a wider bus, which is expensive
• Especially true if this contributes to the pin
  count on the CPU
• Usually the bus width to memory will match the
  width of the L2 cache

8
2 Interleaved Memory Banks

• Take advantage of potential parallelism by
  interleaving memory
• 4-way interleaved memory

Allow simultaneous access to data in different
memory banks Good for sequential data
9
3 Independent Memory Banks

• Can take the idea of interleaved banks a bit
  farther make independent banks altogether
• Multiple independent accesses
• Multiple memory controllers
• Each bank needs separate address lines and
  probably a separate data bus
• Will see this idea appear again with
  multiprocessors that share a common memory

10
Summary of Techniques
11
4 Avoiding Memory Bank Conflicts

• Have the compiler schedule code to operate on all
  data in a bank first before moving on to a
  separate bank
• Might result in cache conflicts
• Similar to previous optimizations we saw using
  compiler-based scheduling

12
Other Types of RAM

• SDRAM
• Synchronous Dynamic RAM
• Like a DRAM, but uses pipelining across two sets
  of memory addresses
• 8-10ns read cycle time
• RDRAM
• Rambus Direct RAM
• Also uses pipelining
• Replace RAS/CAS with a packet-switched bus, new
  interface to act like a memory system not memory
  component
• Can deliver one byte every 2ns
• Somewhat expensive, most architectures need a new
  bus systems to really take advantage of the
  increased RAM speed
