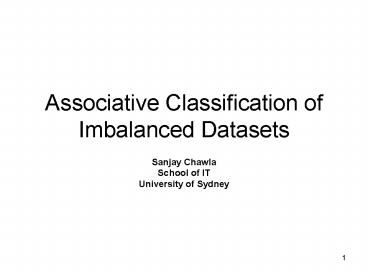

Associative Classification of Imbalanced Datasets

1
Associative Classification of Imbalanced Datasets

• Sanjay Chawla
• School of IT
• University of Sydney

2
Overview

• Data Mining Tasks
• Associative Classifiers
• Downside of Support and Confidence
• Mining Rules from Imbalanced Data Sets
• Fishers Exact Test
• Class Correlation Ratio (CCR)
• Searching and Pruning Strategies
• Experiments

3
Data Mining

• Data Mining research has settled into an
  equilibrium involving four tasks

Pattern Mining (Association Rules)
Classification
DB
Clustering
Anomaly or Outlier Detection
ML
4
Association Rule Mining

• In terms of impact nothing rivals association
  rule mining within the data mining community
• SIGMOD 93 (4100 citations)
• Agrawal, Imielinski, Swami
• VLDB 94 (4900 Citations)
• Agrawal, Srikant
• C4.5 93 (7000 citations)
• Ross Quinlan
• Gibbs Sampling 84 (IEEE PAMI, 5000 citations)
• Geman Geman
• Content Addressable Network (3000)
• Ratnasamy, Francis, Hadley, Karp

5
Association Rules (Agrawal, Imielinksi and
Swami, 93 SIGMOD)

• An implication expression of the form X ? Y,
  where X and Y are itemsets
• Example Milk, Diaper ? Beer
• Rule Evaluation Metrics
• Support (s)
• Fraction of transactions that contain both X and
  Y
• Confidence (c)
• Measures how often items in Y appear in
  transactions thatcontain X

From Introduction to Data Mining, Tan,Steinbach
and Kumar
6
Mining Association Rules

• Two-step approach
• Frequent Itemset Generation
• Generate all itemsets whose support ? minsup
• Rule Generation
• Generate high confidence rules from each frequent
  itemset, where each rule is a binary partitioning
  of a frequent itemset
• Frequent itemset generation is computationally
  expensive

7
Overview

• Data Mining Tasks
• Associative Classifiers
• Downside of Support and Confidence
• Mining Rules from Imbalanced Data Sets
• Fishers Exact Test
• Class Correlation Ratio (CCR)
• Searching and Pruning Strategies
• Experiments

8
Associative Classifiers

• Most of the Associative Classifiers are based on
  rules discovered using the support-confidence
  criterion.
• The classifier itself is a collection of rules
  ranked using their support or confidence.

9
Associative Classifiers (2)
TID Items Gender
1 Bread, Milk F
2 Bread, Diaper, Beer, Eggs M
3 Milk Diaper, Beer, Coke M
4 Bread, Milk, Diaper, Beer M
5 Bread, Milk, Diaper, Coke F
In a Classification task we want to predict the
class label (Gender) using the attributes
A good (albeit stereotypical) rule is
Beer,Diaper ? Male whose support is 60 and
confidence is 100
10
Overview

• Data Mining Tasks
• Associative Classifiers
• Downside of Support and Confidence
• Mining Rules from Imbalanced Data Sets
• Fishers Exact Test
• Class Correlation Ratio (CCR)
• Searching and Pruning Strategies
• Experiments

11
Imbalanced Data Set

• In some application domains, Data Sets are
  Imbalanced
• The proportion of samples from one class is much
  smaller than the other class/classes.
• And the smaller class is the class of interest.
• Support and confidence are biased toward the
  majority class, and do not perform well in such
  cases.

12
Downsides of Support

• Support is biased towards the majority class
• Eg classes yes, no, sup(yes)90
• minSup gt 10 wipes out any rule predicting no
• Suppose X ? no has confidence 1 and support 3.
  Rule discarded if minSup gt 3 even though it
  perfectly predicts 30 of the instances in the
  minority class!

13
Downside of Confidence(1)

20 5 25
70 5 75
90 10 100
Conf(A? C) 20/25 0.8 Support(A?C) 20/100
0.2 Correlation between A and C
Thus, when the data set is imbalanced a high
support and high confidence rule may not
necessarily imply that the antecedent and the
consequent are positively correlated.
14
Downside of Confidence (2)

• Reasonable to expect that for good rules the
  antecedent and consequent are not independent!
• Suppose
• P(ClassYes) 0.9
• P(ClassYesX) 0.9

15
Downsides of Confidence (3)

• Another useful observation
• Higher confidence (support) for a rule in the
  minority class implies higher correlation, and
  lower correlation in the minority class implies
  lower confidence, but neither of these apply for
  the majority class.
• Confidence (support) tends to bias the majority
  class.

16
Overview

• Data Mining Tasks
• Associative Classifiers
• Downside of Support and Confidence
• Mining Rules from Imbalanced Data Sets
• Fishers Exact Test
• Class Correlation Ratio (CCR)
• Searching and Pruning Strategies
• Experiments

17
Contingency Table

• A 2 2 Contingency Table for X ? y.
• We will use the notation a, b c, d to
  represent this table.

18
Fisher Exact Test

• Given a table, a, b c, d, Fisher Exact Test
  will find the probability (p-value) of obtaining
  the given table under the hypothesis that X, X
  and y, y are independent.
• The margin sums (?rows, ?cols) are fixed.

19
Fisher Exact Test (2)

• The p-value is given by

• We will only use rules whose p-values are below
  the level of significant desired (e.g. 0.01).
• Rules that pass this test are statistically
  significant in the positively associated
  direction (e.g. X ? y).

20
Overview

• Data Mining Tasks
• Associative Classifiers
• Downside of Support and Confidence
• Mining Rules from Imbalanced Data Sets
• Fishers Exact Test
• Class Correlation Ratio (CCR)
• Searching and Pruning Strategies
• Experiments

21
Class Correlation Ratio

• In Class Correlation, we are interested in rules
  X ? y where X is more positively correlated with
  y than it is with y.
• The correlation is defined by

where T is the number of transactions n.
22
Class Correlation Ratio (2)

• We then use corr() to measure how correlated X is
  with y compared to y.
• X and y are positively correlated if corr(X?y)gt1,
  and negatively correlated if corr(X?y)lt1.

23
Class Correlation Ratio (3)

• Based on correlation corr(), we define the Class
  Correlation Ratio (CCR)

• The CCR measures how much more positively the
  antecedent is correlated with the class it
  predicts (e.g. y), relative to the alternative
  class (e.g. y).

24
Class Correlation Ratio (4)

• We only use rules with CCR higher than a desired
  threshold, so that no rules are used that are
  more positively associated with the classes they
  do not predict.

25
The two measurements

• We perform the following tests to determine
  whether a potentially interesting rule is indeed
  interesting
• Check the significant of a rule X ? y by
  performing the Fishers Exact Test.
• Check whether CCR(X?y) gt 1.
• Those rules that pass the above two tests are
  candidates for the classification task.

26
Overview

• Data Mining Tasks
• Associative Classifiers
• Downside of Support and Confidence
• Mining Rules from Imbalanced Data Sets
• Fishers Exact Test
• Class Correlation Ratio (CCR)
• Searching and Pruning Strategies
• Experiments

27
Search and Pruning Strategies

• To avoid examining the whole set of possible
  rules, we use search strategies that ensure the
  concept of being potential interesting is
  anti-monotonic
• X?y might be considered as potential interesting
  if and only if all X?yX in X have been found
  to be potentially interesting.

28
Search and Pruning Strategies (2)

• The contingency table a, b c, d used to test
  for the significance of the rule X ? y in
  comparison to one of its generalizations X-z ?
  y for the Aggressive search strategy.

29
Example

• Suppose we have already determined that the rules
  (A a1) ? 1 and (A a2) ? 1 are significant.
• Now we want to test if X(A a1) (Aa2) ? 1 is
  significant
• Then we carry out a FET and calculate the CCR on
  X and X Aa1 (i.e. z a2)and X and X-Aa2
  (i.e. z a1).
• If the minimum of their p-value is less than the
  significance level, and their CCR is greater than
  1, we keep the X? 1 rule, otherwise we discard it.

30
Ranking Rules

• Strength Score (SS)
• In order to determine how interesting a rule is,
  we need a ranking (ordering) of the rules, and
  the ordering is defined by the Strength Score.

31
Overview

• Data Mining Tasks
• Associative Classifiers
• Downside of Support and Confidence
• Mining Rules from Imbalanced Data Sets
• Fishers Exact Test
• Class Correlation Ratio (CCR)
• Searching and Pruning Strategies
• Experiments

32
Experiments (Balanced Data)

• The preceding approach is represented by
  SPARCCC.
• The experiments on Balanced Data Sets show that
  the average accuracy of SPARCCC compares
  favourably to CBA and C4.5.
• The table below is the prediction accuracy on
  balanced data sets.

33
Experiments (Imbalanced Data)

• True Positive Rate (Recall/Sensitivity) is a
  better performance measure for imbalanced data
  sets.
• SPARCCC overcomes other rule based techs such as
  CBA and CCCS.
• The table below is True Positive Rate of the
  Minority Class on Imbalanced version of the
  Datasets.

34
References

• Florian Verhein, Sanjay Chawla.Using
  Significant, Positively Associated and Relatively
  Class Correlated Rules For Associative
  Classification of Imbalanced Datasets.The 2007
  IEEE International Conference on Data Mining .
  Omaha NE, USA. October 28-31, 2007.
