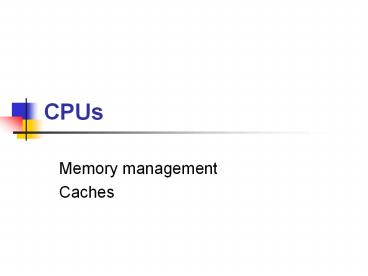

CPUs

1
CPUs

• Memory management
• Caches

2
The Memory System

• Embedded systems and applications
• The memory system requirements vary considerably
• Simple blocks
• Multiple types of memory
• Caches
• Write buffers
• Virtual memory

3
Memory management units

• Memory management unit (MMU) translates
  addresses
• Protection checks

main memory
logical address
memory management unit
physical address
CPU
4
Memory management tasks

• Allows programs to move in physical memory during
  execution
• Allows virtual memory
• memory images kept in secondary storage
• images returned to main memory on demand during
  execution
• Page fault request for location not resident in
  memory

5
Address translation

• Requires some sort of register/table to allow
  arbitrary mappings of logical to physical
  addresses
• Two basic schemes
• segmented
• paged
• Segmentation and paging can be combined (x86)

6
Segments and pages
7
Segment address translation
segment base address
logical address

range error
segment lower bound
range check
segment upper bound
physical address
8
Page address translation
page
offset
page i base
concatenate
page
offset
9
Page table organizations
10
Caching address translations

• Large translation tables require main memory
  access
• TLB cache for address translation
• Typically small

11
ARM Memory Management Unit
12
ARM Memory Management

• System control coprocessor(CP15)
• Memory
• Write Buffers
• Caches
• Registers
• Up to 16 primary registers
• Physical registers in CP15 more than 16
• Register access instructions
• MCR (ARM to CP15)
• MRC (CP15 to ARM)

13
Cached MMU memory system
14
ARM Memory Management

• MMU can be enabled and disabled
• Memory region types
• section 1 Mbytes block
• large page 64 Kbytes
• small page 4 Kbytes
• tiny Page 1 Kbytes
• Two-level translation scheme (why?)
• First-level table
• Second-level table

Page table size for 4-KB pages 220 X 4 bytes
4 MB
15
ARM address translation
Translation table base register
offset
1st index
2nd index
1st level table
descriptor
concatenate
2nd level table
descriptor
physical address
16
First-level descriptors

• AP access permission
• C,B cachability and bufferability

17
Section descriptor and translating section
references
CP reg 2 16 KB boundary
4K Entries
1 MB block (section)
Max 16KB
18
Coarse Page table descriptor
256 entries
4 K entries
Max 16KB
Max 1KB
19
Fine page table descriptor
1 K entries
Max 4 KB
20
Second-level descriptor
21
Translating large page references
22
Access permissions

• System (S) and ROM (R) in CP15 register 1

23
TLB functions

• Invalidate instruction TLB
• Invalidate instruction single entry
• Invalidate entire data TLB
• Invalidate data single entry
• TLB lockdown

24
MPC 850 MMU
25
MPC850 MMU

• Does not support some PowerPC MMU features
• 4-, 16-, 512- Kbyte, or 8-Mbyte pages
• 1-KB subpages for 4-Kbyte pages
• Separate instruction and data MMUs
• Can be disabled separately
• Supports up to 16 virtual address spaces
• Supports 16 access protection groups

26
MPC 850 MMU, contd

• Separate 8-entry, fully-associative data
  translation lookaside buffer (DTLB) and
  instruction TLB (ITLB)
• High performance and low power consumption
• TLB locking, invalidation

27
Address Translation

• Translation disabled
• MSRDR, MSRIR
• Effective address physical address
• Translation enabled
• TLB
• SW handles the table lookup and TLB reload with
  little HW assistance in the MPC 850
• MMU supports a multiple virtual address space
• Address space ID (ASID)

28
Address Translation, contd
Not implemented in the DTLB
29
TLB operation
Current Address ID
Privilege level
8?
30
Translation Table (4 KB pages)
31
Translation Tables (1 KB pages)
32
Level-One descriptor
33
Level-Two Descriptor
1KB subpage
4KB page
1KB protection 4KB page HW assist
34
Page Size
35
Programming Model
36
Programming Model (contd)
37
TLB operations

• tlbia translation lookaside buffer invalidate
  all
• tlbie translation lookaside buffer invalidate
  entry
• Locking TLB entries

38
Locking TLB Entries
IMMU control register (MI_CTR bit 4)
DMMU control register (MD_CTR bit 4)
39
DTLB reload
