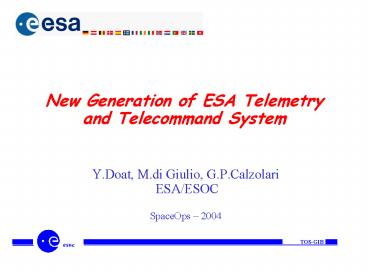

New Generation of ESA Telemetry and Telecommand System

1
New Generation of ESA Telemetry and Telecommand
System

• Y.Doat, M.di Giulio, G.P.Calzolari
• ESA/ESOC
• SpaceOps 2004

2
Introduction

• The TM and TC System
• Provides SLE services to the Users.
• Will be installed in all the Ground Stations of
  the ESAs Network (ESTRACK).
• Implements SLE services that will ensure
  inter-operability of the ESA stations with the
  Control Centres of other organizations.

3
SLE Transfer Services
Space Link Extension (SLE) transfer services Set
of services required to access the space link
formats in a uniform way.

• The SLE Services include two major elements
• transfer services that move space link data units
  between ground stations, control centres and
  end-user facilities
• management services that control the scheduling
  and provisioning of the transfer services.
• The SLE Services operate in two phases
• Definition phase (management activities)
• Utilization phase, (data transfer).

4
Return SLE Transfer Services

• Return All Frames (RAF) complete set of TM
  frames from a single space link symbol stream
• Return Channel Frames (RCF) Master Channel (MC)
  or specific Virtual Channels (VC) extracted from
  a particular RAF channel
• Return Frame Secondary Header (RFSH) MC or VC
  Frame Secondary Headers (FSH) extracted from a
  R-AF channel
• Return Operational Control Field (R-OCF) MC or
  VC Operational Control Fields (OCF) extracted
  from an R-AF channel
• Return Space Packet (RSP) retrieves packets with
  selected Application Process Identifiers (APID)
  from one spacecraft VC

5
Return Data Transfer Interface
6
Forward SLE Transfer Services

• Forward Command Link Transmission Unit (F-CLTU)
  users provide CLTUs for uplink to the spacecraft.

• Forward Telecommand Frames (FTCF) users supply
  TC frames to be encoded into CLTU ready for
  uplink
• Forward Telecommand Virtual Channel Access
  (FTCVCA) users provide complete VCs for uplink
• Forward Space Packets (FSP) users provide
  packets for uplink to a spacecraft without the
  need to coordinate with other users of the
  spacecraft

7
Forward Data Transfer Interface
8
The SLE Application Program Interface (API)

• ESA in collaboration with industry have designed
  an Application Program Interface (API)
• It isolates the SLE application from the specific
  characteristics of a given middleware
• It offers a standard communication service to the
  SLE application in the form of a set of standard
  functions
• The ESA Control Center will connect to the ESA
  Ground Stations via TCP/IP.

9
The MC Application Program Interface (API)

• ESA in collaboration with industry have designed
  an Application Program Interface (API)
• It isolates the TMTCS application from the
  specific characteristics of the ESA MC
• The TMTCS is not affected by the technology used
  for monitoring and control
• The ESA Central Ground-Station Monitoring and
  Control system will connect to the TMTCS via
  CORBA.

10
System Overview 1

• The TMTCS consists of 2 main blocks TPS and TCS.
• Initial Telemetry Processor (TPS) Services
• Return All Frames (RAF)
• Return Channel Frames (RCF)
• Return Operational Control Field (OCF).
• Initial Telecommand System (TCS) Services
• Forward CLTU
• Forward Space Packet (FSP)

11
System Overview - 2

• 1. SLE service Provision
• Service scheduling (e.g., service start and stop
  times)
• User characteristics (e.g., events notified to
  the User).
• Configuration of Service Provision is achieved
  through Service Instances .
• 2. SLE Service Production
• Actual processing and transmission of TM and TC
  data units
• TM production
• TC production.

12
System Overview - 3
13
Configuration of an SLE Service Providerthe
Service Instances

• SLE transfer services need to be
• Scheduled
• Configured
• Controlled
• Monitored.
• Service provisioning by means of Service
  Instances (SI)
• TM provisioning includes on-line and off-line SIs
• TC provisioning on-line SIs

14
Configuration of an SLE Service Providerthe
Spacecraft Session

• CCSDS Space Link Session a continuous period
  during which an SLE system provides the
  capability to use one or more physical channels
  on a space link.
• The Space Link Session is a matter of general
  ground station management. It is handled by the
  Complex Manager.
• The TMTCS supports Forward/Return Spacecraft
  Session a continuous period during which the
  TMTCS is fully configured with the parameters of
  a given spacecraft

15
Service Instances and Spacecraft Sessions
16
Subsystem Units and Basic States

• TCS and TPS are defined as two independent
  Sub-System Units of the TMTCS (the System).
• Each SSU has own Basic States Set-up and
  Operable.
• Provision of Return Services may take place
  during reconfiguration of Forward Services
  production, or vice-versa .
• In Basic State Operable
• the TPS can always supports service production
  for offline delivery mode.
• the TPS/TCS support service production for online
  delivery mode only during the Forward / Return
  Spacecraft Session.

17
Spacecraft Session and SSU Basic States
18
Monitoring and Control aspects of the TMTCS

• Main elements of the TMTCS database
• Variable Lists about Armed Service Instances.
• Variable Lists about Installed Service
  Instances.
• parameters of the Forward/Return Spacecraft
  Sessions. (either the on-going or to the
  next-scheduled Session).
• all the parameters of the System (TMTCS) and
  Subsystem Units (TPS and TCS).

19
Telemetry Processing characteristics - 1

• Supported SLE Services
• Return All Frames
• Return Channel Frames
• Return MC-OCF.
• Supported Standards
• CCSDS Packet TM Standard
• CCSDS AOS Standard
• ESA PCM TM Standard.

20
Telemetry Processing characteristics -2

• Data Storage for retrieval of
• Telemetry Frames
• Telemetry Frame Operational Control Field
• Data Storage structured according to Nodes and
  Folders, each corresponding to a Spacecraft
  Session for each given Spacecraft.
• Data Storage of at least 50 GBytes of user data
  (i.e., Telemetry Frames without overheads due to
  annotations, directory structures, etc.) on the
  hard disk.

21
Required TPS Performances
15 SLE Users Connected
22
Telecommand Processing characteristics

• Supported SLE Services
• Forward CLTU
• Forward Space Packet.
• Supported Standards
• CCSDS Packet TC Standard
• ESA PCM TC Standard (through CLTU).
• TC Data Storage

23
TCS Performances

• Uplink bit rate of up to 256k bits/second.
• Multi User support
• FSP Service Maximum of 20 Forward Sis Bound at
  a time
• CLTU Service Maximum of 1 Forward SIs Bound at
  a time

24
Few more considerations

• Pure software machine (data modulation/demodulatio
  n is performed by other equipment).
• Developed on a single Workstation on Solaris 8
• Will be ported to Linux.

25
