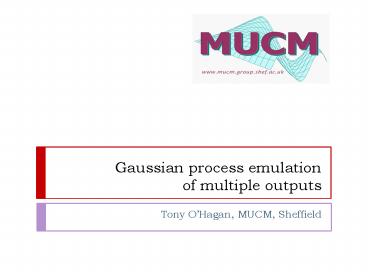

Gaussian process emulation of multiple outputs

1
Gaussian process emulation of multiple outputs

• Tony OHagan, MUCM, Sheffield

2
Outline

• Gaussian process emulators
• Simulators and emulators
• GP modelling
• Multiple outputs
• Covariance functions
• Independent emulators
• Transformations to independence
• Convolution
• Outputs as extra dimension(s)
• The multi-output (separable) emulator
• The dynamic emulator
• Which works best?
• An example

3
Simulators and emulators

• A simulator is a model of a real process
• Typically implemented as a computer code
• Think of it as a function taking inputs x and
  giving outputs y
• y f(x)
• An emulator is a statistical representation of
  the function
• Expressing knowledge/beliefs about what the
  output will be at any given input(s)
• Built using prior information and a training set
  of model runs
• The GP emulator expresses f as a GP
• Conditional on hyperparameters

4
GP modelling

• Mean function
• Regression form h(x)Tß
• Used to model broad shape of response
• Analogous to universal kriging
• Covariance function
• Stationary
• Often use the Gaussian form s2exp-(x-x')
  TD-2(x-x')
• D is diagonal with correlation lengths on
  diagonal
• Hyperparameters ß, s2 and D
• Uninformative priors

5
The emulator

• Then the emulator is the posterior distribution
  of f
• After integrating out ß and s2, we have a t
  process conditional on D
• Mean function made up of fitted regression hTß
  plus smooth interpolator of residuals
• Covariance function conditioned on training data
• Reproduces training data exactly
• Important to validate
• Using a validation sample of additional runs
• Check that emulator predicts these runs to within
  stated accuracy
• No more and no less
• Bastos and OHagan paper on MUCM website

6
Multiple outputs

• Now y is a vector, f is a vector function
• Training sample
• Single training sample for all outputs
• Probably design for one output works for many
• Mean function
• Modelling essentially as before, h i(x)Tßi for
  output i
• Probably more important now
• Covariance function
• Much more complex because of correlations between
  outputs
• Ignoring these can lead to poor emulation of
  derived outputs

7
Covariance function

• Let fi(x) be i-th output
• Covariance function
• c((i,x), (j,x')) covfi (x), fj(x')
• Must be positive definite
• Space of possible functions does not seem to be
  well explored
• Two special cases
• Independence c((i,x), (j,x')) 0 if i ? j
• No correlation between outputs
• Separability c((i,x), (j,x')) sij cx(x, x')
• Covariance matrix S between outputs, correlation
  cx between inputs
• Same correlation function cx for all outputs

8
Independence

• Strong assumption, but ...
• If posterior variances are all small,
  correlations may not matter
• How to achieve this?
• Good mean functions and/or
• Large training sample
• May not be possible in practice, but ...
• Consider transformation to achieve independence
• Only linear transformations considered as far as
  Im aware
• z(x) A y(x)
• y(x) B z(x)
• c((i,x), (j,x')) is linear mixture of functions
  for each z

9
Transformations to independence

• Principal components
• Fit and subtract mean functions (using same h)
  for each y
• Construct sample covariance matrix of residuals
• Find principal components A (or other
  diagonalising transform)
• Transform and fit separate emulators to each z
• Dimension reduction
• Dont emulate all z
• Treat unemulated components as noise
• Linear model of coregionalisation (LMC)
• Fit B (which need not be square) and
  hyperparameters of each z simultaneously

10
Convolution

• Instead of transforming outputs for each x
  separately, consider
• y(x) ? k(x,x) z(x) dx
• Kernel k
• Homogeneous case k(x-x)
• General case can model non-stationary y
• But much more complex

11
Outputs as extra dimension(s)

• Outputs often correspond to points in some space
• Time series outputs
• Outputs on a spatial or spatio-temporal grid
• Add coordinates of the output space as inputs
• If output i has coordinates t then write fi(x)
  f(x,t)
• Emulate f as single output simulator
• In principle, places no restriction on covariance
  function
• In practice, for single emulator we use
  restrictive covariance functions
• Almost always assume separability -gt separable y
• Standard functions like Gaussian correlation may
  not be sensible in t space

12
The multi-output emulator

• Assume separability
• Allow general S
• Use same regression basis h(x) for all outputs
• Computationally simple
• Joint distribution of points on multivariate GP
  have matrix normal form
• Can integrate out ß and S analytically

13
The dynamic emulator

• Many simulators produce time series output by
  iterating
• Output yt is function of state vector st at time
  t
• Exogenous forcing inputs ut, fixed inputs
  (parameters) p
• Single time-step simulator f
• st1 f(st , ut1 , p)
• Emulate f
• Correlation structure in time faithfully modelled
• Need to emulate accurately
• Not much happening in single time step but need
  to capture fine detail
• Iteration of emulator not straightforward!
• State vector may be very high-dimensional

14
Which to use?

• Big open question!
• This workshop will hopefully give us lots of food
  for thought
• MUCM toolkit v3 scheduled to cover these issues
• All methods impose restrictions on covariance
  function
• In practice if not in theory
• Which restrictions can we get away with in
  practice?
• Dimension reduction is often important
• Outputs on grids can be very high dimensional
• Principal components-type transformations
• Outputs as extra input(s)
• Dynamic emulation
• Dynamics often driven by forcing

15
Example

• Conti and OHagan paper
• On my website http//tonyohagan.co.uk/pub.html
• Time series output from Sheffield Global Dynamic
  Vegetation Model (SDGVM)
• Dynamic model on monthly timestep
• Large state vector, forced by rainfall,
  temperature, sunlight
• 10 inputs
• All others, including forcing, fixed
• 120 outputs
• Monthly values of NBP for ten years

16
Multi-output emulator on left, outputs as input
on right For fixed forcing, both seem to capture
dynamics well Outputs as input performs less
well, due to more restrictive/unrealistic time
series structure
17
Conclusions

• Draw your own!
