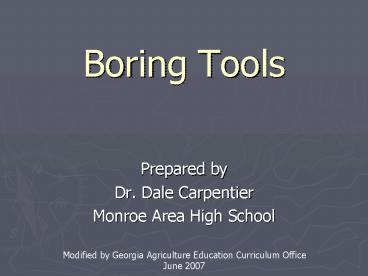

Boring Tools

1
Boring Tools

• Prepared by
• Dr. Dale Carpentier
• Monroe Area High School

Modified by Georgia Agriculture Education
Curriculum Office June 2007
2
Boring Tools.

• Objectives As a result of this lesson, students
  will be able to accomplish the following
  objectives.
• Identify and select appropriate boring tool for a
  given project.
• Use boring tools correctly and accurately when
  given a woodworking problem.
• Read measurements within 1/16.
• Transfer measurements to boards for boring
  purposes.

Essential Questions What are the common boring
tools used in the Ag Mechanics lab?
3
Drills

• Can be electric or cordless.
• Rated by size of chuck, ¼, 3/8, ½
• Make sure bit is tight in chuck.
• Hammer drill is used to drill holes in masonry.

4
Drill Press

• Used for drilling holes in wood or metal.
• Speed is adjustable.

5
Twist Drill bit

• Used for drilling holes in metal but can be used
  for wood.

6
Spade Bit

• Used for drilling holes in wood.
• Sizes range from ¼ to 1 ½

7
Forstner Bit

• Drills flat bottom holes in wood.
• Used for counter-sinking screws and covering with
  plugs.
• Sizes range from ¼ to big.

8
Plug cutter

• Used to make plugs to cover screws.
• Works best with forstner bit holes.

9
Masonry Drill Bit

• Used for drilling holes in block or masonry.
• Works best when used with hammer drill.

10
Countersink/Screw Mate

• Used to drill pilot holes for screws and
  countersink screws below surface of wood.

11
Brace

• Used to drill holes in wood using an auger bit or
  expansive bit.

12
Auger Bit/Expansive Bit

• Used to drill holes in wood.
• Held in a brace.
• Auger bits drill holes up to 1.
• Expansive bits range from ¾ to 3.
