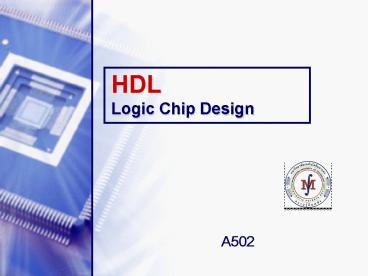

HDL Logic Chip Design

1
HDL Logic Chip Design

• ??.????? ????????
• ?????????????????????????????
• ???? A502

2
Course Description
3
HDL Introduction

4
Modern chip design aspects
HDL Introduction

• Modern chips became too complex
• The number of transistors in a modern chip is
  over a 100 M
• Transistor count per chip and chip speed rise up
  to 50 per year
• Estimated time needed for manual implementation
• (100 M transistor, 10 sec/transistor) 135.5
  years!!!

5
Modern ASIC design approach
HDL Introduction

• ASIC Application Specific Integrated Circuit
• Modeling system should be designed and described
• in the highest abstraction level possible
• Simulation and testing at high abstraction level
• Conversion of the modeled system
• into the low abstraction level model (gate,
  circuit, silicon level)
• using sophisticated synthesis tools
• Key point CAD (Computer Aided Design)

6
Modern ASIC design approach
HDL Introduction

• HDLs (Hardware Description Languages)
• are used for system description at the high
  abstraction level

Design
Description
Simulation Testing
RTL Model
HIGH ABSTRACTION LEVEL
Conversion
LOW ABSTRACTION LEVEL
Transistor Level Model
Gate Level Model
7
Verilog vs VHDL
8
VHDL
HDL Introduction

• VHDL - VHSIC Hardware Description Language
• VHSIC - Very High Speed Integrated Circuit
• Development of VHDL began in 1983, sponsored by
• Department of defense, further developed by the
  IEEE
• and released as IEEE Standard 1076 in 1987
• Today it is De facto industry standard for
  hardware description languages

9
The abstraction hierarchy
Structural Design Concepts

• The abstraction hierarchy can be expressed in two
  domains structural domain, behavioral domain
• Structural domain component model is described
• in terms of an interconnection of more primitive
  components
• Behavioral domain component model is described
• by defining its input/output response
• VHDL is used for both structural and behavioral
  description
• Six abstraction hierarchy levels of detail
  commonly used in design silicon, circuit, gate,
  register, chip and system

10
Design process
Structural Design Concepts

• The design cycle consists of a series of
  transformations,
• synthesis steps
• (1) Transformation from English to an
  algorithmic representation,
• natural language synthesis
• (2) Translation from an algorithmic
  representation
• to a data flow representation,
• algorithmic synthesis
• (3) Translation from data flow representation
• to a structural logic gate representation,
• logic synthesis
• (4) Translation from logic gate to layout and
  circuit representation,
• layout synthesis

11
Design process
Structural Design Concepts

• The design cycle steps can be carried out
  automatically
• in all stages except the first that is currently
  an active area of research
• VHDL tools are used for algorithmic synthesis

12
Design tools
Structural Design Concepts

• Editors textual (circuit level SPICE gate,
  register, chip VHDL)
• or graphic (used at all levels)
• Simulators stochastic (system level)
• or deterministic (all levels above the
  silicon level)
• Checkers and Analyzers employed at all levels,
  used for example
• (1) to insure that the circuit layout
• can be fabricated reliably (rule
  checkers),
• (2) to check for the longest path through a
  logic circuit or system
• (timing analyzers)
• Synthesizers and Optimizers improving a form
• of the design representation

13
Basic Features of VHDL
14
Design entities
Basic Features of VHDL

• In VHDL a logic circuit is represented as a
  design entity
• A design entity consists of two different VHDL
  types of description
• (1) Interface description (reserved word is
  entity)
• (2) One or more architectural bodies (reserved
  word is architecture)

entity D_FF defining D FF interface (ports)
D Q D FF R
CLK
architecture of D_FF specifying the behavior of
the entity
Designed digital device
VHDL representation
15
Entity
Basic Features of VHDL

• The entity part provides systems interface
  specification
• as seen from the outside and is generally
  comprised of
• (1) Parameters (such as bus width or max clock
  frequency)
• (2) Connections (system input and output ports)
• entity DesignEntityName is
• -- parameters
• -- connections
• port (ports)
• end entity DesignEntityName

16
Architectural bodies
Basic Features of VHDL

• Architectural bodies are specifying the behavior
  of the entity
• architecture ArchitectureName of
  DesignEntityName is
• -- signal declarations
• begin
• -- concurrent statements
• end architecture ArchitectureName
• There are two types of architectural bodies
  algorithmic, structural
• Algorithmic - at the beginning of the design
  process,
• designers usually would like to check the
  accuracy of the algorithm without specifying the
  detailed implementation
• Structural - the logic design stage, detailed
  implementation,
• entity as a set of interrelated components
