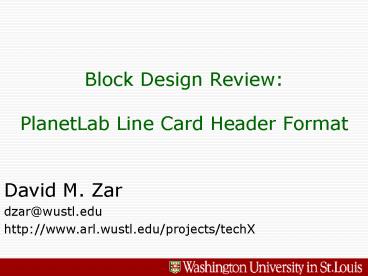

Block Design Review: PlanetLab Line Card Header Format

1
Block Design ReviewPlanetLab Line Card Header
Format
David M. Zar dzar_at_wustl.edu http//www.arl.wustl.e
du/projects/techX
2
Revision History

• 10/31/06 (DMZ)
• Initial Draft
• 11/04/06 (DMZ)
• Updates for performance issues

3
Line Card Centric Overview
Lookup
Switch Tx
QM/Schd
Hdr Format
S W I T C H
Phy Int Rx
Key Extract
Port Splitter
QM/Schd
Lookup
Key Extract
Switch Rx
Phy Int Tx
Hdr Format
Port Splitter

• Port Splitter (Ingress and Egress)
• Accepts packets on a NN ring
• Based on the physical destination port number
• 0-4 go to QM1 on a scratch ring
• 5-9 go to QM2 on a scratch ring
• Measured delay is about 120 cycles, including
  memory latency

4
Ingress Header Format
5
Ingress Header Format

• Microengine Usage
• One microengine
• Eight identical threads
• NN ring input from Lookup
• NN ring output to Port Splitter
• Main functions
• Using data from Lookup, modify packet header in
  DRAM for proper routing to PE
• Destination MAC address
• First five bytes are same as source MAC address
• Source MAC address
• Address of this LC
• VLAN tag
• Adjust pre-queue stats counters
• Format input data for QM
• QID
• Port Number
• Ethernet Frame Length

6
LC Ingress Functional Blocks
Lookup
Switch Tx
Hdr Format
Phy Int Rx
Key Extract
Ouput PacketFormat
Possible Input Packet Formats
7
MAC Address and VLAN Tag (Ingress)

• The source MAC address is fixed and set at boot
  time (_WU_get_mac_address)
• The destination MAC address will only differ in
  the last byte and this byte is obtained from the
  Lookup data.
• The VLAN tag is obtained from the Lookup data.

8
Stats/Counters (Ingress/Egress)

• The Stats Index is obtained from the Lookup Data
• The pre-queue packet and byte counters are
  updated (_WU_update_counters)
• Packet counter is incremented (atomic SRAM)
• Byte count is incremented by the number of bytes
  in the entire Ethernet frame (_WU_get_enet_frame_l
  ength).
• Frame_length IP_pkt_len 18
• 18 is the VLAN Ethernet header length

9
QM Data Formatting (Ingress and Egress)

• QID is extracted from Lookup data
• Port number is extracted from Lookup data
• Total Ethernet frame length is passed to QM
• Stats index is passed on for post-queue counters

10
Ingress HF Block Diagram
dl_source()
Signal next ctx
_WU_get_enet_frame_length
Cycles 10
NN Dequeue
Cycles 2
Cycles 17
init signal
DRAM 45 4B writes Cycles 26
_WU_write_vlan_header
Wait for prev ctx
Cycles 5
SRAM 1 read 1 write Cycles 10
_WU_update_counters
Signal next ctx
Cycles 1
NN Enqueue
Cycles 16
SRAM 3 writes Cycles 12
_WU_update_buffer_descriptor
Wait for prev ctx
dl_sink()
Total cycles 336699 Budget 1400
MHz/(10Gbs/890) 100.8 gt 100 cycles Measured
Latency 745
11
Ingress Validation

• Send in non-tunneled packets and check output
  packets to see they are our internal, tunneled,
  packets.
• Worked during development but not tested in
  integrated system at this point.
• Send in tunneled packets and check output packets
  to see they are our internal, tunneled, packets.
• Example 01020304 05060708 090a0b0c 81000aaa
  08004500 00380000 0000ff11 3a61c0a8 0001c0a8
  00020001 00010024 ffbd4500 001c0000 0000ff11
  3a7dc0a8 0001c0a8 00020001 00020008 7e87 6d7e
  d5be CRC thats stripped by RX
• -gt
• 01020304 0a020102 03040a0b 81000002 08004500
  00380000 0000ff11 3a61c0a8 0001c0a8 00020001
  00010024 ffbd4500 001c0000 0000ff11 3a7dc0a8
  0001c0a8 00020001 00020008 7e87

12
Egress Header Format
13
Egress Header Format

• Microengine Usage
• One microengine
• Eight identical threads
• NN ring input from Lookup
• NN ring output to Port Splitter
• Main functions
• Using data from Lookup, modify packet header in
  DRAM for proper routing to Switch
• Destination MAC address
• First five bytes are same as source MAC address
• Destination MAC address is looked up based on IP
  address from lookup
• Source MAC address
• Address of this LC
• VLAN tag
• Adjust pre-queue stats counters
• Format input data for QM
• QID
• Port Number
• Ethernet Frame Length

14
LC Egress Functional Blocks
Lookup
Phy Int Tx
Hdr Format
S W I T C H
Key Extract
Switch Rx
Output Packet Format
Input Packet Format
15
MAC Address and VLAN Tag (Egress)

• The source MAC address is fixed and set at boot
  time (_WU_get_mac_address)
• The destination MAC address will only differ in
  the last nibble and this nibble is obtained from
  the Lookup data.
• _WU_ip_lookup will take 32 bits from the
  destination IP address and use the local CAM to
  obtain the least significant 4 bits of the MAC
  address.
• The CAM state bits are used for this so thats
  why there are only 4 bits of data returned
• The VLAN tag is obtained from the Lookup data.

16
Egress HF Block Diagram
dl_source()
Signal next ctx
Cycles 10
_WU_get_enet_frame_length
Cycles 1
NN Dequeue
Cycles 2
_WU_ip_lookup
init signal
Wait for prev ctx
Cycles 1
DRAM 1 4B read 4 4B writesCycles
32
_WU_write_vlan_header
Cycles 2
_WU_update_counters
SRAM 1 add 1 incrCycles 6
Signal next ctx
Cycles 1
NN Enqueue
SRAM 3 writesCycles 10
_WU_update_buffer_descriptor
Wait for prev ctx
dl_sink()
Total cycles 65 Measured Latency 660
17
Egress Validation

• Send in our internal, tunneled packets and check
  output packets to see they are our valid IP,
  tunneled, packets.
• For the PlanetLab demo, there are no non-tunneled
  output packets
• Check packet and byte counters for valid updates
• Check CAM for proper initialization (data watch)

18
HF Initialization (Ingress/Egress)

• All memory locations defined in dl_system.h
• Base address for HF
• LCI/E_HF_SRAM_INIT_BASE
• MAC_ADDR_HI32
• MAC_ADDR_LO16
• Pre-Queue Counters
• LCI/E_LU_COUNTERS_SRAM_INIT_BASE
• LCI/E_LU_PRE_Q_PKT_CNT_OFFSET offset into
  counters structure for packet counter
• LCI/E_LU_PRE_Q_BYTE_CNT_OFFSET offset into
  counters structure for byte counter.
• Thread 0 waits for signal from rx
• For Egress, the CAM is filled (_WU_hfe_initialize_
  ip_lookup) with data from LCE_HF_SRAM_INIT_BASE
  8
• each entry is 64 bits cam_entry (32b), RSVD
  (28b), MAC_DEST (4b)

19
File Locations (Ingress and Egress)

• Main code
• Applications/LC_Ingress/src/hdr_format/PL/hdr_form
  at.uc
• Applications/LC_Egress/src/hdr_format/PL/hdr_forma
  t.uc
• Library
• library/DataPlane/hdr_format_util.uc

20
Required Includes (Ingress and Egress)

• Files
• build/PL/dispatch_loop/dl_system.h
• memory locations
• IXA_SDK_4.0/src/library/microblocks_library/
• dl_meta for metadata macros
• IXA_SDK_4.0/src/library/dataplane_library/
• dram for DRAM read/write macros
• sram for SRAM read/write/add/incr macros
• xbuf for transfer buffer macros

21
Performance Issues
22
Ingress Performance Anomalies
23
Ingress Anomalies (Explanation)
24
Ingress Anomalies (Explanation)
The SRAM Controllers have a command FIFO
These bus arbiters are shared across all memory
interfaces
25
Ingress/Egress SRAM Issues

• It seems that using atomic ADD/INCR instructions
  is expensive at the SRAM controller
• If I remove them and read the SRAM, add myself,
  write the SRAM, this is quicker and consumes less
  of the SRM controller time an, thus, the command
  queue never backs up.
• The this new design, there are more instructions
  executed, but there may be a few I could
  eliminate with some optimizing of code.
• No stalling in the WU microblocks (well QM does
  and RX and TX still do but these looks normal).

26
Ingress/Egress Performance

• 99 CPU cycles
• 745 cycles latency
• Expected performance
• Should have no trouble going at 10 Gb/s but does
• Simulated performance (as of 11/06/2006)
• 10 Gb
• With all other microengines in place (i.e. real
  simulation)

27
Future Work
28
Ingress/Egress Future Work

• Determine source of I/O stalls
• Update Stubs projects for validation of
  Ingress/Egress blocks (done for Ingress)
• Extend Both blocks for all possible packet
  formats
• Ingress inputs
• Egress outputs
• Possible instruction optimization to give a
  little headroom (99 cycles out of 100).
  Currently, design will not work for standard IPv4
  packets PlanetLab VLAN packets are OK.
