Cluster Analysis

1

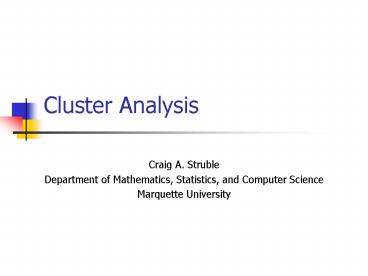

Cluster Analysis

• Craig A. Struble
• Department of Mathematics, Statistics, and
  Computer Science
• Marquette University

2
Clustering Outline

• Problem Overview
• Techniques
• Partitional Algorithms
• Hierarchical Algorithms
• Probability Based Algorithms
• Other Approaches
• Interpretations
• Applications

3
Goals

• Explore different clustering techniques
• Understand complexity issues
• Learn to interpret clustering results
• Explore applications of clustering

4
Clustering Examples

• Segment customer database based on similar buying
  patterns.
• Group houses in a town into neighborhoods based
  on similar features.
• Identify new plant species
• Identify similar Web usage patterns

5
Clustering Example
6
Clustering Houses
7
Clustering Problem

• Given a database Dt1,t2,,tn of tuples and an
  integer value k, the Clustering Problem is to
  define a mapping fD ? 1,..,k where each ti is
  assigned to one cluster Kj, 1ltjltk.
• A cluster, Kj, contains precisely those tuples
  mapped to it.
• Unlike classification problem, clusters are not
  known a priori.

8
Clustering vs. Classification

• No prior knowledge
• Number of clusters
• Meaning of clusters
• Unsupervised learning
• Data has no class labels

9
Clustering Approaches
Clustering
Sampling
Compression
10
Clustering Issues

• Outlier handling
• Dynamic data
• Interpreting results
• Evaluating results
• Number of clusters
• Data to be used
• Scalability

11
Impact of Outliers on Clustering
12
Visualizations
13
Cluster Parameters
14
Resources

• Classic text is Finding Groups in Data by Kaufman
  and Rousseeuw, 1990
• Overwhelming number of algorithms
• Several implementations
• R and Weka

15
Partitional Clustering

• Simultaneous clustering
• All elements are in some cluster during each
  iteration
• May be shifted from one cluster to another
• Some metric is used to determine goodness of
  clustering
• Average distance between clusters
• Squared error metric
• Combinatorial problem
• 11,259,666,000 ways to cluster 19 items into 4
  clusters

16
K-Means
Algorithm Kmeans Input k number
of clusters t number of
iterations data the
data Output C a set of k
clusters cent arbitrarily select k objects as
initial centers for i 1 to t do for each d
in data do assign label x to d such that
dist(d, centx) is minimized for
x 1 to k do centx mean value of all
data with label x
17
Example Data
18
K-Means Example

• Use Euclidean distance (l is number of
  dimensions)
• Select 10,4 and 5,4 as initial points

19
K-Means Clustering
3 clusters
2 clusters
20
Cluster Centers
21
K-Means Summary

• Very simple algorithm
• Only works on data for which means can be
  calculated
• Continuous data
• O(knt) time complexity
• k - number of clusters,
• n - number of instances,
• t - number of iterations
• Circular cluster shape only
• Outliers can have very negative impact

22
Outliers
23
Partitioning Methods

• K-Means (already done)
• MST
• K-Medoids (PAM)
• Fuzzy Clustering

24
Dissimilarity Matrices

• Many clustering algorithms use a dissimilarity
  matrix as input
• Instance x Instance

25
Graph Perspective
1
9
5
4.472
4
5.83
5
2
5.38
3
1
5
4
3
2
26
MST Algorithm

• Compute the minimal spanning tree of the graph
• Set of edges with minimal total weight so that
  each node can be reached
• Remove edges that are inconsistent
• E.G. One whose weight is much larger than
  average weight of neighboring edges
• Connected graph components form clusters

27
MST Example
B
A
1
2
E
C
3
1
D
28
MST Algorithm
29
MST Example
Let k be 3, and let inconsistent edge be
defined as an edge with maximum weight.
B
A
1
E
C
1
D
30
MST Summary

• Cost is dominated by MST procedure
• Time and space O(n2)
• Number of clusters not necessarily needed
• Implicitly defined by inconsistent

31
K-Medoids

• K-Means is restricted to numeric attributes
• Have to calculate the average object
• A medoid is a representative object in a cluster.
• The algorithm searches for K medoids in the set
  of objects.

32
K-Medoids
33
PAM Algorithm

• PAM consists of two phases
• BUILD - constructs an initial clustering
• SWAP - refines the clustering
• Goal Minimize the sum of dissimilarities to K
  representative objects.
• Mathematically equivalent to minimizing average
  dissimilarity

34
PAM Algorithm (BUILD Phase)

• Algorithm PAM (BUILD Phase)
• // Select k representative objects that appear to
  minimize
• // dissimilarities
• selected // empty set
• for x 1 to k do
• maxgain 0
• for each i in data - selected do
• for each j in data - selected do
• // See if j is closer to i than some
  other
• // previous selected object
• let Dj min(diss(j,k) for each k in
  selected)
• let Cji max(Dj - diss(j,i), 0)
• gain gain Cji // total up
  improvements from i
• if gain gt maxgain then
• maxgain gain
• best i
• selected selected best // best
  representative object chosen

35
PAM Algorithm (SWAP Phase)

• Algorithm PAM (SWAP Phase)
• // Improve the partitioning, selected comes from
  BUILD phase
• besti besth first element in selected
• repeat
• selected selected - besti besth // swap i
  and h
• minswap 0
• for each i in selected do
• for each h in data - selected do
• swap 0
• for each j in data - selected do
• let Dj min(diss(j,k) for each k
  in selected)
• if Djltdiss(j,i) and Djltdiss(j,h)
  then
• // closer to something else
• swap swap 0 // do
  nothing
• else if diss(j,i) Dj then //
  closest to i
• let Ej be min(diss(j,k) for
  each k in selected - i)
• if diss(j,h) lt Ej then
• swap swap diss(j,h) -
  Dj
• else

36
PAM Output (from R)
37
PAM Output (from R)
38
Silhouettes

• These plots give an intuitive sense of how good
  the clustering is
• Let diss(i,C) be the average dissimilarity
  between i and each element in cluster C
• Let A be the cluster instance i is in
• a(i) diss(i,A)
• Let B ltgt A be the cluster such that diss(i,B) is
  minimized
• b(i) diss(i,B)
• The silhouette number s(i) is

39
Silhouette Example
40
Silhouettes

• Let s(k) be the average silhouette width for k
  clusters.
• The silhoutte coefficient of a data set is
• The k that maximizes this value is an indication
  of the of clusters

41
Fuzzy Clustering (FANNY)

• Previous partitioning methods are hard
• Data can be in one and only one cluster
• Instead of saying in or out, give a percent of
  membership
• This is basis for fuzzy logic

42
Fuzzy Clustering (FANNY)

• Algorithm is a bit too complex to cover
• Idea Minimize the objective function
• where uiv is the unknown membership of object i
  to cluster v

43
FANNY Results
44
FANNY Results
45
Hierarchical Methods

• Top-down vs. bottom-up
• Agglomerative Nesting (AGNES)
• Divisive Analysis (DIANA)
• BIRCH

46
Top-Down vs. Bottom-Up

• Top-down or divisive approaches split the whole
  data set into smaller pieces
• Bottom-up or agglomerative approaches combine
  individual elements

47
Agglomerative Nesting

• Combine clusters until one cluster is obtained
• Initially each cluster contains one object
• At each step, select the two most similar
  clusters (e.g., average linking)

48
Cluster Dissimilarities
diss(i,j)
R
Q
49
Cluster Dissimilarities

• The dissimilarity between clusters can be defined
  differently
• Maximum dissimilarity between two objects
• Complete linkage
• Minimum dissimilarity between two objects
• Single linkage
• Centroid method
• Interval scaled attributes
• Wards method
• Interval scaled attributes
• Error sum of squares of a cluster

50
Example
51
AGNES Results
52
AGNES Results
53
Divisive Analysis (DIANA)

• Calculate the diameter of each cluster Q
• Select the cluster Q with the largest diameter
• Split into A and B
• Select object i that maximizes
• Move i from A to B if max value gt 0

54
DIANA Results
55
DIANA Results
56
BIRCH

• Balanced Iterative Reducing and Clustering Using
  Hierarchies
• Mixes hierarchical clustering with other
  techniques
• Useful for large data sets, because entire data
  is not kept in memory
• Identifies and removes outliers from clustering
• Due to differing distribution of data
• Presentation assumes continuous data

57
Two central concepts

• A cluster feature (CF) is a triple summarizing
  information about a cluster
• where N is the number of points in the cluster,
  LS is the linear sum of the data points, SS is
  the square sum of data points.

58
Two central concepts

• Contain enough information to calculate a variety
  of distance measures
• Addition of CFs accurately represents CF for
  merged clusters
• Memory and time efficient to maintain

59
Two Central Concepts

• A CF tree is a height balanced tree with two
  parameters, branching factor B, and diameter
  threshold T.

Root
CF1
CF2
CF3
CFn
CF11
CF12
CF13
Level 1
CF1n
Clusters
60
Phase 1 Build CF tree

• CF tree is contained in memory and created
  dynamically
• Identify appropriate leaf Recursively descend
  tree following closest child node.
• Modify leaf When leaf is reached, add new data
  item x to leaf. If leaf contains more than L
  entries, split the leaf. (Must also satisfy T.)

61
Phase 1 Build CF tree

• Steps continued
• Modify path to leaf Update CF of parent. If leaf
  split, add new entry to parent. If parent
  violates B, split parent node. Update parent
  nodes recursively.
• Merging refinement Find some non-leaf node Nj
  corresponding to a split stoppage. Find two
  closest entries in Nj. If they are not due to the
  split, merge the two entries.

62
Phase 1 Comments

• The parameters B and L are a function of the page
  size P
• Splits are caused by P, not by data distribution
• Hence, refinement step
• Increasing T makes a smaller tree, but can hide
  outliers
• Change T if memory runs out. (Phase 2)

63
Phase 3 Global Clustering

• Apply some global clustering technique to the
  leaf clusters in the CF tree
• Fast, because everything is in memory
• Accurate, because outliers removed, data
  represented at a level allowable by memory
• Less order dependent, because leaves have data
  locality

64
Phase 4 Cluster Refinement

• Use centroids of the clusters found in Phase 3
• Identify centroid C closest to data point
• Place data point in cluster represented by C

65
Probabilistic Methods

• COBWEB
• Hierarchical description with probabilities
  associated to attributes.
• Mixture Models
• Define probability distributions for each cluster
  in the data.

66
COBWEB

• Fisher, 1987
• Incremental approach to clustering
• Creates a classification tree, in which each node
  describes a concept and a probabilistic
  description of the concept
• Prior probability of the concept
• Conditional probabilities for the attributes
  given that concept.

67
Classification Tree
68
Algorithm

• Add each data item to the hierarchy one at a
  time.
• Try placing the data item in each existing node
  (going level by level), select good node by
  maximizing average category utility

69
Algorithm

• Incorporating a new instance might cause the two
  best nodes to merge
• Calculate CU for the merged nodes
• Alternatively, incorporating a new instance might
  cause a split
• Calculate CU for splitting the best node

70
Probability-Based Clustering

• Consider clustering data into k clusters
• Model each cluster with a probability
  distribution
• This set of k distributions is called a mixture,
  and the overall model is a finite mixture model.
• Each probability distribution gives the
  probability of an instance being in a given
  cluster

71
Mixture Model Clustering

• Simplest case A single numeric attribute and two
  clusters A and B each represented by a normal
  distribution
• Parameters for A ?A - mean, ?A - standard dev.
• Parameters for B ?B - mean, ?B - standard dev.
• And P(A), P(B) 1 - P(A), the prior
  probabilities of being in cluster A and B
  respectively

72
Probability -Based Clustering
?A50, ?A 5, pA0.6 ?B65, ?B 2, pB0.4
73
Probability-Based Clustering

• Question is, how do we know the parameters for
  the mixture?
• ?A ,?A, ?B ,?B,P(A)
• If data is labeled, easy
• But clustering is more often used for unlabeled
  data
• Use an iterative approach similar in spirit to
  the k-means algorithm

74
Expectation Maximization

• Start with initial guesses for the parameters
• Calculate cluster probabilities for each instance
• Expectation
• Reestimate the parameters from probabilities
• Maximization
• Repeat

75
Maximization
Probality xi is in A
Estimated Mean of A
Estimated Variance of A (maximum likelihood
estimate)
Prior probability of being in A
76
Termination

• The EM algorithm converges to a maximum, but
  never gets there
• Continue until overall likelihood growth is
  negligible
• Maximum could be local, so repeat several times
  with different initial values

77
Extending the Model

• Extending to multiple clusters is
  straightforward, just use k normal distributions
• For multiple attributes, assume independence and
  multiply attribute probabilities as in Naïve
  Bayes
• For nominal attributes, cant use normal
  distribution. Have to create probability
  distributions for the values, one per cluster.
  This gives kv parameters to estimate, where v is
  the number of values for the nominal attribute.
• Can use different distributions depending on
  data e.g., log-normal distribution for
  attributes with minimum

78
Other Clustering Approaches

• Genetic Algorithms
• Global search for solutions
• Neural Networks
• Competitive Learning
• Kohonen Network

79
Kohonen Data
80
Applications of Clustering

• Gene function identification
• Document clustering
• Modeling economic data

81
Gene Function Identification

• Genome is the blueprint defining an organism
  (DNA)
• Genes are inherited portions of the genome
  related to biological functions
• Proteins, non-coding RNA
• Given the collection of biological information,
  try to predict or identify the function of genes
  with unknown function

82
Gene Expression

• A gene is expressed if it is actively being
  transcribed (copied into RNA)
• Rate of expression is related to the rate of
  transcription
• Microarray experiments

83
Gene Expression Data
Experiments
Clones
84
Clustering Gene Expression Data

• Identify genes with similar expression profiles
• Use clustering
• Identify function of known genes in a cluster
• Assign that function to genes of unknown function
  in the same cluster

85
Clustering Gene Expression Data
Yeast Genome
86
Document Clustering

• Represent documents as vectors in a vector space
• Cluster documents in this representation
• Describe/summarize/evaluate the clusters
• Label clusters with meaningful descriptions

87
Document Transformation

• Convert document into table form
• Attributes are important words
• Value is number of times word appears

88
Document Classification

• Could select a word as classification label
• Identify after clustering
• Look at medoid or centroid and examine
  characteristics
• Look at of times certain words appear
• Look at which words appear together
• Look at words that dont appear at all

89
Document Classification

• Once clusters identified, label each document
  with a cluster label
• Use a classification technique to identify
  cluster relationships
• Decision trees for example
• Other kinds of rule induction

90
Document Clustering

• MeSH
• 21975 Terms
• RGD
• 2713 Papers
• Dissimilarity matrix
• Multidimensional scaling
• FANNY
• Red - Sequence related
• Black - Physiological

91
Economic Modelling

• Nettleton et al. (2000)
• Objective is to identify how to make the Port of
  Barcelona the principal port of entry for
  merchandise.
• Statistics, clustering, outlier analysis,
  categorization of continuous values

92
Data

• Vessel specific
• Date, type, origin, destination, metric tons
  loaded/unloaded, amount invoiced, quality
  measure, etc.
• Economic indicators
• Consumer price index, date (monthly), Industrial
  production index, etc.

93
Data Transformation

• Data aggregated into 4 relational tables
• Total monthly visits, etc.
• Joined based on date
• Separated into training (1997-1998) and test sets
  (1999)

94
Data Exploration

• Used clustering with Condorcet criterion
• IBM Intelligent Miner
• Identified relevant features
• Production import volume gt 400,000 MT for product
  1
• Area import volume gt 250,000 MT for area 10
• Then used rule induction to characterize clusters

95
Cluster Analysis Summary

• Unsupervised technique
• Similarity-based
• Can modify definition of similarity to meet needs
• Many techniques
• Partitional, hierarchical, probability based, NN,
  GA, etc.
• Combined with some other descriptive technique
• Decision trees, rule induction, etc.

96
Cluster Analysis Summary

• Issues
• Number of clusters
• Quality of clustering
• Meaning of clusters
• Clustering large data sets
• Applications
