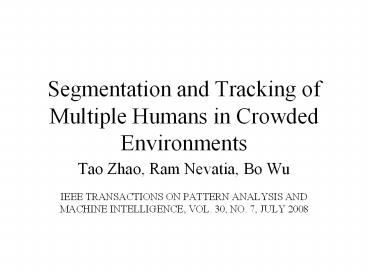

Segmentation and Tracking of Multiple Humans in Crowded Environments

1
Segmentation and Tracking of Multiple Humans in
Crowded Environments

• Tao Zhao, Ram Nevatia, Bo WuIEEE TRANSACTIONS
  ON PATTERN ANALYSIS AND MACHINE INTELLIGENCE,
  VOL. 30, NO. 7, JULY 2008

2
Outline

• Introduction
• Overview
• Probabilistic modeling
• Computing MAP by efficient MCMC
• Experimental results
• Conclusion

3
Introduction

• Segmentation and tracking of multiple humans in
  crowded situations is made difficult by
  interobject occlusion.

4
Introduction

• The method is feasible for a crowed scene
• persistent and temporarily heavy occlusion
• Do not require that humans isolated when they
  first enter the scene.
• More complex shape models are needed.
• Joint reasoning about the collection of objects
  is needed..

5
Introduction

• Main features of this work
• A three-dimensional part-based human body model
  which enables the segmentation and tracking of
  humans in 3D and the inference of interobject
  occlusion naturally.
• A Bayesian framework that integrates segmentaion
  and tracking based on a joint likelihood for the
  appearance of multiple objects.

6
Introduction

• The design of an efficient Markov chain dynamics,
  directed by proposal probabilities based on image
  cues.
• The incorporation of a color-based background
  model in a mean-shift tracking step.

7
Overview

• The prior models
• Background model
• Based on a background model, the foreground blobs
  are extracted as the basic observation.
• 3D human shape model
• Since the hypotheses are in 3D, occlusion
  reasoning is straightforward.
• Camera model Ground Plane
• Multiple 3D human hypotheses are projected onto
  the image plane and matched with the foreground
  blobs.

8
Overview

• The segmentation and tracking are integrated in a
  unified framework and interoperate along time

9
Overview

• We formulate the problem as one of Bayesian
  inference to find the best interpretation given
  the image observations, the prior model, and the
  estimates from the previous frame analysis.
• That is the maximun a posteriori (MAP) estimation.

10
Overview

• The state to be estimated at each frame
• The number of objects
• Their correspondences to the objects in the
  previous frame (if any).
• Their parameters (for example, position)
• Uncertainty of the parameters

11
Probabilistic modeling

• Our goal is to estimate the state at time t,
  ?(t), given the image observation, I(1),, I(t)
• ? the state of the objects.? the solution
  space.

12
Probabilistic modeling

• a state containing n objects can be written
  aswhere ki is the unique identity of the ith
  object whose parameters are mi and ?n is the
  solution space of exactly n objects.
• The entire solution space is

13
3D human shape model

• The parameter of an individual human, m, are
  defined based on a 3D human shape model.
• Do not attempt to capture the detailed shape and
  articulation parameters of the human body.

Head, torso, and legs, with fixed spatial
relationship.
14
3D human shape model

• The parameters (mi) to describe 3D human
  hypothesis
• size (hi) 3D height of the model, it also
  control the overall scaling of the object in the
  three directions.
• thickness (fi) captures extra scaling in the
  horizontal directions.
• position (ui or (xi,yi)) the image position of
  the head.

15
3D human shape model

• orientation (oi) 3D orientation of the body
• Orientations of the models are quantized into few
  levels for computation efficiency.
• inclination (ii) 2D inclination of the body
• There is the chance that the body may be inclined
  slgithly.

16
Object appearance model

• We use a color histogram of the object,
  defined within the object
  shape.
• It help establish correspondence in tracking
  because it is insensitive to the nonrigidity of
  human motion.
• There exists an efficient algorithm, for example,
  the mean-shift technique, to optimize a
  histogram-based object function.

17
Background appearance model

• The probability of pixel j being from the
  background is

18
The prior distribution

• The first term
• is independent of time and is defined
  by
• Si is the projected image of the ith object and
  Si is its area.

19
The prior distribution

• P(ofrontal)P(oprofile)1/2
• P(xi,yi) is a uniform distribution in the region
  where a human head is plausible
• P(hi) is a Gaussian distribution N(?h,?h2)
  truncated in the range of hmin,hmax
• P(fi) is a Gaussian distribution N(?f,?f2)
  truncated in the range of fmin,fmax
• P(ii) is a Gaussian distribution N(?i,?i2)

20
The prior distribution

• the second term
• We approximate it by
• We rearrange ?(t) and ?(t-1) as such that
  one of
  is true.

21
The prior distribution

• Passoc
• We assume that the position and the inclination
  of an object follow constant velocity models with
  Gaussian noise.

22
The prior distribution

• The height and thickness follow a Gaussian
  distribution.
• We use Kalman filters for temporal estimation.
• Pnew Pdead
• the likelihood of the initialization of a new
  track
• the likelihood of the termination of a existing
  track
• They are set empirically according to the
  distance of the object to the entrance/exits.

23
Joint image likelihood for multiple objects and
the background

• The visible part of object ( )
• determined by the depth order of all of the
  objects, which can be inferred from their 3D
  position and the camera model.
• Non object region ( )

24
Joint image likelihood for multiple objects and
the background

• The joint likelihood P(I?) consists of two
  terms
• The first term

25
Joint image likelihood for multiple objects and
the background

• di is the color histogram of the background image
  within the visibility mask of object i.
• pi is the color histogram of the object.
• is
  the Bhattachayya coefficient, which reflects the
  similarity of the two histogram.

26
Joint image likelihood for multiple objects and
the background

• The second term is
• ejlog(Pb(Ij)) is the probability of belonging to
  the background model

27
Computing MAP by efficient MCMC

• Computing the MAP is an optimization problem.
• Optimization is challenging
• An unknown number of objects, the solution space
  contains subspaces of varying dimension.
• Includes both discrete variables and continuous
  variable.
• we adapt a data-driven Markov chain Monte Carlo
  (MCMC) approach to explore this complex solution
  space.

28
Computing MAP by efficient MCMC

• MCMC method with jump/diffusion dynamics to
  sample the posterior probability.
• Jump cause the Markov chain to move between
  subspaces with different dimension and traverse
  the discrete variables.
• Diffusions make the Markov chain sample
  continuous variables.
• In the process of sampling, the best solution is
  recorded and the uncertainty associated with the
  solution is also obtained.

29
Computing MAP by efficient MCMC
30
Computing MAP by efficient MCMC

• MCMC method
• We want to design a Markov chain with stationary
  distribution
  .
• At the gth iteration, we sample a candidate state
  ? from a proposal distribution q(?g ?g-1).
• If the candidate state ? is accepted, ?g ? .
• Otherwise, ?g ?g-1.

31
Computing MAP by efficient MCMC

• Markov chain constructed in this way has its
  stationary distribution equal to P(), independent
  of the choice of the proposal probability q() and
  the initial state ?0.
• The choice of the proposal probability q() can
  affect the efficiency of MCMC significantly.
• Using more informed proposal probabilities, for
  example, as in the data-driven MCMC, will make
  the Markov chain traverse the solution space more
  efficiently. Therefore, the proposal distribution
  is written as q(?g ?g-1, I).

32
Markov chain dynamic

• The dynamics correspond to the proposal
  distribution with a mixture densitywhere A is
  the set of all dynamic add, remove, establish,
  break, exchange, diff
• We assume that we have the sample in the (g-1)th
  iteration
  ,and now propose a
  candidate ? for the gth iteration.

33
Markov chain dynamic

• Dynamics
• object hypothesis addition
• Sample the parameter of a new human hypothesis
  (kn1,mn1) and add it to ?g-1.
• object hypothesis removal
• establish correspondence

34
Markov chain dynamic

• break correspondence
• exchange identity
• Parameter update

35
Experimental results

• Evaluation on an outdoor scene

36
(No Transcript)
37
Experimental results

• There are 20 occlusions events overall, nine of
  which are heavy occlusions.
• We use 500 iterations per frame.
• Trajectory-based errors
• Trajectories of three objects are broken once (ID
  28 -gt ID 35, ID 31 -gt ID 32, ID 30 -gt ID 41)
• Trajectories initialization
• Some start when the objects are only partial
  inside.
• Only the initialization of three objects (object
  31, 50, 52) are noticeably delayed.
• Partially occlusion and/or the lack of contrast
  with the background are the causes of the delays.
• The detection rate and the false the false-alarm
  are 98.13 and 0.27 percent.

38
Conclusion

• A principled approach to simultaneously detect
  and track humans in a crowed scene.
• We formulate the problem as a Bayesian MAP
  estimation problem.
• The inference is performed by an MCMC-based
  approach to explore the joint solution space.
• The success lies in the integration of the
  top-down Bayesian formulation following the image
  formation process and the bottom-up features that
  are directly extracted from images.
