ISO 180006 Mode 1 Air Interface

1

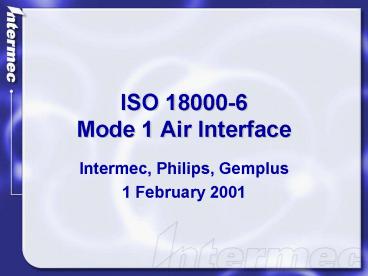

ISO 18000-6Mode 1 Air Interface

• Intermec, Philips, Gemplus
• 1 February 2001

2
Agenda

• Background
• Approach
• Basic Parameters
• IP Declaration
• Features
• Product Features
• Summary
• Current Applications
• Industry Groups
• Case Studies

3
Background

• Passive backscatter RFID in UHF band demonstrates
  performance characteristics suitable for item
  management
• Multiple proprietary UHF air interface
  technologies exist
• ANSI three (dpANS NCITS 2562001)
• ISO seven (18000-6)

4
Approach

• Combine UHF RFID technologies into an integrated
  air interface
• Intermec
• Philips
• Gemplus
• Ensure backward compatibility with existing
  technology base (clear migration path)

5
Basic Parameters
6
Basic Parameters
7
Basic Parameters
8
Basic Parameters
9
IP Declaration
10
IP Declaration
11
Features

• Single physical layer (driven by local regulatory
  requirements)
• Frequency 862 to 928 MHz Narrowband and FHSS
• Power up to 4 Watts EIRP
• Modulation On-Off Keying (OOK) /Amplitude Shift
  Keying (ASK) 11
• Coding Manchester/FM0
• Framing message structure preamble/delimiter/data
  /CRC
• Flexible data rate 20 to 80 kbps

12
Features (continued)

• Flexible and extensible command structure and
  anti-collision leverages existing standards
• Basic (ANS NCITS 2561999 Part 3 Clause 1)
• Expanded (ISO 15693, ISO 18000-3 Mode 1)
• Extended (ISO 18000-3 Mode 2)
• Anti-collision methods optimized for linearity
  with multiple tags

13
Features (continued)
14
Features (continued)

• Multiple access methods
• Group selection
• Single byte read and write
• Multiple byte read and write
• Automatic read
• Addressed and Un-addressed transactions
• Lock status

15
Features (continued)

• Single data storage element
• 128 bytes (1024 bits) 110 bytes user memory
• Read/Write
• Lockable
• Supports ISO 15962 services

16
Features (continued)

• Coexistence
• Reader-talk-first operation allows tags to
  coexist with other RFID systems
• Packetized interrogator-tag transmissions provide
  quiet time and improve coexistence with other
  systems
• Frequency hopping and low out-of-channel emission
  improve coexistence with WLAN
• Capability to operate at a low duty cycle without
  system degradation

17
Features (continued)

• Error Protection
• Data bit protection
• Manchester encoding on forward link
• 2 samples/bit
• FM0 encoding on return link
• 2 samples/bit
• Packet protection
• CRC-16 on forward and return links
• Protocol protection
• Unique tag S/N on forward link packets

18
Product Attributes
Reported to ANSI MH10
19
Product Attributes
Reported to ANSI MH10
20
Product Attributes
Reported to ANSI MH10
21
Product Attributes
Reported to ANSI MH10
22
Product Attributes
Reported to ANSI MH10
23
Summary

• Integrated RFID technologies
• Single physical layer
• Flexible command structure
• Single data storage element (memory)
• Robust error protection
• Supports and leverages existing RFID product base
• Fair and reasonable licensing
• Multiple suppliers

24
Current Applications

• Intelligent labels
• Supply chain source tagging
• Multi-purpose tags and components
• Pallets and reusable containers
• Embedded systems (PCBs, electronics)
• Transportation and intermodal containers

25
Industry Groups

• American National Standard 256 (ANS NCITS
  2561999) is the RFID standard for item
  management.
• Official U.S. standard 9/99
• Undergoing first revision to include Intellitag
  UHF air interface (dpANS NCITS 2562001 Section
  4, Clause 2) Q1/01
• ANSI MH 10/SC 8 drafted material handling
  standard (ANSI MH10.8.4 Unit Loads and
  Transport Packages RFID Tags and Labels) based
  on dpANS NCITS 2562001 Section 4, Clause 2

26
Industry Groups

• ISO TC 104 / SC 4 drafted electronic seal tag
  (RFID) standard based on dpANS NCITS 2562001
  Section 4, Clause 2
• EAN.UCC GTAG in process of defining global RFID
  tag air interface for use in the supply chain and
  logistics. A version of this air interface has
  been submitted and is under consideration.

27
Case Studies

• Georgia Pacific Returnable Plastic Containers
  (RPC)
• Marconi InfoChain Metallic container and pallet
  tracking
• SystemConcepts, Inc. Automotive tracking
• Genesta Automotive and pallet tracking
• ODell Engineering Limited Metallic material
  tracking
• TransCore - Transportation
