Title: TPB Models Development Status Report


1

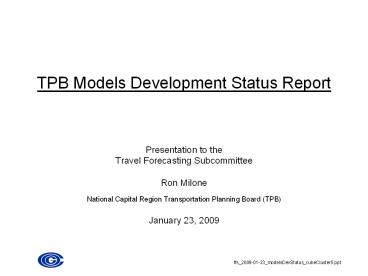

TPB Models Development Status Report
  • Presentation to the
  • Travel Forecasting Subcommittee
  • Ron Milone
  • National Capital Region Transportation Planning
    Board (TPB)
  • January 23, 2009

tfs_2009-01-23_modelsDevStatus_cubeCluster5.ppt
2
Version 2.3 Model Development
  • Activities in motion since last meeting
  • 2007/8 HH travel survey file cleaned
  • Updated (3,700) TAZ system remains under review
  • Project for improving the TPBs use of GIS
    technology to facilitate network development
    remains in progress
  • Approaches for reducing Version 2.3 model
    execution times have been explored

3
Speeding up model executions
  • Four approaches identified
  • Faster hardware ?
  • New traffic assignment solution algorithms under
    development by Citilabs, Inc. ?
  • Decrease the number of speed feedback iterations
    ?
  • Implementation of distributed processing (DP)
    capability that currently exists in Cube Voyager
    ?

4
Reducing Speed Feedback Iterations in Version 2.3
  • Investigation Pre-existing model outputs
    summarized by iteration (year 2030)
  • VMT by facility type
  • Total transit trips by trip purpose

5
Version 2.3 VMT by iteration
6
Ver.2.3 Transit Trips by Iteration
7
Conclusions based on iteration summaries
  • Global metrics summaries indicate that results of
    iteration 3-4 are not substantially different
    than those of iteration 6
  • Finer detail iteration summaries should be
    analyzed (e.g., screenline, link level, possibly
    i/j level)

8
Implementing Distributed Processing
  • Current hardware/software specifications used by
    TPB
  • Preliminary DP work Identifying the most
    time-consuming modeling steps
  • Overview key points regarding the deployment of
    DP with Cube Voyager (a.k.a. Cube Cluster)
  • Experience gained by TPB thus far

9
Travel model server specifications
  • Hardware (cogtms002)
  • High-end workstation (not a true server)
  • Two CPUs, each with four cores 8 cores
  • Intel Xeon X5365 Chip speed 3.0 GHz
  • System bus 1,333 MHz L2 Cache 8 MB per CPU
  • Memory 4 GB RAM
  • Hard drive 2.27 TB direct-attach storage array
  • Software
  • Server operating system, so that the computer can
    operate like a server (Windows Server 2003)
  • Citilabs Cube Base 5.0.2 Citilabs Cube Voyager
    5.0.2
  • Note We have moved from TP 4.1.1 to Voyager
    5.0.2 for the Ver. 2.3 model
  • Server (cogtms002) is shared by 4-6 modelers

10
Cube Cluster Preliminary work
  • Identify the most time-consuming modeling steps
    (Ver. 2.3 model)
  • Model execution time by iteration (cogtms002)

11
Cube Cluster Preliminary work
  • Model execution time by modeling step (iteration
    6)

Minutes ?
Model Step
12
Cube Cluster Overview
  • Spread the computing load across
  • Multiple computers connected via a LAN
  • Multiple CPUs within one computer, or multiple
    cores within a CPU or a set of CPUs in a computer
    (the current approach being tested by TPB staff)
    or
  • Both
  • Each processor or core is referred to as a node
  • There is generally a main process and one or more
    sub-processes
  • Cube Cluster works with Voyager, not with TP
  • Two flavors of distributed processing in Voyager
  • Intra-step distributed processing (IDP)
  • Multi-step distributed processing (MDP)

13
Cube Cluster Overview
  • Intra-step distributed processing (IDP)
  • IDP breaks up zone-based processing of vectors or
    matrices into zone groups that can be processed
    concurrently on multiple computing nodes
  • Works for only two modules MATRIX, HIGHWAY
  • Multi-step distributed processing (MDP)
  • More general than IDP
  • Can be used to break up processing conducted by
    any module in Voyager, as well as any
    user-written program (e.g., Fortran)
  • Caveat the distributed blocks and the mainline
    process must be logically independent of each
    other.
  • For example, you cannot run path skimming
    procedures before you update the speeds on the
    network that will be skimmed. However, you can
    assign peak and off-peak networks concurrently in
    most models, since these steps are generally
    independent of each other.

14
Cube Cluster Key points
  • Because of the zone-independent requirement on
    IDP and the step-independent requirement on MDP
  • it requires careful planning and setup by the
    user to implement DP
  • Cube Cluster has limited error-handling
    capabilities
  • It uses a file-based signaling method to
    communicate between the main process and the
    sub-process(es)
  • If a sub-process crashes, the main process will
    wait indefinitely
  • Best to use DP on a model that has been cleaned
    of syntax errors
  • In general, DP works well for computationally
    intensive applications (e.g. doing hundreds of
    matrix computations for each zone in a mode
    choice step), but will result in less time
    savings for disk intensive procedures (e.g.
    combing 3 matrix files into one matrix file)

15
Cube Cluster TPB experience
  • AECOM did some work in this area, while under
    contract with us
  • Work is undocumented, but we have reviewed some
    of their work
  • Lesson Things can get complicated
  • TPB staff
  • Tested IDP (for MATRIX and HIGHWAY) on the
    highway assignment step, since this is the most
    time-consuming step

16
Cube Cluster TPB experienceAdding code for DP
  • Global control of DP options (in your script)
  • DISTRIBUTE INTRASTEPT MULTISTEPF
  • Initiate IDP of the current MATRIX or HIGHWAY
    step (in your script)
  • DistributeINTRASTEP ProcessID'mwcog',
    ProcessList1-4
  • Open up one or more cluster nodes
  • Interactively Cube Base gt Utilities gt Cluster
    Node Management
  • Command line
  • Voyager
  • start Voyager.exe mwcog1.script /wait -Pvoya
  • Cluster utility
  • start Cluster ProcID ProcList
    Start/Close/List Exit
  • These commands would generally be in the batch
    file used to launch your script. Up to now, we
    have used the interactive approach and the
    Voyager command.

17
Cube Cluster TPB experience
  • Highway assignment Running IDP with 3-4
    sub-processes results in a 50 time savings
  • 83 minutes should now take about 42 min.
  • Time savings
  • 42 x 7 294 min (4.9 hours)
  • So 18.5 hours becomes 13.6 hours (25 savings)

18
Conclusions
  • Running time can be reduced by
  • Reducing the number of speed feedback steps
  • Implementing DP
  • New hardware (?) We need to use benchmarks to
    assess speed, not simply the rated speed of the
    CPU in GHz
  • Future steps
  • Optimizing the use of IDP and/or MDP in executing
    traffic assignment and other steps (mode choice
    and transit fare building)
  • Investigate improved traffic assignment
    algorithms
  • These methods reach a higher level of convergence
    using a smaller number of iterations, so they
    have the potential to save us time
