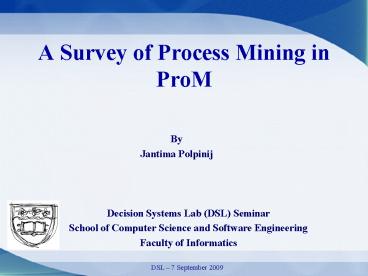

Title: A Survey of Process Mining in ProM


1
A Survey of Process Mining in ProM
  • By
  • Jantima Polpinij

Decision Systems Lab (DSL) Seminar School of
Computer Science and Software Engineering Faculty
of Informatics
DSL 7 September 2009
2
Outline
  • - What is Process Mining?
  • Objectives of Process Mining
  • Background of Process Mining
  • Current Process Mining Techniques
  • Effectiveness of Process Mining
  • A Process Mining Tool ProM

DSL 7 September 2009
3
What is Process Mining?
  • Process mining is to automatically determine and
    analyse actual process execution How the
    processes are performing in a complete new and
    process oriented way.
  • The basic idea behind Process Mining is to
    extract knowledge from event logs, recorded by IT
    systems.
  • Data Mining practice has been developed and
    adapted to create the business process-mining
    techniques that are now being used to mine data
    logs containing process execution data.

DSL 7 September 2009
4
What is Process Mining? (cont)
  • Note that, this concept is not limited to IT
    system, it can also be used to monitor other
    operational processes or system such as
  • Complex workflows in a large enterprise
  • Complex device working (e.g. X-ray machines,
    supercomputer, etc.)

DSL 7 September 2009
5
What is Process Mining? (cont)
  • An example of Process Mining Paradigm

1. Information System It contains valuable
information about (the performance of) the
organization.
2. The Event Logs It contains historical data of
actual process execution. Indeed, it contains the
implicit answers to the famous questions Who
did, What, When and How.
3. How to get any answer about process execution
it can extract any answer through a process
mining technique.
An Example of Process Mining Paradigm
DSL 7 September 2009
6
Objectives of Process Mining
  • Using the knowledge that is extracted from event
    logs
  • To maintain business processes
  • To improve real business processes
  • To (re)design actual business process

An Example of Process Redesign Cycle
DSL 7 September 2009
7
Background of Process Mining Techniques (1)
  • - Agrawal et al. (1998) were early pioneers of
    process mining. Their algorithmic
  • approach to process mining allowed the
    construction of process flow graphs from
  • execution logs of a workflow application.
  • - The discipline of process mining also has its
    roots in the work of Cook and Wolf (1998) who
    attempted to discover software process models
    from the data contained in event logs.
  • - van der Aalst (2004) compares the method of
    extracting process models from data with that of
    distillation.
  • - In terms of business process mining, van der
    Aalst (2004) states that almost any transactional
    information system can provide suitable data.

References Agrawal, R., Gunopulos, D.,
Leymann, F. (1998), "Mining process models from
workflow logs", in Schek, H.J. (Eds),Proceedings
of the 6th International Conference on Extending
Database Technology Advances in Database
Technology, Springer Verlag, Heidelberg, .
Cook, J.E., Wolf, A.L. (1998a), "Discovering
models of software processes from event-based
data", ACM Transactions on Software Engineering
and Methodology, Vol. 7 No.3, pp.215-49. van
der Aalst, W.M.P. (2004a), "Process mining a
research agenda", Computers in Industry, Vol. 53
pp.231-44.
DSL 7 September 2009
8
Background of Process Mining Techniques (2)
  • van der Aalst (2003) identifies two broad types
    of workflow meta models
  • (1) Block-orientated meta model
  • (2) Graph-orientated meta model
  • Each model contains with their own language and
    graphical representation.
  • - Aguilar-Saven (2004) adds net-based languages
    to this definition (with block-oriented
    models/languages being grouped under the term
    workflow languages).

An Example of Block-oriented Meta Model
References van der Aalst, W.M.P. (2003),
"Workflow mining a survey of issues and
approaches", Data Knowledge Engineering, Vol.
47 pp.237-67. Aguilar-Saven, R.S. (2004),
"Business process modelling review and
framework", International Journal of Production
Economics, Vol. 90 pp.129-49.
DSL 7 September 2009
9
Background of Process Mining Techniques (3)
  • - The most common form of graph oriented
    meta-model is the directed graph.
  • Agrawal et al. (1998) was one of the first to
    use directed graphs in process mining.
  • The author describes a number of constructs
    involved in the actual graph. Activities, usually
    enclosed in boxes or circles, are referred to as
    vertices and the arrows between the activities,
    that indicate the direction of flow, are known as
    edges.

Examples of Graph-oriented Meta Model
References Agrawal, R., Gunopulos, D.,
Leymann, F. (1998), "Mining process models from
workflow logs", in Schek, H.J. (Eds),Proceedings
of the 6th International Conference on Extending
Database Technology Advances in Database
Technology, Springer Verlag, Heidelberg.
DSL 7 September 2009
10
Current Process Mining Techniques
  • There are several techniques that may be used to
    perform mining of business process such as
  • Genetic algorithms Algorithms designed around
    the process of Darwinian natural selection (Alves
    de Medeiros et al. 2004)
  • General algorithmic approach Custom algorithms
    designed for mining processes by individual
    authors (van der Aalst and Song, 2004) Petri
    Net.
  • Markovian approach An algorithm that examines
    past and future behaviour to define a potential
    current state (Cook and Wolf, 1998a).
  • Neural network Models the human mind in its
    ability to learn and then identify patterns in
    data (Cook and Wolf, 1998a).
  • Cluster analysis Divides a group of solutions
    into homogenous sub groups (Schimm, 2004).

DSL 7 September 2009
11
Effectiveness of Process Mining
  • Using process mining, typical manager questions
    that can be answered include

- What is the most frequent path in a process? -
To what extend do the cases comply with a process
model? - What are the routing probabilities in a
process? - What are the throughput times of a
cases? - What are the service times for a
tasks? - When will a case be completed? - How
much time was spent between any two tasks in a
process? - What are the business rules in a
process, and are they being obeyed? - How many of
people are typically involved in a case? - Which
people are central in an organization?
DSL 7 September 2009
12
A Process Mining Tool ProM
  • ProM (Process Mining) is a generic open-source
    framework for implementing process mining tools
    in a standard environment.
  • It is an extensible framework that supports a
    wide variety of process mining techniques in the
    form of plug-ins.
  • It is platform independent as it is implemented
    in Java.
  • The ProM framework receives as input logs in the
    Mining XML (MXML) format.

DSL 7 September 2009
13
Mining Plugins
  • There are mining plugins, such as
  • Plugins supporting control-flow mining
    techniques (such as the Alpha algorithm, Genetic
    mining, Multi-phase mining, ...)
  • Plugins analysing the organizational perspective
    (such as the Social Network miner, the Staff
    Assignment miner, ...)
  • Plugins dealing with the data perspective (such
    as the Decision miner, ...)
  • Plugins for mining less-structured, flexible
    processes (such as the Fuzzy Miner)
  • Elaborate data visualization plugins (such as
    the Cloud Chamber Miner)
  • Furthermore, there are analysis plugins dealing
    with
  • The verification of process models (e.g., Woflan
    analysis)
  • Verification of Linear Temporal Logic (LTL)
    formulas on a log
  • Checking the conformance between a given process
    model and a log
  • Performance analysis (Basic statistical
    analysis, and Performance Analysis with a given
    process model)

DSL 7 September 2009
14
An Overview of Process Mining in ProM
DSL 7 September 2009
15
Petri Net
  • It is one of several mathematical modelling
    languages for the description of discrete
    distributed systems.
  • A Petri net is a directed bipartite graph, in
    which the nodes represent transitions (i.e.
    discrete events that may occur), places (i.e.
    conditions), and directed arcs (that describe
    which places are pre- and/or post-conditions for
    which transitions).

Example of a bipartite graph
  • Petri nets were invented in August 1939 by Carl
    Adam Petri at the age of 13.

DSL 7 September 2009
16
Petri Net as Graphs
In Petri nets nodes of the first subset of
vertices are called places, nodes of the second
is transitions. ? Places usually model resources
or partial state of the system. The symbol of a
place is a circle or an ellipse ? Transitions
model state transition and synchronization. The
symbol of transition is a solid bar or a
rectangle ? The edges of the graph are called
arcs
Tokens ? The tokens are denoted by a solid dot
and can be placed inside the place symbol. ? They
indicate presence or absence of, for example,
resource. ? Places can hold any number of tokens
or only a limited number (capacitated places).
DSL 7 September 2009
17
Petri Net as Graphs (cont)
  • Transition (firing) rule
  • A transition t is enabled if each input place p
    has at least w(p, t) tokens.
  • An enabled transition may or may not fire.
  • A firing on an enabled transition t removes w(p,
    t) from each input place p, and adds w(t, p') to
    each output place p'.

DSL 7 September 2009
18
Petri Net as Graphs (cont)
Firing Example
2H2 O2 ? 2H2O
Starting graph
After firing
DSL 7 September 2009
19
Petri Net in ProM
  • The type of data in an event log determines
    which perspectives of process mining can be
    discovered.
  • ProM is used for mining control-flow from event
    logs.
  • If the log (i) provides the tasks that are
    executed in the process and (ii) it is possible
    to infer their order of execution and link these
    tasks to individual cases (or process instances),
    then the control flow perspective can be mined.

DSL 7 September 2009
20
An Example of Petri Net in ProM
Petri net illustrating the control-flow
perspective that can be mined from the event log
DSL 7 September 2009
21
Cleaning the Log
  • To get a better solution for mining knowledge
    from event logs, the log should be cleaned
    before mining knowledge.
  • In ProM, a log can be filtered by applying the
    provided Log Filter.
  • There are five log filters Processes, Event
    types, Start events, End event , and Events.
  • The processes log filter is used to select which
    processes should be taken into when running a
    process mining algorithm. Note that a log may
    contain one or more processes types.
  • - The event types log filter allows us to select
    the types of events (or tasks) that we want to
    consider while mining the log.
  • - The Start events filters the log so that only
    the traces (or cases) that start with the
    indicated tasks are kept.
  • - The End Events works in a similar way, but the
    filtering is done with respect to the final tasks
    in the log trace. The Event filter is used to set
    which events to keep in the log.

DSL 7 September 2009
22
The Examples of Effectiveness of ProM (1)
  • - To mine the control-flow of a process from an
    event log.

DSL 7 September 2009
23
The Examples of Effectiveness of ProM (2)
  • To mine organizational-related information about
    a process.
  • - It can help to answer questions regarding to
    social (organizational) aspect of an
    organization. The questions should be
  • 1. How many people are involved in a specific
    case?
  • 2. What is the communication structure and
    dependencies among people?
  • 3. How many transfers happen from one role to
    another role?
  • 4. Who are important people in the
    communication flow? (the most frequent flow)
  • 5. Who subcontracts work to whom?
  • 6. Who work on the same tasks?
  • - These and other related questions can be
    answered by using the mining plug-ins Social
    Network Miner and Organizational Miner, and the
    analysis plug-in Analyze Social Network.

DSL 7 September 2009
24
An Example of The Analyzer Social Network
  • - A social network is a description of the social
    structure between actors, mostly individuals or
    organizations.
  • - It indicates the ways in which they are
    connected through various social familiarities
    ranging from casual acquaintance to close
    familiar bonds.

DSL 7 September 2009
25
An Example of Organizational Miner
DSL 7 September 2009
26
Evaluation Mining Techniques in Prom
  • ProM uses the same evaluation techniques that
    often are used in information retrieval area
    Precision and Recall.
  • Recall is percentage of all relevant documents
    that are found by a search.
  • Precision is Percentage of retrieved documents
    that are relevant.

DSL 7 September 2009
27
Thank you
Write a Comment
User Comments (0)
About PowerShow.com
