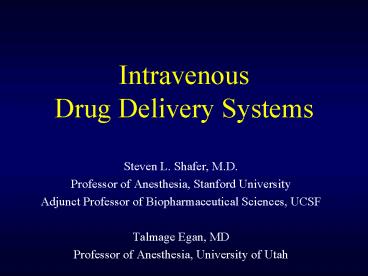

Intravenous Drug Delivery Systems

1
IntravenousDrug Delivery Systems

• Steven L. Shafer, M.D.
• Professor of Anesthesia, Stanford University
• Adjunct Professor of Biopharmaceutical Sciences,
  UCSF
• Talmage Egan, MD
• Professor of Anesthesia, University of Utah

2
Sir Christopher Wren
3
Sir Frederick Roller
4
Sir James Dialaflow
5
(No Transcript)
6
Calculator Pumps
Remifentanil
Propofol
7
2000
1900
100 years of research and this is all we get ???
8
(No Transcript)
9

10
Three Compartment Model
Rapid
Intermediate
Slow
11
Fentanyl Target 1 ng/ml
12
First TCI System for Anesthetics(Schwilden et
al, Bonn)
13
First TCI System for Relaxants (Westenskow et al,
Utah)
14
CACI First TCI System in the US (Reves, Jacobs,
Glass, Duke)
15
STANPUMP TCI Platform (Shafer, Stanford)
16
Barvais System (Belgium)
17
Rugloop Platform (De Smet, Struys,Ghent)
18
The Diprifusor the first commercial product
19
Start with bolus drug kinetics

20
Give by computer controlled infusion

21
Test refined kinetics

22
TCI Performance
Shafer (Anes-thesiology 1990)
23
TCI Performance with 3 different fentanyl data
sets
24
Remifentanil TCI

Predicted remifentanil concentration (ng/ml))
50
60
70
80
90
Measured remifentanil concentration (ng/ml)
25
Drugs with PK that havebeen verified for use
with TCI

• Propofol
• Fentanyl
• Alfentanil
• Sufentanil
• Remifentanil

• Thiopental
• Lidocaine
• Midazolam
• Lorazepam
• Dexmedetomidine

And this is just the Stanford research
26
(No Transcript)
27
TCI permits surfing the concentration vs.
response relationship
28
Thiopental EEG Trial
29
Titrating the Plasma
30
Performs poorly at the site of drug effect!
31
Targeting the Effect Site
32
Plasma controlled vs. effect site controlled
propofol TCI (Rugloop)
33
Improved outcomes Demonstrated with Rugloop
34
Propofol PK Changes With Alfentanil
Pavlin, et al
35
Thiopental Pharmacodynamic Trial
36
Thiopental Pharmacodynamics
37
Propofol for ICU Sedation

• Acknowledgements
• Dr. Juliana Barr
• Katie Zomorodi
• David Goodale

38
Study Design
39
Propofol ICU Pharmacokinetics
40
Optimal Pharmacokinetic Model
Best 13 MDAPE
Worst 70MDAPE
Plasma Propofol Concentration (mg/ml)
Hours Since Initial Dose
41
Propofol Dosing in the ICU
For 25, 50, and 75 mg/kg/min
2.5

Women
Men
2.0
75
1.5
50
1.0
Small
25
0.5
0.0
2.5
2.0
Plasma Propofol Concentration (mg/ml)
1.5
Big
1.0
0.5
0.0
2.5
2.0
1.5
Obese
1.0
0.5
0.0
1
10
100
1000
10000
1
10
100
1000
10000
Minutes Since Beginning of Infusion
Based on Lean Body Mass correction for gender
42
CSHT calculations are actually TCI simulations
Egan et al (Anesthesiology 1993)
43
How do you want to fly ???
44
Propofol Sedation Delivery System
45
The Automated Responsiveness Measure for
Procedural Sedation

• Invented by Randy Hickle, MD
• Potential as a feedback system for sedation
  delivery

46
Continuum of Depth of SedationDefinition of
General Anesthesia and Levels of Sedation /
Analgesia(Developed by the American Society of
Anesthesiologists)(Approved by ASA House of
Delegates on October 13, 1999)
Reflex withdrawal from a painful stimulus is
NOT considered a purposeful response
47
First Loss of ARMvs. Transition to Deep Sedation
5
Loss of ARM
4.5
Transition to Deep Sedation
g/ml)
4
3.5
3
2.5
Propofol Effect Site (
2
1.5
1
0.5
0
0
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
Subject
48
ARM Summary

• First loss of ARM consistently precedes deep
  sedation
• Alerts clinician to sedation level
• Automatically reduces dose if patient remains
  non-responsive
• Override required for increasing dose
• ARM provides basis to individualize dosing
• Assessment of drug effect for non-anesthesiologist

• Reduces risk of transition to general anesthesia

Doufas et al. Anesthesiology. 2004 1011112-21.
49
Software

• STANPUMP (Original DOS)
• STELPUMP (DOS)
• RUGLOOP (Windows)
• IVA-SIM (DOS - obsolete)
• http//anesthesia.stanford.edu/pkpd
