Title: Character Matching


1

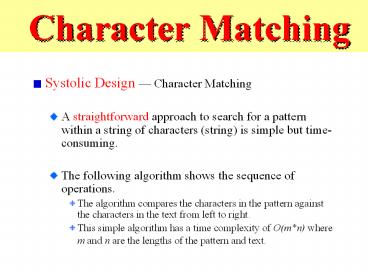

Character Matching
  • Systolic Design Character Matching
  • A straightforward approach to search for a
    pattern within a string of characters (string) is
    simple but time-consuming.
  • The following algorithm shows the sequence of
    operations.
  • The algorithm compares the characters in the
    pattern against the characters in the text from
    left to right.
  • This simple algorithm has a time complexity of
    O(mn) where m and n are the lengths of the
    pattern and text.

2
Systolic Design Character Matching
  • Search for a Pattern

T-index ? 0 While T-index lt (n-m1) DO Save ?
T-index P-index ? 0 While P-index lt m and
Textsave PatternP-index DO Save ? Save
1 P-index ? P-index 1 END If P-index m
then return T-index ? T-index 1 END
3
Systolic Design Character Matching
  • Concept of the finite state automaton can be used
    to perform pattern matching operation in a time
    complexity of O(n).
  • Knuth proposed an algorithm with the time
    complexity of O(mn).

4
Systolic Design Character Matching
  • The proposed model is used for character matching
    (pattern Matching) operation.
  • The model is composed of two kind of cells
  • Comparator cells, and
  • Accumulator cells.

5
Systolic Design Character Matching
  • The comparator cells receive text and patterns
    from opposite directions and generate the
    Comparison results.
  • The accumulator cells transmit information
    regarding delimiters and "don't care" signals.
    In addition, it accumulates the partial match
    results.

6
  • Systolic Design Character Matching

7
Systolic Design Character Matching
  • Algorithm in C cells

Pout ? Pin Sout ? Sin dout ? (Pin Sin)
8
Systolic Design Character Matching
  • Algorithm in A cells

lout ? lin Xout ? Xin IF lin THEN rout ? t t ?
True ELSE rout ? rin t ? t AND (Xin OR din)
9
Systolic Design Character Matching
  • Detect pattern ISSI in text MISSISSIPPI in a
    systolic organization composed of seven cells.

10
Systolic Design Character Matching
  • Initial configuration

11
Systolic Design Character Matching
12
Systolic Design Character Matching
13
Systolic Design Character Matching
14
Systolic Design Character Matching
15
Systolic Design Character Matching
16
Systolic Design Character Matching
17
Systolic Design Character Matching
  • General Characteristics
  • Hardware utilization is low, since during each
    clock pulse only half of the cells are active.
  • Patterns have to be cycled through the array
    continuously to meet all the text characters.
  • Possible detection of more hits in the input text.

18
Systolic Design Join Operation
  • Within the scope of relational databases, join is
    one of the most time consuming operations.

19
Systolic Organization
  • Assume we have two product-compatible relations
    (sets) A and B. Each relation is composed of
    several tuples (records).
  • Further, let ? ???, ?, ?, ...?, then the ?-Join
    of relation A on attribute X with relation B on
    attribute Y is a relation consist of tuples
    t(lta,bgt) from Cartesian product of A and B such
    that tx ? ty is true.

20
Systolic Design Join Operation
  • Assume we have the following two relations

21
Systolic Design Join Operation
22
Systolic Design Join Operation
  • In relational database system, join operation is
    used as a measure to evaluate the performance of
    the system.
  • This is due to the
  • Complexity of the join, and
  • application of join in de-normalizing the
    relations.

23
Systolic Design Join Operation
  • Let us look at a systolic model for join
    operation
  • A collection of basic cells replicated in a two
    dimensional space.
  • System is highly parallel and satisfies the
    constraints imposed by the VLSI technology.

24
Systolic Design Join Operation
  • A Systolic Cell

as and bs are the attributes and t is a control
signal that reflects the comparison between a and
b.
25
Systolic Design Join Operation
  • A Systolic Cell

Tout ? tin ? (ain ? bin) aout ? ain bout ? bin
26
Systolic Design Join Operation
27
Systolic Design Join Operation
28
Systolic Design Join Operation
29
Systolic Design Join Operation
30
  • Systolic Design Join Operation

31
Systolic Design Join Operation
32
Systolic Design Join Operation
