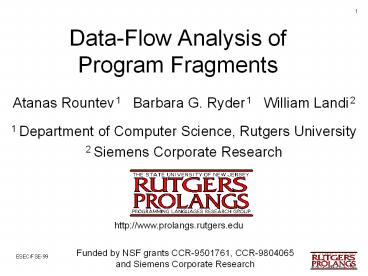

Data-Flow Analysis of Program Fragments

• Atanas Rountev 1 Barbara G. Ryder 1 William
  Landi 2
• 1 Department of Computer Science, Rutgers
  University
• 2 Siemens Corporate Research

http//www.prolangs.rutgers.edu
Funded by NSF grants CCR-9501761, CCR-9804065 and
Siemens Corporate Research
2
Overview

• Motivation
• Theoretical model
• Application for pointer alias analysis
• Experimental results

3
Data-Flow Analysis

• Information about program behavior
• Defines
• Graph for the control-flow structure
• Lattice L of data-flow values
• Transfer functions fi L ? L
• Flow sensitivity propagate data-flow values by
  respecting execution order of statements

4
Limitations of Whole-Program Analysis

• Traditionally designed as whole-program analysis
• Precise analyses do not scale for large programs
• Incomplete programs cannot be analyzed e.g.,
  programs with libraries
• Information may be needed only for a small part
  of a large program

5
Fragment Data-Flow Analysis

• Idea analyze a program fragment instead of a
  whole program
• Use summary information about the rest of the
  program
• Advantages
• Analyze fragments of large programs
• Analyze incomplete programs
• Analyze only the interesting part of the
  program

6
Questions

• What is the analysis structure?
• What is the relationship to whole-program
  analysis?
• How to define and ensure safety?
• What factors affect analysis cost and precision?

7
Model of Whole-Program Analysis

• Consider only flow-sensitive analysis
• Interprocedural control-flow graph
• Lattice L of data-flow values
• Node transfer functions fi L ? L
• Solutions and safety

Entry
Call
Call
Procedure
Return
Return
Exit
8
Fragment Analysis Structure

• Input fragment whole-program information
• Graph, lattice , node transfer functions
• Boundary nodes entry, call, return
• Boundary entry summary value from
• Boundary call summary function

Fragment
Call
Entry
Call
Entry
Call
Exit
Return
9
Fragment Analysis Safety

• All possible containing programs p ? Progs
• Abstraction relation
• If , then safely
  abstracts x
• A safe solution safely abstracts the most precise
  whole-program solution for every p
• Sufficient requirements for analysis safety
  transfer functions, boundary summaries

10
An Application

• Initial whole-program flow-insensitive analysis
• Fragment analysis input
• Flow-insensitive solution
• Call graph
• Use flow-insensitive solution at the boundary
• Two fragment pointer alias analyses

11
Pointer Alias Analysis

• Aliases refer to the same memory location
• Example p x (p,x)
• Whole-program flow- and context-sensitive
  analysis Landi-Ryder
• Fixed and non-fixed locations x, s.f, p, p?g
• Resolution of through-deref assignments
• Example p 0

12
Fragment Alias Analyses

• Input whole-program flow-insensitive solution
• Flow-insensitive analysis almost linear time
  Steensgaard, Zhang-Ryder-Landi
• Basic analysis assumptions at boundary
• Extended analysis include called procedures no
  boundary calls

13
Experiments

• Sun Sparc-20, 75 MHz, 352 MB
• 6 data programs 8K - 25K LOC
• 12 fragments
• Cohesive subsets of procedures implementing
• certain functionality
• Size 2-22 of program size, median 7
• Resolved through-deref assignments
• Metric average number of modified fixed
  locations

14
Analysis Precision

15
Analysis Time

• Flow-insensitive analysis
• Range 2-9 s
• Median 7 s
• Basic analysis
• Range 18-99 s
• Median 52 s
• Extended analysis
• Range 18-187 s
• Median 85 s

16
Summary

• Fragment analysis as an alternative to
  whole-program analysis
• Theoretical issues of safety and feasibility
• Application using inexpensive whole-program
  analysis
• Initial experiments
• Extended analysis significant precision increase
  at
• a practical cost
• Ongoing work scalability, incomplete programs

17
The New Lattice

• What is the set of names?
• Number of names should not depend on the size of
  the whole program
• Each whole-program name is
• preserved
• ignored
• represented by a placeholder
• One placeholder name per equivalence class

18
Fragment Sizes
