Chapter 16 Stacks and Queues

1

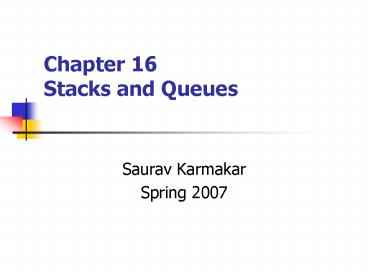

Chapter 16Stacks and Queues

• Saurav Karmakar
• Spring 2007

2
Objective

• In this chapter we will learn
• Stacks
• Queues
• Different implementations (arrays and linked
  list) of both
• Comparison of implementation

3
Stack

• A stack is a data structure that works on the
  principle of
• Last In First Out (LIFO).
• So last item put on the stack is the first item
  that can be taken off, like a physical stack of
  books/plates.
• In stack new elements are added to and removed
  from the top of the structure.

4
Two Implementations of Stack

• As Vector
• Storing the items contiguously .
• As List
• Storing items noncontiguously.

5
Stack

• Can be implemented with an array and an integer
  that indicates the top element of the stack
  (tos).
• Empty stack tos -1.
• Basic Operations PUSH and POP.

6
How stack works
pop(b)
push(a)
push(b)
Empty stack







a


b
a



a
tos1
tos0
tos0
tos -1
7
Stack Vector Implementation

• template ltclass Objectgt
• class Stack
• public
• Stack( )
• bool isEmpty( ) const
• const Object top( ) const
• void makeEmpty( )
• void pop( )
• void push( const Object x )
• Object topAndPop( )
• private
• vectorltObjectgt theArray
• int topOfStack

A stack can be implemented with an vector and an
integer that indicates the index of the top
element.
//construct the stack Template ltclass
Objectgt StackltObjectgtStack()the
Array(1) topOfStack -1
//test if the stack is logically empty Template
ltclass Objectgt StackltObjectgtisEmpty() const
return topOfStack -1
8
The push/pop function (vector-based)

• template ltclass Objectgt
• void StackltObjectgtpush( const Object x )
• if( topOfStack theArray.size( ) - 1 )
• theArray.resize( theArray.size( ) 2
  1 )
• theArray topOfStack x
• // If there is no vector doubling, push
  takes constant time, otherwise it
• // takes O(N) time. But it does not happen
  often.

template ltclass Objectgt void StackltObjectgtpop(
const Object x ) if( isEmpty())
throw UnderflowException() topOfStack--
9
Linked List Implementation

• Advantage of the linked list using only one
  pointer per item at a time.
• Disadvantage of contiguous vector implementation
  using excess space equal to the number of
  vacant array items .

10
Linked List Implementation of Stack

• The stack class can be implemented as a linked
  list in which the top of the stack is represented
  by the first item in the list.

topOfStack
11
Linked List Implementation of Stack

• Each stack item stores
• element value
• pointer to next element

12
Application of Stack

• Recognizing palindromes
• Checking balanced expressions
• Evaluating algebraic expressions is easier.
• Searching networks, traversing trees (keeping a
  track where we are).

13
Infix to Postfix Conversion

• Scan the Infix string from left to right.
• Initialise an empty stack.
• If the scannned character is an operand, add it
  to the Postfix string.
• If the scanned character is an operator and if
  the stack is empty Push the character to stack.
• If the scanned character is an Operator and the
  stack is not empty, compare the precedence of the
  character with the element on top of the stack
  (topStack).
• If topStack has higher precedence over the
  scanned
• character Pop the stack
• else Push the scanned
  character to stack.
• Repeat this step as long as stack is not
  empty and topStack has
• precedence over the character.
• Repeat this step till all the characters are
  scanned.
• (After all characters are scanned, we have to add
  any character that the stack may have to the
  Postfix string.) If stack is not empty add
  topStack to Postfix string and Pop the stack.
• Repeat this step as long as stack is not empty.
• Return the Postfix string.

14
Example String abc-d
             STACK                      PostfixString


15
Postfix Expression Evaluation

• for each character C in a given string
• if C is an operand
• push C onto stack
• else // C is an operator
• pop item from stack, and store in Opr2
• pop item from stack, and store in Opr1
• result Opr1 C Opr2, using C as an operator
• push result onto stack

16
QUEUE

• A queue is an abstract data struture where
  various entities such as data, objects, persons,
  or events are stored and waiting to be processed.
• The most well known operation of the queue is the
  First-In-First-Out (FIFO) queue process .
• In a FIFO queue, the first element in the queue
  will be the first one out

17
Queue

• Can be implemented using
• Vector/Array
• Link List
• Two main Operations
• Enqueue
• Dequeue

18
Queue Vector/Array Implementation

• Store items in an vector/array with front item at
  index zero and back item at index Back.
• Enqueue is easy increment Back.
• Dequeue is inefficient all elements have to be
  shifted. (If use only one index)
• Result Dequeue will be O (N ).

19
Queue
Step 1. makeEmpty()

Back
Step 4. dequeue()
Back
Step 2. enqueue()
Back
a
b
Step 3. enqueue()
After dequeue()
Back
Back
a b
b
20
Better Idea

• Keep a Front index.
• To Dequeue, increment Front. Therefore, Dequeue
  takes constant time now.

21
Queue
Step 1. makeEmpty()
Step 4. dequeue()
Back

Back
Front
b
Step 2. enqueue()
Back
Front
a
After dequeue()
Front
Step 3. enqueue()
Back
Back
b
a b
Front
Front
22
Circular Implementation

• Previous implementation is O( 1 ) per operation.
• However, after vector.size() times enqueues, we
  are full, even if queue is logically nearly empty
  for dequeue opeartions on the elements.
• Solution use wraparound to reuse the cells at
  the start of the vector. To increment, add one,
  but if that goes past end, reset to zero.

23
Problem with the approach
Back
c d
Front
Solution Recycle / Wrap Around
Back
e c d
Front
24
Circular Example

• Both Front and Back wraparound as needed.

25
QUEUE--Vector Implementation

• Mostly straightforward maintain
• Front
• Back
• CurrentSize Current number of items in queue
• Only tricky part is vector doubling because the
  queue items are not necessarily stored in an
  array starting at location 0, and the contiguity
  of wraparound must be maintained.

26
Queue Vector Implementation

• Template ltclass Objectgt
• Class Queue
• public
• Queue()
• bool isEmpty() const
• const Object getFront() const
• void makeEmpty()
• Object dequeue()
• void enqueue (const Ojbect x)
• private
• vectorltObjectgt theArray
• int currentSize
• int front
• int back
• void increment (int x) const
• void doubleQueue()

• template ltclass Objectgt
• void QueueltObjectgtenqueue(const Object x)
• if(currentSize theArray.size())
• doubleQueue()
• increment( back)
• theArrayback x
• currentSize
• template ltclass Objectgt
• void QueueltObjectgtdoubleQueue()
• theArray.resize(theArray.size() 2 1)
• if(front ! 0)
• for(int i0 iltfront i)
• theArrayicurrentSize theArrayi
• back currentSize

27
Queue Vector Implementation cont.
template ltclass Objectgt Object QueueltObjectgtdequ
eue() if( isEmpty()) throw
UnderflowException() currentSize-- Object
frontItem theArrayfront increment(front) r
eturn frontItem
template ltclass Objectgt const Object
QueueltObjectgtgetFront() const if
(isEmpty()) throw UnderflowException()
return theArrayfront
template ltclass Objectgt void QueueltObjectgtmakeEm
pty() currentSize 0 front 0 back
theArray.size() 1
28
Linked List Implementation

• Advantage of the linked list is excess memory is
  only one pointer per item.
• In contrast, a contiguous vector implementation
  uses excess space.

29
Queue

• Same idea as like STACK, but has front and back

back
30
Comparison of the Two Methods

• Both of them run in constant time per operation.
• The vector version is likely to be faster.
• But it has two drawbacks
• The wraparound is a little confusing
• It might waste more space.

31
Deque/Double-Ended Queue

• A deque is a double-ended queue.
• A deque is a little modification on the queue
  data structure, where access is given to both the
  ends.
• Operations addFront, addRear,
• removeFront, removeRear.
• That is, a deque is especially optimized for
  pushing and popping elements at the beginning and
  end. As with vectors, storage management is
  handled automatically.

32
Common errors (Page 561)

• Do not delete the top node directly before
  adjusting the top of the stack pointer
• Be aware of memory leaks
• Access is constant time in both of these
  implementations.
