System Services

1

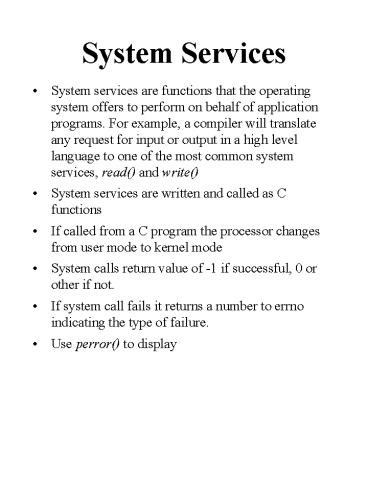

System Services

• System services are functions that the operating
  system offers to perform on behalf of application
  programs. For example, a compiler will translate
  any request for input or output in a high level
  language to one of the most common system
  services, read() and write()
• System services are written and called as C
  functions
• If called from a C program the processor changes
  from user mode to kernel mode
• System calls return value of -1 if successful, 0
  or other if not.
• If system call fails it returns a number to errno
  indicating the type of failure.
• Use perror() to display

2
Processes

• Definition - a process is a program in operation
• A reasonable analogy is baking a cake.
• The recipe for the cake is analogous to the
  program
• The process in the kitchen from obtaining the
  ingredients, mixing, baking and eating is
  analogous to the process.
• If the process is held up weve run out of
  sugar. The process is swapped out and a new one
  loaded (prepare the vegetables for main course
  i.e. a new process).
• This swap will require that we need to put away
  all the resources for baking the cake and get out
  new one for preparing main course although some
  may be the same process resources
• We will also need to keep a record of where we
  are process status

3

• Two things to note about processes
• There may be more than one program per process
  programs are frequently written separately and
  called during runtime.
• A program may be involved with one or more
  processes - switching on the oven and putting the
  food into it may be common and so called from
  other processes.

4
Processes
Dispatch
Enter
Exit
Not Running
Running
Pause
Figure 1 State Transition Diagram
Queue
Exit
Enter
Dispatch
Processor
Pause
Figure 2 Queuing Diagram
5
The Five State Model

• Running the process is being executed.
• Ready the process is sitting in a queue waiting
  its turn.
• Blocked the process is waiting for I/O or some
  other service.
• New the process has been created but not added
  to the pool of executable processes.
• Exit released from the pool of executable
  processes

6
Dispatch
Release
Admit
New
Ready
Running
Exit
Timeout
Event Occurs
Event Wait
Blocked
Figure 3 Five Process Model
Release
Processor
Ready Queue
Admit
Dispatch
Timeout
Event Occurs
Event Wait
Blocked Queue
Figure 4 Single Blocked Queue
7
Release
Processor
Ready Queue
Admit
Dispatch
Figure 5
Timeout
Event 1 queue
Event 1 Wait
Event 2 queue
Event 2 Wait
Event n queue
Event n Wait
Dispatch
Release
Admit
New
Ready
Running
Exit
Timeout
Event Occurs
Activate
Event Wait
Suspend
Figure 6
Blocked
Suspend
8
7 Stage Process Model
New
Activate
Dispatch
Release
Ready suspend
Ready
Running
Exit
Suspend
Timeout
Event Occurs
Event Occurs
Event Wait
Activate
Blocked suspend
Blocked
Suspend
9
Process Transitions

• Blocked ? Blocked, suspend If no processes have
  received I/O then a process is moved to secondary
  storage.
•
• Blocked, suspend ? Ready, suspend a process is
  switched when it receives the event it has been
  waiting for.
•
• Ready ? Ready, suspend this may occur in order
  to free up a sufficiently large block in main
  memory.
•
• New ? Ready, suspend and New ? Ready if a new
  process goes firstly to ready, suspend it gives
  the operating system time to create the necessary
  tables before it is swapped to the ready queue.
  If the process goes directly to the ready queue
  then creating tables with a "just in time"
  philosophy will reduce overheads.
•
• Blocked, suspend ? Blocked this scenario sounds
  daft. However if a process terminates, freeing up
  some main memory while a process in the Blocked,
  suspend is of higher priority than the others and
  the operating system has reason to believe that
  the blocking event may occur soon, then it is not
  so daft.
•
• Running ? Ready, suspend if the operating
  system if preempting a process because a higher
  priority process in the blocked, suspend queue
  has become unblocked, then the operating system
  could move it directly to ready suspend

10
Scheduling

• The long-term scheduler (or dispatcher) selects
  processes from this pool and loads them into
  memory for execution.
• The short-term scheduler (or CPU scheduler)
  selects from among the processes that are ready
  to execute, and allocates the CPU to one of them.
• Often, the short-term scheduler executes at
  least once every 100 milliseconds.
• The long-term scheduler, executes much less
  frequently e.g minutes between the creation of
  new processes in the system.
• The long-term scheduler controls the degree of
  multiprogramming (the number of processes in
  memory).
• An I/O-bound process is one that spends more of
  its time doing I/O than it spends doing
  computations.
• A CPU-bound process, on the other hand, is one
  that generates I/O requests infrequently, using
  more of its time doing computation than an
  I/O-bound process uses.
• If all processes are I/O bound, the ready queue
  will almost always be empty, and the short-term
  scheduler will have little to do.
• If all processes are CPU bound, the I/O waiting
  queue will almost always be empty, devices will
  go unused, and again the system will be
  unbalanced.
• The system with the best performance will have a
  combination of CPU-bound and I/O-bound processes.
• .

11
Threads

• Instead of completely suspending the process if
  we require a resource we could just suspend part
  of the process and carry on with a different
  part.
• So if we require, the butter to continue, we
  could suspend this part of the process and move
  back to weighing out the flour for the next batch
  of cakes.
• This would reduce the overheads substantially as
  now we still have to save some of the status but
  dont need to relinquish the resources like
  spoons bowls etc.
• The process will still be using the same files,
  memory locations, devices etc it is just
  jumping to a different location in the program
  code. This idea is known as multi-threading and
  each unit of execution is called a thread.
• However, process still needs to save status
  information state of registers, program
  counter, stack etc.

12
Process resource management in Unix

• Working directory.
• Program instructions
• Registers
• Stack
• Heap
• Process ID, process group ID, user ID, and group
  ID
• File descriptors
• Environment
• Signal actions
• Shared libraries

13
Process Control Block

• Process Identification
• Identifier of this process
• Identifier of parent process
• User Identifier
• Processor State Information
• User visible registers
• Control and status registers
• Program counter
• Condition codes
• Status information
• Stack pointers
• Process Control Information
• Scheduling and state information
• Process state ready, running,blocked etc.
• Priority
• Scheduling related information e.g. waiting time
• Event identity of the event it is waiting for
• Data structuring
• Processes may be linked

14
Thread resource management

• Stack pointer
• Registers
• Scheduling properties (such as policy or
  priority)
• Set of pending and blocked signals
• Thread specific data

15
(No Transcript)
16
Microsoft Windows

• A thread is Windows smallest kernel-level
  object of execution.
• Processes in Windows can consist of one or more
  threads.
• When a process is created, one thread is
  generated along with it, called the primary
  thread.
• Can create other threads that share its address
  space and system resources but have independent
  contexts, which include execution stacks and
  thread specific data.

17
Thread States in Windows

• Waiting state is the same as the Blocked state.
• Initialised state identifies a thread that is in
  the process of being created but is not yet ready
  to run.
• Terminated state indicates that the thread has
  ended but its resources have not been reclaimed
  by the system.
• Standby when it is between the time it is
  selected by the scheduler and time it is given to
  the CPU (it is in the queue).
• Transition state identifies that the thread is
  no longer blocked on the condition that it made
  to enter the Waiting state.

18
UNIX process creation

• fork() this system call creates a clone of
  itself and returns its process ID (PID) number.
• e.g
• int pid
• pid fork()
• exec() there are a series of these call and
  they basically overlays a current process with a
  program of your choice.
• Hence you can create a child process using fork()
  and then overlay it to produce a new process

19
The End
20
include ltstdio.hgt fatal(char s) perror(s) e
xit(1) main() int pid pid
fork() if (pid gt 0) wait((int
)0) printf("ls completed\n") exit(0) i
f (pid 0) execl(" /bin/ls", "ls", "-l",
(char )0) fatal("execl failed") fatal
("fork failed")
21

• When a system call is identified a C library
  routine runs which assigns the particular system
  call a number and then causes a software
  interrupt.
• This interrupt vector is called INT 0x80.
• This causes the CPU to go to the appropriate
  entry in the interrupt descriptor table, changes
  to kernel mode and jumps to a common system call
  handler, known as system_call().
• It then uses the system call number stored in EAX
  to index into a system dispatch table,
  sys_call_table to find the address of the kernel
  code which executes that particular system
  service.
