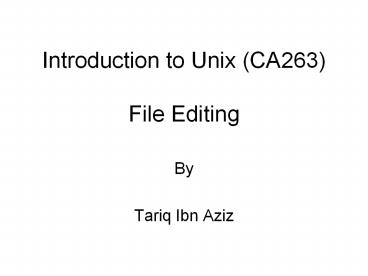

1Introduction to Unix (CA263) File Editing
2Objectives
- After reading this chapter, you should be able
to - Explain the basics of UNIX/Linux files, including
ASCII, binary, and executable files - Understand the types of editors
- Create and edit files using the vi editor
3The Unix Language
- ASCII, American Standard Code for Information
Interchange - Originally, ASCII used only 7 bits (0 and 1)
providing 128 characters - Extended ASCII uses 8 bits to store 256
characters. For example English letter H has a
decimal code 72. In term of bits, H is 01001000
4ASCII Text Files
- Computer files containing nothing but printable
characters are called text file. - Files containing nonprintable characters, such as
machine instructions, are called binary files. - Unicode offers up to 65,536 characters.
- Unicode was developed because 256 character in
ASCII are not enough to support some languages,
such as Chinese, that need more than 256
characters.
5ASCII Text File
6USING THE VI EDITOR
- The vi editor is a modal editor.
- It works in three mode
- Insert mode
- lets you enter text, is accessed by typing the
letter i - Command mode
- Which is started by pressing Esc
- Ex mode
- Employs an extended set of commands that were
initially used in an early UNIX editor called ex. - Press Esc and type () to enter extended command
7USING THE VI EDITOR
- Start the vi editor with the e option (vi e
filename), which places vi exclusively in ex
mode. - To use the vi editor, it is important to master
the following tasks - Creating a file
- Inserting, editing, and deleting text
- Searching and replacing text
- Adding text from other files
- Copying, cutting, and pasting text
- Printing a file
- Saving a file
- Exiting a file
8Creating a New File in the vi Editor
- Enter vi plus the name of the file you want to
create, such as vi data. - Press Esc, type w
9Creating a New File in the vi Editor
- Another Way to create a file
- open the vi editor without specifying the file
name with the vi command - You can save the file and specify a file name at
any time by pressing Esc, typing w filename
10Using the vi Editor (continued)
To create a new file in the vi editor, type vi
and the name of the new file at the command prompt
11Inserting Text
- Before you can insert text in your new file, you
must use the i (insert) command. - In insert mode, every character you type appears
on the screen. - You can return to command mode at any time by
pressing the Esc key.
12Repeating a Change
- When started, the vi editor is in command mode
- To insert text into a file, you must switch to
insert mode - You can repeat the line just entered with the
repeat command (.) - Note You must press Esc to use (.) to repeat the
command
13Moving the Cursor
- Designers of vi chose the letter keys because of
their relative position on the keyboard.
14Deleting Text
- While still in command mode
- To delete text, move to a character and then type
x - You can undo a command (reverse its effects) by
typing u - To search for a text pattern, type a forward
slash (/), type the pattern, and press Enter
15Searching and Replacing Text
- Searching and replacing is a line-oriented
command that executes independently of the cursor
position - To find more instances, type n while you are in
command mode
16Save File and Exit
- Saving a file and exiting vi
- You should always save the file before exiting
vi, otherwise changes are lost - To save a file and continue working on it, type
the w (write) command - While in command mode, use the wq (write and
quit) command to save and exit iv, or the zz
command to exit after saving - You can also use x to save and exit
17Save File and Without Exiting
18Information about file status
- If you are in an editing session and want to
review information about the file status, press
Ctrlg or CtrlG - The status line at the bottom of the screen
displays information, including line-oriented
commands and error messages.
19Adding Text from Another File
- To copy the entire contents of one file into
another file - (1) use the vi editor to edit the file you want
to copy into and - (2) use the command r filename, where filename
is the name of the file that contains the
information you want to copy
20Leaving vi Temporarily
- If you want to execute other UNIX/Linux commands
while you work with vi, you can launch a shell or
execute other commands from within vi. - Go to command mode
- Type !cal (a colon, an exclamation point, and
the command) - press Enter.
21Using the vi Editor (continued)
- Turn on line numbering when you want to work with
a range of lines and refer to the line numbers to
specify text - To turn on line numbering, use the set number
command
22Copying or Cutting and Pasting
- You can use the yy command in vi to copy a
specified number of lines - To cut the lines from the file and store them on
the clipboard, use the dd command.
23Printing Text Files
- Sometimes you want to print a file before you
exit the vi editor. - Type !lpr and then type the name of the file you
want to print. - You might have two printers, lp1 and lp2.To print
the file accounts to lp2, enter !lpr -P lp2
accounts and press Enter.
24Canceling an Editing Session
- You might have to cancel editing session.
- To cancel session, enter q! and press Enter.
25Getting Help in vi
- While you are in vi, press Esc, type !man vi,
and press Enter - Type q and press Enter to go back into your
editing session.
26Chapter Summary
- Bytes are computer characters stored using
numeric code (e.g., ASCII) - The vi editor is a popular choice among
UNIX/Linux users to edit text files
