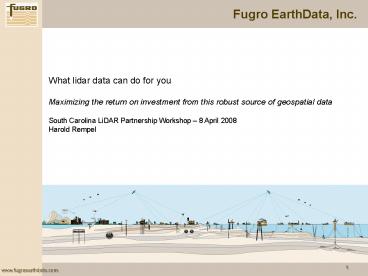

Fugro EarthData, Inc.
What lidar data can do for you Maximizing the
return on investment from this robust source of
geospatial data South Carolina LiDAR Partnership
Workshop 8 April 2008 Harold Rempel
2
Presentation Outline
  • Lidar 101
  • Principles of Lidar
  • Sensor
  • Aircraft
  • Advantage and Disadvantages
  • Lidar Accuracy
  • Project Design Considerations
  • Lidar Production Flow
  • Overview
  • Data Acquisition/Verification
  • Pre-processing/Calibration
  • Processing
  • Quality Control Processes

3
Presentation Outline
  • 2008 South Carolina Project
  • Deliverables Formats Specifications
  • Project Design
  • Aerial Acquisition - A Success Story
  • Hydro-Breakline Generation
  • Project Quality Measures
  • The Many Uses of Lidar
  • Lidar Applications
  • Feasible Products with SC Dataset
  • New and Future Services

4
Lidar 101
5
Lidar 101
P R I N C I P L E S
  • What lidar is not
  • All weather
  • Some haze is manageable fog and clouds are not
  • Target must be visible in the sensors EM range
  • Able to see through trees
  • LIDAR sees around trees, not through them. Fully
    closed canopies (rain forests) cannot be
    penetrated
  • Light (or laser) assisted radar
  • RADAR uses electro-magnetic (EM) energy in the
    radio range, LIDAR does not.

6
Lidar 101
P R I N C I P L E S
  • Operational principles
  • A pulse of light is emitted and the precise time
    is recorded at t1
  • The reflection of that pulse is detected and the
    precise time is recorded at t2
  • Using the constant speed of light, the delay
    (t2-t1) can be converted into a slant range
    distance.
  • range speed of light time
  • Knowing the position and orientation of the
    sensor, the XYZ coordinate of the reflective
    surface can be computed.

7
Lidar 101
P R I N C I P L E S
?
pivot
mirror
laser beam
target
8
Lidar 101
P R I N C I P L E S
Signal Breakdown
9
Lidar 101
S E N S O R
  • Basic Sensor Components
  • Laser Source
  • Laser Detector
  • Scanning mechanism controller
  • Electronics for timing emissions reflections
  • Airborne GPS (position, speed, direction)
  • Inertial Measurement Unit (attitude)
  • High Performance Computers
  • High Capacity Data Recorders

10
Lidar 101
AeroScan System
S E N S O R
Supporting electronics
Laser Detector
IMU Controller
Head Unit
Pulsing Laser
Removable Hard Drives
IMU
Scan Mirror Controller
Scan Motor
Operator controls
Scan Mirror (internal)
LIDAR System Controller
Power inverter
11
Lidar 101
S E N S O R
ALS50-II (MPiA) System
12
Lidar 101
S E N S O R
  • ALS50-II (MPiA) Specifications
  • Pulse rate up to 150 kHz
  • 75º field of view
  • Single mirror
  • Max flight height 15,000 AMT
  • Max 4 range and 4 intensity returns per pulse

13
Lidar 101
A I R C R A F T
  • Cessna 310
  • Twin engine piston
  • Maximum speed 210 kts
  • Range 678 nm
  • Service ceiling 21,300 ft
  • Rate of climb 1,650 ft/min
  • Cessna 335
  • Twin engine piston
  • Maximum speed 230 kts
  • Range 928 nm
  • Service ceiling 26,800 ft
  • Rate of climb 1,650 ft/min

14
Lidar 101
A D V A N T A G E S
  • Aerial acquisition can be executed day or night.
  • Lidar point cloud can be used for numerous
    applications
  • Lidar is better able to map terrain in dense
    vegetation when compared to photogrammetry.

15
Lidar 101
A D V A N T A G E S
  • Digital elevation data created from lidar are
    considerably denser and less expensive than those
    collected by traditional methods.
  • Lidar is not affected by shadows

16
Lidar 101
A D V A N T A G E S
Lidar does not see through the trees, but
17
Lidar 101
A D V A N T A G E S
Lidar does provide a better opportunity to
establish an accurate terrain surface
18
Lidar 101
A D V A N T A G E S M U LTIPLE RETURN
S
19
Lidar 101
A D V A N T A G E S SEE IN SHADOWS
20
Lidar 101
D I S A D V A N T A G E S
  • Lidar is not all-weather, target must be visible
    in the sensors EM range
  • Slight haze is manageable, fog is not
  • Lidar does not penetrate tree canopy but rather
    exploits gaps in the canopy
  • Lidar ranges affected by extreme absorption or
    reflective properties of certain features
  • Contours derived from lidar points alone are not
    aesthetically pleasing and are not
    hydro-corrected.

21
Lidar 101
ACCURACY BASICS
  • Instrument Accuracy impacted by
  • ABGPS precision
  • IMU precision
  • Timing resolution
  • Mechanical tolerances (temperature and pressure
    variations)
  • Atmospheric distortions
  • Data Accuracy impacted by
  • Instrument performance
  • Quality of project design (control, flight plan,
    sensor settings)
  • Cleanliness of data ( of artifacts remaining in
    model)
  • Quality Control procedures

22
Lidar 101
ACCURACY BASICS
  • Most common guidelines are derived from Appendix
    A of FEMAs Guidelines and Specifications for
    Flood Hazard Mapping Partners.
  • In 2002 the National Digital Elevation Data
    Program established guidelines that specifically
    address Lidar data
  • Fundamental vertical accuracy 95 confidence
    level 1.2 feet (36.3cm) in open terrain
  • Consolidated vertical accuracy 1.6 feet (49.0cm)
    for all land cover classifications combined

23
Lidar 101
ACCURACY L ANDCOVER
24
Lidar 101
ACCURACY S A M PLEREPORT
25
Lidar 101
ACCURACY S A M PLEREPORT
NDEP Guideline
26
Lidar 101
ACCURACY S A M PLEREPORT
FEMA Guideline
27
Lidar 101
PROJECT DESIGN FACTORS
  • Factors to consider in lidar project design
  • Project specifications nominal post spacing,
    deliverables, accuracy specifications, purpose of
    the data/project.
  • Environmental conditions typical weather,
    smoke/haze
  • Ground conditions snow, ground cover
  • Terrain flat, urban, mountainous, coastal
  • Tidal requirements low/high tide request
  • Water bodies size, water levels

28
Lidar 101
PROJECT DESIGN TERRAIN
  • Terrain is one of the most significant factors
  • Tidal areas may require significant coordination
    and some luck
  • Heavy vegetation and urban areas exponentially
    increases filtering time over that of flat, open
    areas
  • Mountainous area with drastic elevation changes
    have a unique set of issues

29
Lidar Shadowing
Lidar 101
PROJECT DESIGN TERRAIN
30
Lidar 101
Range Gate Shutout
PROJECT DESIGN TERRAIN
31
Lidar 101
PROJECT DESIGN TERRAIN
32
Lidar 101
PROJECT DESIGN GPSSTATIONS
33
Lidar Production Flow
34
Lidar Production Flow
OVERVIEW
35
Lidar Production Flow
ACQUISITION VERIFICATION
  • Inputs to aerial data include
  • ABGPS
  • IMU (aircraft orientation)
  • GPS base station information (tied to survey
    network)

36
Lidar Production Flow
ACQUISITION VERIFICATION
  • Output from aerial acquisition
  • Raw data
  • Processed ABGPS data
  • Processed IMU data
  • Processed Base station data
  • Data QC of the raw data occurs
  • On site with the sensor operator
  • At the production facility in the Geopositioning
    Dept.

37
Lidar Production Flow
CALIBRATION CHECK
  • Phase involves the processing of raw lidar, IMU,
    and ABGPS data into xyz points.
  • Overlap areas between lines are viewed in a
    differencing image to check for distortion or
    anomalies in the data caused by systematic errors
  • Results are compared against the ground survey to
    ensure that the lidar is within specifications

38
Lidar Production Flow
PREPROCESSING
  • If a deliverable, lidar intensity images are
    produced before auto-filtering by taking the
    lidar point cloud and determining the best post
    spacing-to-pixel resolution match.

39
Lidar Production Flow
PREPROCESSING
  • Data is then auto-filtered and prepared for
    production.
  • Auto-filters are based on a library of macros
    that can be tailored to a project areas unique
    terrain and land cover type.
  • This step can classify 90-95 of the artifacts in
    the lidar points cloud.
  • Great care must be taken on a large-scale project
    that contains a variety of terrain and land cover
    types.

40
Lidar Production Flow
PROCESSING PRODUCTS
  • During the processing phase, various lidar
    products are produced including (but not limited
    to)
  • Bare earth tiles
  • Reflective surface (first return) files
  • Digital Elevation Models (gridded DEM)

41
Lidar Production Flow
PROCESSING M ANUAL FILTER
  • The remaining 5-10 of the artifacts in the lidar
    must be removed via manual interaction.
  • Technicians view the data in profile and with
    surfacing tools to identify and classify
    remaining artifacts.
  • The use of ancillary data (such as recent
    imagery) can enhance this process.
  • A strong peer-review and final QC process is
    critical to this step.

42
Lidar Production Flow
PROCESSING M ANUAL FILTER
43
Lidar Production Flow
PROCESSING M ANUAL FILTER
44
Lidar Production Flow
PROCESSING M ANUAL FILTER
  • Field Intelligence case example
  • Strange mounds found in data that technicians
    could not see in ancillary imagery.
  • Could not decide if mounds were a valid ground
    features.
  • Field trip to project location resulted in
    immediate improvement and uniformity of the
    manual processing.

45
Lidar Production Flow
Q U A LITY C O NTROL
  • Typical Quality Control Measures
  • Aerial Acquisition
  • Review of flight logs
  • As flown GPS epochs checked against flight plan
  • Visual QC of data coverage
  • Check of Airborne GPS/IMU processing against
    specs
  • Preprocessing/Calibration
  • Check for pitch, roll, yaw anomalies
  • Check for data coverage
  • Check against ground survey points
  • Processing/Packaging
  • Sampling of data to ensure consistency of
    filtering
  • Check on format and content of deliveries

46
Results
  • A successful lidar project has
  • Solid project design
  • Proven work flow
  • Quality control throughout the processes
  • Strong project management
  • Stakeholder agreement on project purpose scope
  • Without the above components stakeholders may not
    get what they bargained for in the end

47
Results
48
2008 South Carolina Project
49
2008 South Carolina Project
  • 2008 South Carolina Project
  • Deliverables Formats Specifications
  • Project Design
  • Aerial Acquisition - A Success Story
  • Hydro-Breakline Generation
  • Project Quality Measures

50
2008 South Carolina Project
DELIVERABLES _ O V E R V I E W
  • Shape files delineating as-flown flight lines
  • Lidar point cloud _at_ 1.4 meter nominal spacing
  • LAS format
  • Classifications
  • Class 1 Unclassified (non-ground points)
  • Class 2 Ground (bare earth, extra points)
  • Class 8 Model Key Point (thinned bare earth)
  • Class 9 Water (as classified by
    hydro-breaklines)
  • Class 12 Overlap Points (points in overlap area
    between lines)
  • ESRI multi-point feature class in Geodatabase
    format
  • Hydro-breaklines (feature class in Geodatabase
    format

51
2008 South Carolina Project
DELIVERABLES _ O V E R V I E W
  • ESRI terrain feature dataset
  • Lidar intensity images in GeoTIFF format
  • FGDC-compliant metadata (project and tile level)
  • Lidar system data report
  • Accuracy Assessment Report by County

52
2008 South Carolina Project
DELIVERABLES _ SPECS
  • Lidar data acceptance criteria
  • Accuracy in accordance with NSSDA and FEMA
    guidelines
  • Assumes that all errors follow a normal
    distribution
  • RMSEz for all land cover categories combined lt
    18.5 cm
  • RMSEr lt 1 meter (horizontal accuracy)
  • 90 of artifacts and 95 of outliers removed
  • No significant gaps in data
  • Tiles edge-matched
  • Data clipped to boundary of project full tiles
    between county boundaries delivered

53
2008 South Carolina Project
DELIVERABLES _ SPECS
  • Breakline acceptance criteria
  • Reflect all rivers, streams, lakes, ponds,
    resevoirs.
  • Continuous flow
  • Vertical consistency no vertices with 0
    elevation or excessive values
  • Breaklines should not intersect unless at same
    elevation
  • Single-line streams defined as water features lt
    50 ft in width
  • Double-lined streams defined as water features lt
    50 ft in width

54
2008 South Carolina Project
P ROJECTDESIGN _ F L I G H T
  • Considerations for this project area included
  • Project Schedule
  • Resource allocation
  • Risks
  • Project Specifications
  • Flight and Control Design
  • Environmental and contractual flight window

55
2008 South Carolina Project
P ROJECTDESIGN _ F L I G H T
  • 10,194 sq. miles
  • 20,757 total line miles
  • 49- day acquisition window
  • Ideal acquisition window in SC is 60 days

56
2008 South Carolina Project
P ROJECTDESIGN _ S U R V E Y
  • 212 ground survey points
  • 8 airport GPS base stations
  • Close coordination with surveyor required
  • Not to be confused with independent survey check
    points

57
2008 South Carolina Project
P ROJECTDESIGN _ P R O D U C T I O N
  • 12,036 tiles
  • Tiles based on statewide 5,000x 5,000 grid
  • Final products to be edge-matched for
    consistency
  • Delivery by Lot with 2 counties per Lot

58
2008 South Carolina Project
P ROJECTDESIGN _ A S F L O W N
  • As-flown trajectory files
  • Verifies planned vs. actual
  • Includes turns
  • Turn line miles 3,840

59
2008 South Carolina Project
AERIALACQUISITION _ SUCCES
S
  • An Acquisition Success Story
  • 2 crews per aircraft mobilized, effectively
    doubling flight time
  • Ground survey crews established base stations and
    collected survey control well ahead of the
    aircraft.
  • Entire project area of 16 counties collected
    within 14 days of flying after contractual notice
    to proceed.
  • To date, 100 of the flight data has passed
    through the Geopositioning group QC.

60
2008 South Carolina Project
HYDROBREAKLINES
  • Breaklines are required to accurately define
    stream banks to facilitate HH engineering and
    modeling
  • The synthetic breakline approach proved to be
    efficient and cost effective
  • The hydro breaklines produced in this manner are
    NOT recommended for use in generating contours

61
2008 South Carolina Project
HYDROBREAKLINES
62
2008 South Carolina Project
HYDROBREAKLINES
TIN SURFACE WITH BREAKLINES
63
2008 South Carolina Project
QU ALITYMEASURES
  • Aerial Acquisition
  • Approval of project boundary and flight design by
    PM and stakeholders
  • Hand-off of data to Geopositioning group as soon
    as each lift is flown
  • Review of daily flight reports
  • Timely processing of ABGPS/IMU and check against
    specifications
  • Processing
  • Large boresight team utilized to identify
    problems immediately
  • Extensive ground survey allowing flexibility in
    processing and stronger checks
  • Peer-review process throughout production steps
  • Data review and sampling is threaded into the
    entire production flow and not just at the end of
    the process.

64
2008 South Carolina Project
QU ALITYMEASURES
  • Specific QC Measures
  • Data evaluation for collection errors
  • Excessive noise
  • Gaps
  • Steps
  • Hillshade checks for artifact review
    (filtering)
  • Peer review independent review of every tiles
  • Tile/Block QC lead technician reviews all
    blocks of tiles for consistency in filtering and
    edge-matching
  • Final delivery QC format and coverage checks
  • Dewberry Davis
  • Review data delivered to ensure compliance with
    specifications
  • Independent field survey checks and accuracy
    reports

65
The Many Uses of Lidar
  • The Many Uses of Lidar
  • Current Applications
  • Future Applications
  • Feasible Products with SC Dataset
  • New and Future Services

66
The Many Uses of Lidar
  • Lidar data can be utilized by numerous
    disciplines in private, federal, state and local
    communities
  • A statewide lidar project benefits a multitude of
    users at the private, federal, state, and local
    levels.
  • Applications include (to name a few)
  • Disaster response
  • 3D Modeling
  • Line of sight analysis
  • Flood plain modeling
  • Volume analysis
  • Transportation mapping
  • Orthophoto rectification
  • Land cover mapping
  • Contour Generation
  • Forestry
  • Archeology
  • Bathymetry
  • Environmental Monitoring
  • Military Applications
  • Shoreline Management
  • Mining
  • Gas Oil Exploration

67
The Many Uses of Lidar
  • Applications are only limited by imagination

68
The Many Uses of Lidar
DISASTERRESPONSE
69
The Many Uses of Lidar
SUPPORTCONTOURS
70
The Many Uses of Lidar
3 D MODELING
71
The Many Uses of Lidar
AVIATION OBSTRUCTION ANALY
SIS
72
The Many Uses of Lidar
CITYMODELS
73
The Many Uses of Lidar
VIEWSHED ANALYSIS
74
The Many Uses of Lidar
POWERLINEINSPECTION
75
The Many Uses of Lidar
POWERLINEINSPECTION
76
The Many Uses of Lidar
TRANSPORTATION MAPPING
77
The Many Uses of Lidar
VOLUMEANALYSIS
78
The Many Uses of Lidar
TREECANOPY HEIGHTS
Courtesy NCFMP Duke University - Tyler Bax and
Joseph Sexton
79
The Many Uses of Lidar
CUSTOMIZATION OFDATA
  • Custom-scaled DEMs for coastal hydrology
    applications

Courtesy NCFMP Duke University Ryan OBanion
80
The Many Uses of Lidar
ENDANGERED SPECIES
  • Reintroduction sites for federally endangered
    species of butterfly

Courtesy NCFMP Duke University Becky Bartel
and Joseph Sexton
81
The Many Uses of Lidar
ELEVATIONMAPS
82
The Many Uses of Lidar
WHATCANSC DATASUPPORT
  • Applications that can be directly derived from
    the 2008 SC Lidar dataset
  • Disaster response
  • 3D Modeling
  • Line of sight analysis
  • Flood plain modeling
  • Volume analysis
  • Transportation mapping
  • Orthophoto rectification
  • Land cover mapping
  • Contour Generation
  • Contour generation from lidar points typically
    requires the addition of accurate breaklines to
    support certain contour intervals and accuracy
    specifications.
  • Forestry
  • Archeology
  • Bathymetry
  • Environmental Monitoring
  • Military Applications
  • Shoreline Management
  • Mining
  • Gas Oil Exploration

83
The Many Uses of Lidar
NEWFUTURE
  • Advancements in technology directly benefit the
    customer.
  • Expanded sensor capabilities, process
    improvements, and new partnerships are directly
    benefiting the customer.
  • Examples of new services/partnerships include
  • Lidargrammetry
  • FLI-MAP
  • Urban Reality

84
The Many Uses of Lidar
NEWFUTURE LIDARGRAMMETRY
  • Up until recently, intensity data have been
    primarily used to create ancillary information
    such as black-and-white supporting images, or to
    improve automated-filtering routines and
    sensor-calibration.
  • With the advent of sensors capable of scan rates
    above 100kHz, it is now feasible to generate
    intensity stereo pairs with resolution better
    than 1-meter.
  • With this capability, vendors can integrate a
    photogrammetric workflow with highly accurate
    lidar data, allowing for the stereo-collection of
    features without imagery.

85
The Many Uses of Lidar
NEWFUTURE LIDARGRAMMETRY
  • Pros
  • Lidargrammetry workflow can exploit current skill
    sets and equipment (resources) with minimal
    training.
  • Has been shown to reduce manual editing time of
    lidar
  • Stereo models can be larger, covering greater
    areas
  • Rapid delineation of breaklines/planimetric
    features
  • Cons
  • Water features may be partially missing due to
    reflectivity
  • Defining clean edges of planimetric features such
    as buildings can be difficult due to pixel size
  • Vegetation can obscure features

86
The Many Uses of Lidar
NEWFUTURE LIDARGRAMMETRY
87
The Many Uses of Lidar
NEWFUTURE LIDARGRAMMETRY
88
The Many Uses of Lidar
NEWFUTURE LIDARGRAMMETRY
89
The Many Uses of Lidar
NEWFUTURE LIDARGRAMMETRY
90
FLI-MAP
NEWFUTURE SERVICES
FLI-MAP lidar mapping system
  • Designed primarily for corridor mapping
  • Helicopter platform
  • High-density, high-accuracy data set
  • Simultaneous lidar and imagery data capture
  • Up to 250kHz pulse rate
  • 70 points/m2 at 100m flying height and 20 m/s
    speed
  • Laser ranging accuracy 1 cm
  • 60 laser swath angle, 3 look angles (forward,
    nadir, backward)
  • Image sources line scan imagery, frame
    photography, and video

91
FLI-MAP
NEWFUTURE SERVICES
How it Works
92
FLI-MAP
NEWFUTURE SERVICES
3D visualization of colorized lidar points from
FLI-MAP acquisition
93
FLI-MAP
NEWFUTURE SERVICES
  • FLI-MAP Applications
  • Corridor Mapping Applications
  • Transmission lines
  • Railways
  • Highways
  • Pipelines
  • Levees
  • Area Mapping Applications
  • Rail yards
  • Oil Gas assets

94
FLI-MAP
NEWFUTURE SERVICES
95
Urban Reality
NEWFUTURE SERVICES
  • Terrestrial 3D laser scanning system
  • Screen renderings 3D data of the Fugro EarthData
    facility collected by Urban Reality.
  • Total data set is over 3.5 million points.
  • Data was collected from a van mounted system,
    driving 20 MPH.
  • Total data collection and processing lt 1 hour.

96
Questions
Write a Comment
User Comments (0)
About PowerShow.com
