Title: Electra Foil Heating Analysis


1

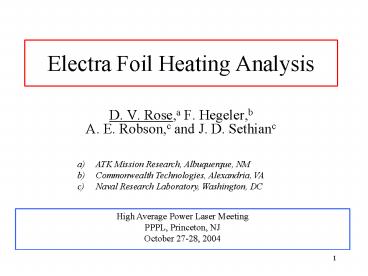

Electra Foil Heating Analysis
  • D. V. Rose,a F. Hegeler,b A. E. Robson,c and J.
    D. Sethianc
  • ATK Mission Research, Albuquerque, NM
  • Commonwealth Technologies, Alexandria, VA
  • Naval Research Laboratory, Washington, DC

High Average Power Laser Meeting PPPL, Princeton,
NJ October 27-28, 2004
2
The key components of a Krypton Fluoride (KrF)
Laser
Laser Input
Laser Gas Recirculator
Pulsed Power System
Cathode
Electron Beam
Foil Support(Hibachi)
Laser Cell Kr F2 ( Ar)
3
1D Simulations
  • Isolate contributions to foil heating from
  • Primary or first pass electrons
  • electrons back-scattered from the foil
  • Electron scattered back into the foil from the
    gas.
  • Develop functional forms for easy estimation of
    foil heating

4
1D Lsp foil runs at 500 keV (flat top) No diode
fields. Average Reflected and Transmitted Energy
and Current Densityas a Function of Foil
Thickness
5
A comparison of the backscattered electron energy
distributionfrom the foil only for a 500 keV
electron beam.
1-mil Fe
5-mil Fe
6
Power deposition in foil WITHOUT re-injection of
backscattered electrons (and perfect absorber
behind foil)
1D calculations,single-passfor 500
keVelectrons
7
Adding backscattering from gas (electrons
scattered into AK gap are lost)
Iron _at_ 500 keV
Aluminum _at_ 500 keV
8
Fractional Power Deposition (Pdeposited/Pinjected)
is compared at 500 keV for various thicknesses
of iron and aluminum, isolating the contributions
from the gas-scattered and diode re-injected
electrons.
Iron _at_ 500 keV
Aluminum _at_ 500 keV
9
Backscatter and foil deposition are independent
of gas pressure assuming that the pressure is
high enough to stop most of the beam in the gas
cell length
  • 500 keV e-beam, no diode fields
  • Gas composition fixed at 60 Ar, 40 Kr
  • 1.0 atm case run with and without applied 1.4 kG
    B-field (no change in results)

10
Voltage scans Deposition in foil is reduced with
increasing voltage, but backscattered electron
quantities only weakly affected
11
Calculated transmitted current fraction for a
mono-energetic electron beam in good agreement
with data and models
Model and data from E. DAnna et al., J.
Vac. Sci. Technol. 17, 838 (1980).
12
Data for aluminum foils available in the
literature
2D LSP simulations
1D LSP simulations (backscattered
electronsremoved from simulation)
R. B. Peterson and D. Podwerbekki, Meas. Sci.
Technol. 3, 533 (1992).
13
From these results, the rate at thick the foil
temperature increases as a function of voltage
can be found
The peak in the curve for1-mil iron is an
important transition from the foil being a
thick target electronabsorber to a thin
foil. This transition for 1-mil aluminum occurs
below 100 kV.
14
Functional Forms for Foil Heating
For 1-mil Al
For 1mil Fe (or stainless steel)
15
2D Simulations
  • Detailed model of localized foil heating for
    direct comparison with Electra measurements

16
2D LSP simulation geometry Periodic boundaries
alongrib positions for computational speed,
electrostatic solverfor self-consistent diode
current using Electra voltage waveform.
Iron ribs (1.3 cm deep, 0.5 cm wide)
Cathode (30 kV/cm)
Periodic BoundaryConditions
30 cm
Al absorber
Gas
z
4.4 cm
x
B0
foils
f0
f-V(t)
17
Typical Electra voltage and current waveforms
used for this analysis
18
Power deposition in several foils and electron
beam power in the diodes from 1D LSP simulations.
19
Electra measurements are consistent with simple
1D and 2D LSP simulations of energy deposition
and heating of various foils
1.5 atm Argon Dashed 1D sims Solid2D sims
20
Simulation results scaled to give approximate
current density of 24 - 25 A/cm2.
21
1.5 atm, 60 Argon, 40 Kr
22
Low pressure helium used to minimize electron
backscatter from gas cell Calculations so far
suggest that 0.17 atm of helium is not a
perfect absorber and backscattered electrons
are adding to the measured foil temperature.
0.17 atm Helium
(Red curves assume perfect absorption of
electrons transmitted through foil.)
23
Summary accurate modeling of foil energy
deposition is a critical aspect of rep-rated KrF
laser system design
  • Experiments underway now at the Electra facility
    are providing important data that is benchmarking
    the computational modeling.
  • Preliminary Electra measurements are consistent
    with the modeling results of energy deposition
    and foil temperature rise for single shot diode
    operation.
  • This analysis impacts foil materials selection,
    which in turn is part of the energy efficiency
    calculation for an IFE system.
