Title: Water Supply Sector Overview


1

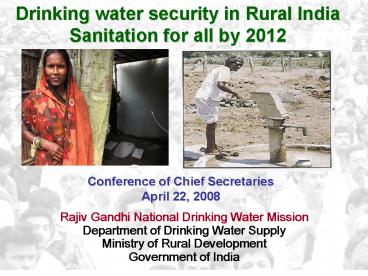

Water Supply - Sector Overview
Drinking water security in Rural India Sanitation
for all by 2012
Conference of Chief Secretaries April 22, 2008
Rajiv Gandhi National Drinking Water
Mission Department of Drinking Water Supply
Ministry of Rural Development Government of India
2
Bharat Nirman Programme


Focused Strategy for full coverage of all rural
habitations by 2009, estimated as follows
55,067 Uncovered habitations Address and
revive 3.31 lakh slipped back habitations
Address problems of water quality in
2,16,968 habitations
Slipped back due to lower and lower availability
of ground water


Fluoride Problems 20,190 habitations in 17 States
affected About 66 million people at risk Fluoride
entering into food chain
Arsenic Problems States affected West Bengal,
Bihar, UP, Jharkhand, Assam, Tripura and
Chattisgarh 16 Million people at risk

3
Bharat Nirman - Achievement
The differences in the balance habitations are
due to the fact some of the States reported
increase in number of quality affected
habitations as well as some habitations have
become depopulated/ shifted during the course of
implementation
3
4
Bharat Nirman - Performance
4
5
Issues in rural drinking water
  • Some of the States are unable to provide the
    matching State share, which affects the release
    of central funds.
  • Excess OB warrants cut in second installment of
    funds. This has to be taken care of. This pattern
    of having excess OB is not desirable.
  • Upto 15 of ARWSP funds released to States could
    be spent on OM expenses.
  • Delay in transfer of funds from State Government
    to implementing agencies should be reduced for
    timely implementation of projects.
  • On-line MIS has been installed on the
    Departmental website at www.ddws.gov.in. States
    to take urgent action for updating the records
    and list of habitations regularly.

5
6
Issues in rural drinking water
  • National Rural Drinking Water Quality Monitoring
    Surveillance Programme aims at the community
    testing their own drinking water sources using
    simple field test kits. Training of 5 grass root
    level workers, block and district officials and
    distribution of field test kits should be
    completed by June 2008.
  • It has been decided that from April 2008, on-line
    reports as updated in the IMIS of the Department
    will be considered for all purposes including
    release of funds under ARWSP. Yearly Status
    Reports of habitations as on 1.4.2008 updated.
  • All the rural schools were to be provided
    drinking water facilities by March, 2008.

6
7
Tackling Quality Problems
  • Most arsenic affected habitations have been
    addressed
  • About 10,000 fluoride affected habitations
    remaining to be tackled
  • Salinity (about 8,000), Iron (about 90,000),
    Nitrate (18,000) affected habitations required to
    be tackled in the last year of Bharat Nirman
  • Fluoride to be controlled through alternate
    sources and dilution by rain water harvesting
  • Iron to be tackled through low-cost terra cotta
    filters developed by Institute of Minerals and
    Materials Technology (IMMT), Bhubaneshwar CSIR
    Institute
  • Salinity Nitrate to be tackled through dilution
    and catchment protection measures
  • For Salinity and Iron tackling, linkages with
    research institutions such as IMMT Bhubaneshwar,
    BARC Mumbai, CSMCRI, Bhavnagar etc established.
  • For school water supply, scheme for stand-alone
    purification systems has been approved.
    Operationalization of the scheme is under process.

7
8
Challenges in Water Sector
  • Sustainability of drinking water sources - A
    large number of habitations slipped back due to
    reasons like depleting ground water, system
    out-living the design period, increasing
    population, deterioration of water quality, etc.
  • Unless Sustained availability of water is
    ensured, use of any technology including Stand
    alone systems will not be feasible for providing
    safe drinking water at all times.
  • Treatment techniques whether solving the
    problem or increasing ? (entering into food chain
    and environment through disposal of untreated
    sludge)
  • Ensuring potability of water at the consumption
    point Generally safe upto Production/ Supply
    point. The issue of polishing water at the
    consumption point has to be addressed, especially
    for bacteriological contamination.






9
Key to Rural Drinking Water Security - 3
  • Incentivize and reward sustainable water supply
    schemes, Sajal Gram Puraskar - Bringing emphasis
    back to PRIs as has been achieved by Nirmal Gram
    Puraskar in raising Sanitation coverage from 22
    to 50 in 3 years
  • Link to Sanitation, clean village, solid liquid
    waste management, recycling of used water as part
    of sustainable water supply system.
  • Focus on convergence of resources and investments
    schemes, NRHM, NREGS, Integrated Wasteland
    Development Programme, Hariyali, National
    Afforestation Programme, National Project for
    Repair, Restoration and Renovation of Water
    Bodies, River Valley project Flood Prone River
    Programme, Twelfth Finance Commission, Backward
    Regions Grant Funds, ARWSP, TSC
  • Updation of data collection, information
    habitation-wise on status of drinking water
    supply to be concurrent and web-based information
    system on water budgeting, supply-demand
    management at habitation level

10
Need for Paradigm Shift for Rural drinking water
sources
Present Scenario
Desired Future Scenario
11
Recharge Structures constructed by various
State Governments

Recharge shaft
Check Dam
Gabion structure
Sub-surface Dyke
Finger Dyke
Farm pond
12
Point source Recharging systems
13
Ground water recharge through percolation pit
14
Point source Recharge Structures constructed by
various State Governments

Defunct borewell converted into Recharge pit
15
Case Study-1 Gujarat
  • Creation of WASMO Involvement of NGOs like KMVS
    for arriving at Drinking water security plans
    for every habitation.
  • Macro and Micro level sustainability initiatives
    (drinking water grid, interlinking of river,
    recharge of ponds/well, RWH, check dams,
    de-silting, etc
  • Impact (examples)
  • Water level rise observed in monitored open
    wells after implementation of WRM in Kutch was in
    the range of about 3 to 9 meters and about 2 to
    23 meters in case of tube wells. Dilution in TDS
    was observed to the tune of 200 to 1500 ppm
  • In Kaswali village of Surendranagar district
    with 88 Household and one drinking water source
    yield very little water in dry season. Women used
    to walk 2 kms to a farm bore. Now All 188
    households have Individual 10000 liters tanka
    which gets filled in rain enough for 4 months.
    Once filled through tanker in a season

16
(No Transcript)
17
Rainwater harvesting
  • 100 mm rain falling on 1 ha of land means 1
    million litres of water.
  • There is no village in India which cannot meet
    its drinking water
  • needs through its own rainwater endowment.
  • Rooftop water harvesting solutions with extensive
    use for 2-4 months in year at least to ease the
    pressure on ground water
  • community
  • Individual
  • organizations


COLLECTION OF RAINWATER USING POLYTHENE SHEETS
OVER THATCHED ROOFS
Rainfall in the country reportedly varies from
100mm to 11,000mm, with an average of 1150mm. As
such, even if rainfall is heavily concentrated,
technically, enough rainfall to meet drinking
water needs.
18
Rooftop Rainwater harvesting

19
Case Study 7 Karnataka
A combination of Individual Rooftop Rainwater
Harvesting structures and ground water recharge
structures have been addressed to tackle fluoride
problems in Kolar, Gadag and Tumkur district.
Services of M/s BAIF is taken in
implementation. Contribution by APL 30 and BPL
20 Impact Improved clean water availability,
programme wise better acceptance, expecting to
bring down cases of dental fluorosis
20
Case Study - 8 Kerala Back-washing of
Contaminated wells with roof-top rainwater
harvesting and phyto-remediation of ponds reduced
contamination levels
The well of Ms Chinnamma Chacko, unused for the
last thirty years turns clear after backwashing
Phyto-remediation for treatment of surface water
bodies and dilution using roof-top rainwater
harvesting
21
Case Study 9 Maharashtra
Continuous Contour Percolation Trench ( Osmanabad
)
Unconventional Measures to strengthen drinking
water sources, hydrofracturing to rejuvenate Poor
Yielding borewells Focus on user education,
fixation of observation wells for water level and
water quality monitoring, preparation of
hydrograph, involvement of the stake holders in
supply augmentation and demand management
interventions, and self regulation Impact
Reduction in drinking water scarcity conditions.
Enhanced utility of poor yielding borewells under
RWS. Sustained water supply.
(Before Rainfall)
(During Rainfall)
22
Cost-effective local technology for iron and
biological contamination using terra-cota filters

Iron sludge could be safely scraped and sold for
making paints
22
23
Stand alone drinking water purification systems
for Rural Schools
  • Honble Finance Minister in his Budget speech-
    2008 has announced a special package of Rs 200
    crore for providing Stand-alone treatment systems
    to provide safe drinking water at the consumption
    point using simple technologies, in rural schools
    where the drinking water quality is highly
    contaminated either with chemical or biological
    contamination.
  • All the State Governments and UTs have been
    requested to provide basic data by 30th April
    2008 on existing water supply arrangements in
    rural schools and prioritize such schools which
    have water quality problems

24
Rural SanitationTotal Sanitation Campaign
24
25
IHHL Coverage Status 53.53
  • Uttar Pradesh 58.43
  • Arunachal Pradesh 58.69
  • Goa 58.87
  • Andhra Pradesh 60.56
  • Delhi 62.89
  • Assam 64.54
  • Chandigarh 68.53
  • Tamilnadu 76.06
  • Nagaland 76.14
  • Haryana 78.49
  • Manipur 79.25
  • West Bengal 84.24
  • Lakshawdeep 93.14
  • Kerala 100.00
  • Mizoram 100.00
  • Sikkim 100.00
  • Tripura 100.00
  • D N Haveli 17.44
  • Bihar 20.42
  • Jharkhand 20.67
  • Pondicherry 23.85
  • Chattisgarh 30.29
  • Rajasthan 31.15
  • Daman Diu 32.02
  • Orissa 33.60
  • Madhya Pradesh 34.52
  • Karnataka 38.50
  • A N Island 42.33
  • Meghalaya 47.33
  • Uttaranchal 51.20
  • Jammu Kashmir 53.36
  • Punjab 54.25
  • Himachal Pradesh 54.34
  • Gujarat 54.51
  • Maharashtra 55.15

25
26
School Coverage Status 49.06
  • Arunachal Pradesh 39.02
  • Chattisgarh 46.68
  • Orissa 46.55
  • Rajasthan 55.23
  • Madhya Pradesh 57.19
  • Andhra Pradesh 58.05
  • Jharkhand 59.98
  • Kerala 69.92
  • Tripura 72.32
  • Maharashtra 83.49
  • Tamilnadu 84.98
  • Gujarat 90.96
  • Karnataka 99.41
  • Mizoram 100.00
  • Haryana 100.00
  • Pondicherry 100.00
  • Sikkim 100.00
  • A N Island NR
  • Chandigarh NR
  • Daman Diu NR
  • D N Haveli NR
  • Delhi NR
  • Lakshawdeep NR
  • Manipur 6.86
  • Assam 7.88
  • Nagaland 12.01
  • Meghalaya 12.09
  • Goa 13.82
  • Uttaranchal 21.92
  • Himachal Pradesh 25.87
  • Jammu Kashmir 26.71
  • West Bengal 31.00
  • Bihar 31.16
  • Punjab 32.57
  • Uttar Pradesh 37.04

26
27
Issues in Sanitation and TSC
  • Promotion of low cost, affordable toilets for
    individual households
  • Focus on waste management solid liquid
  • Focus on greater involvement of women
  • Women trained as masons
  • SHG to take up sanitary services pan
    production, sanitary pads
  • Menstrual hygiene for adolescent girls
  • Focus on covering all Schools and Anganwadis.
    Provide separate units for girls in co-ed schools
  • Cover complete villages avail of NGP
  • Promotion of Ecosan toilets in low water, high
    water table areas

27
28
OPTIONS FOR HOUSEHOLD TOILET-The part below the
ground remains the same
28
29
Women in SanitationManufacturing sanitation
services
29
30
Women in Sanitation
  • Addressing sanitation needs of women
  • Providing Sanitary services is an important
    income generating activity for women SHGs
  • School sanitation to reach children and
    adolescent girls
  • Simple low cost incinerators to dispose sanitary
    napkins in schools, sanitary complexes and in
    villages

30
31
Women in Sanitation -Napkin Production
31
32
Catching them young -Sanitation in Child Care
Centers
  • Baby friendly toilets in all child care centers
    in rural India by 2009
  • Target of 4,23,056 toilets for Child centers
  • 1,85,872 already completed (44)

32
33
Catching them Young -School Toilets
  • Target to cover all rural schools by 2008
  • Targeted number 11,77,193
  • Linkage established with Sarva Sikhsha Abhiyan
    countrywide programme for primary education
  • Presently 73 of schools have atleast one toilet.

33
34
Special focus on GirlsSeparate units with
special designs
34
35
Sustainable solid waste management
  • Segregation of waste
  • Composting
  • Recycling

35
36
Biogas linked toilets for energy sustainability
  • Safe disposal of excreta
  • Energy for cooking
  • Returns nutrient to the earth enriched manure
  • Sustainable eco friendly solution Better health
  • No cultural stigma

36
37
Sustainable liquid waste management
  • Using natural systems for aerating waste water
  • Recycling waste water for horticulture and
    agriculture

37
38
Total Sanitation - Nirmal Gram Puraskar
  • States performing well
  • Andhra Pradesh, Gujarat, Haryana, Karnataka,
    Kerala, Maharashtra, Tamil Nadu, Tripura, Uttar
    Pradesh, Uttarakhand, West Bengal
  • States that need accelerate
  • Arunachal Pradesh, Assam, Bihar, Chhatisgarh,
    Himachal Pradesh, Jharkhand, Madhya Pradesh,
    Mizoram, Orissa, Rajasthan, Sikkim
  • States with no NGP awarded yet
  • Goa, Jammu Kashmir, Manipur, Meghalaya,
    Nagaland, Punjab, All UTs

38
39
2008 is International Year of Sanitation
  • States to take up
  • State level competitions for Best toilet, best
    teacher, Best NGO
  • State wise exhibition for sustainable sanitation
  • Regional Conferences
  • Increasing participation of youth groups
  • Media campaign to focus on health, sanitation
    Water
  • Participation in SACOSAN III Conference

39
40
SACOSAN III in November 2008
  • SACOSAN-I, Dhaka, Bangladesh, 2003.
  • SACOSAN-II, Islamabad, Pakistan, 2006
  • SACOSAN-III, New Delhi, India 2008
  • Theme - Sanitation for Dignity And Health.
  • Will showcase good works of States
  • State performance Reports to be presented
  • Organize visits in State for international
    delegates
  • Showcase issues of sustainable sanitation
  • Showcase gender issues in Sanitation
  • Showcase diverse sanitation systems adopted by
    each State

40
41
Increased Budget for Rural Drinking Water
Sanitation in 2008-09
  • 2007-08 Rs.7460 crore (RE).
  • 2008-09 Rs.8500 crore.
  • Increased availability of funds require States
    according highest priority to the sector and
    immediate galvanization of all resources for
    effective absorption and expenditure on safe,
    sustainable Drinking Water and Sanitation
    Projects.
  • Chief Secretaries may kindly monitor
  • All aspects of Rural Drinking Water Supply
    projects with special reference to sustainability
    of systems and sources.
  • All aspects of TSC in rural areas including
    progress under Solid Liquid Waste Management
    and number of NGP awardees.
  • THANK YOU
Write a Comment
User Comments (0)
About PowerShow.com
