Particle Filters

1

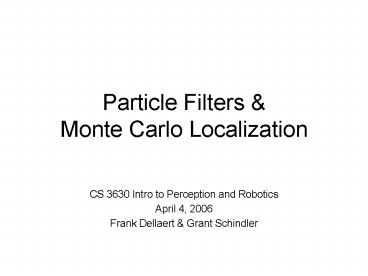

Particle Filters Monte Carlo Localization

• CS 3630 Intro to Perception and Robotics
• April 4, 2006
• Frank Dellaert Grant Schindler

2
Probability of Robot Location
P(Robot Location)
Y
State space 2D, infinite states
X
3
Sampling as Representation
P(Robot Location)
Y
X
4
3D Particle filter for robot poseMonte Carlo
Localization

• Dellaert, Fox Thrun ICRA 99

5
Sampling Advantages

• Arbitrary densities
• Memory O(samples)
• Only in Typical Set
• Great visualization tool !
• minus Approximate

First appeared in 70s, re-discovered by
Kitagawa, Isard Blake in computer
vision, Monte Carlo Localization in robotics
6
Bayesian Filtering

• Two phases 1. Prediction Phase 2. Measurement
  Phase

7
1. Prediction Phase
u
xt-1
xt
P(xt) ? P(xtxt-1,u) P(xt-1)
Motion Model
8
2. Measurement Phase
z
xt
P(xtz) k P(zxt) P(xt)
Sensor Model
9
1. Prediction Phase
u
P(xt ,u)
Motion Model
10
2. Measurement Phase
P(zxt)
Sensor Model
11
3. Resampling Step
O(N)
12
Monte Carlo Localization
weighted Sk
Sk
Sk-1
Sk
Predict
Weight
Resample
13
Particle Filter Tracking
14
A Two-step View of the Particle Filter
Empirical predictive density Mixture Model
15
Bayes Filter and Particle Filter
Recursive Bayes Filter Equation
Monte Carlo Approximation
16
Conclusions

• Monte Carlo LocalizationPowerful yet
  efficientSignificantly less memory and CPUVery
  simple to implement

17
Take Home Message

• Representing uncertainty using samples is
  powerful, fast, and simple !

18
Questions
19
1D Importance Sampling
20
Monte Carlo Localization a 1D Example
Prior P(X)
Likelihood L(XZ)
Posterior P(XZ)
21
Global Localization
22
Global Localization (2)
23
Global Localization (3)
