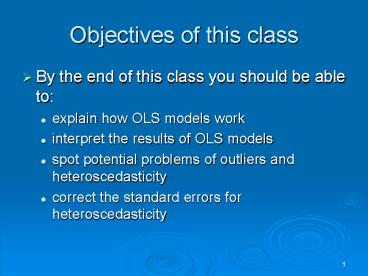

Objectives of this class

1
Objectives of this class

• By the end of this class you should be able to
• explain how OLS models work
• interpret the results of OLS models
• spot potential problems of outliers and
  heteroscedasticity
• correct the standard errors for heteroscedasticity

2
2. Ordinary least squares (OLS) regression

• 2.1 The basic idea
• 2.2 Single variable OLS
• 2.3 Correctly interpreting the coefficients
• 2.4 Examining the residuals
• 2.5 Multiple regression
• 2.6 Heteroskedasticity

3
2.1 The basic idea

• A simple linear regression aims to characterize
  the relation between one dependent variable and
  one independent variable using a straight line
• For example, you predict that larger companies
  pay higher fees
• You can formalize the effect of company size on
  predicted fees using a simple equation
• The parameter a0 represents what fees are
  expected to be in the case that Size 0.
• The parameter a1 captures the impact of an
  increase in Size on expected fees.

4
2.1 The basic idea

• The parameters a0 and a1 are assumed to be the
  same for all observations and they are called
  regression coefficients.
• However, company size is not the only variable
  that affects audit fees. For example, the
  complexity of the audit engagement, or the size
  of the audit firm may also matter.
• You do not know all the factors that influence
  fees, so the predicted fee that you calculate
  from the above equation will differ from the
  actual fee.

5
2.1 The basic idea

• The deviation between the predicted fee and the
  actual fee is called the residual. You can
  represent the relation between actual fees and
  predicted fees in the following way
• where represents the residual term (i.e., the
  difference between actual and predicted fees)

6
2.1 The basic idea

• Putting the two together we can express actual
  fees using the following equation
• The goal of regression analysis is to estimate
  the parameters a0 and a1

7
2.1 The basic idea

• One of the simplest techniques involves
  estimating the coefficients using ordinary least
  squares (OLS) regression.
• The objective of OLS is to make the difference
  between the predicted and actual values as small
  as possible

8
2.1 The basic idea

• First lets start with a very small and easy to
  visualize dataset
• Go to http//ihome.ust.hk/accl/Phd_teaching.htm
• Download ols.dta to your hard drive and open in
  STATA (use "C\phd\ols.dta", clear) or open
  directly from the internet (use
  "http//ihome.ust.hk/accl/ols.dta", clear)

9
2.1 The basic idea

• Examine the a scatter plot between the two
  variables twoway (scatter y x) (lfit y x)

10
2.1 The basic idea

• This line is fitted by minimizing the sum of the
  squared differences between the observed and
  predicted values of y (known as the residual sum
  of square, RSS)

• The assumptions required to obtain the
  coefficients are
• The relation between y and x is linear
• The x variable is uncorrelated with the residuals
• The residuals have a mean value of zero

11
2.2 Single variable OLS (regress)

• We estimate the model using the regress command
• regress y x
• The first variable (y) is the dependent variable
  while the second (x) is the independent variable

12
2.2 Single variable OLS (regress)

• This gives the following output

13
2.2 Single variable OLS (regress)

• The coefficient estimates are 3.000 for the a0
  parameter and 0.500 for the a1 parameter

• We can use these to predict the values of Y for
  any given value of X. For example, we can
  predict what Y will be when X 5 using the
  display command which performs simple
  calculations
• display 3.0000910.50009095

14
2.2 Single variable OLS (_b)

• Actually, we do not need to type the coefficient
  estimates because STATA will remember them for
  us. They are stored by STATA using the name
  _bvarname where varname is replaced with the
  name of the independent variable or the constant
  (_cons)
• display _b_cons_bx5

15
2.2 Single variable OLS

• Note that the predicted value of y when x equals
  5 differs from the actual value
• list y if x5
• The actual value is 5.68 compared to the
  predicted value of 5.50. The difference is the
  residual error that arises because x is not a
  perfect predictor of y.

16
2.2 Single variable OLS
When x 5, the actual value y is 5.68 compared
to the predicted y value of 5.50. The residual
prediction error is the vertical distance between
the observation and the line.
17
2.2 Single variable OLS

• If we want to compute the predicted value of y
  for each value of x in our dataset, we can use
  the saved coefficients
• gen y_hat_b_cons_bxx
• The estimated residuals are the difference
  between the observed y values and the predicted y
  values
• gen y_resy-y_hat
• list x y_hat y y_res

18
2.2 Single variable OLS (predict)

• A quicker way to do this would be to use the
  predict command after regress
• predict yhat
• predict yres, resid
• Checking that this gives the same answer
• list yhat y_hat yres y_res
• You should note that the values of x, yhat and
  yres correspond with those found on the scatter
  graph
• sort x
• list x y y_hat y_res

19
(No Transcript)
20
2.2 Single variable OLS

• By construction, there is zero correlation
  between the x variable and the residuals
• twoway (scatter y_res x) (lfit y_res x) or reg
  y_res x

21
2.2 Single variable OLS

• Standard errors
• Typically our data comprises a sample that is
  taken from a larger population
• The coefficients are only estimates of the true
  a0 and a1 values that describe the entire
  population
• If we obtained a second random sample from the
  same population, we would obtain different
  coefficient estimates for a0 and a1

22
2.2 Single variable OLS

• We therefore need a way to describe the
  variability that would obtain if we were to apply
  OLS to many different samples
• Equivalently, we want a measure of how
  precisely our coefficients are estimated
• The solution is to calculate standard errors,
  which are simply the sample standard deviations
  associated with the estimated coefficients
• Standard errors (SEs) allow us to perform
  statistical tests, e.g., is our estimate of a1
  significantly greater than zero?

23
2.2 Single variable OLS

• The techniques for estimating standard errors are
  based on OLS assumptions that often do not hold
  in practice
• Homoscedasticity (i.e., the residuals have a
  constant variance)
• Non-correlation (i.e., the residuals are not
  correlated with each other)
• Normality (i.e., the residuals are normally
  distributed)

24
2.2 Single variable OLS

• The t-statistic is obtained by dividing the
  coefficient estimate by the standard error

25
2.2 Single variable OLS

• The p-values are from the t-distribution and they
  tell you how likely it is that you would have
  observed the estimated coefficient under the
  assumption that the true coefficient in the
  population is zero.
• The p-value of 0.002 tells you that it is very
  unlikely (prob 0.2) that the true coefficient
  on x is zero.
• The confidence intervals mean you can be 95
  confident that the true coefficient of x lies
  between 0.23337 and 0.76681.

26
2.2 Single variable OLS

• The total sum of squares (TSS) 41.27
• The explained sum of squares (ESS) 27.51
• The residual sum of squares (RSS) 13.76
• Note that TSS ESS RSS.

27
2.2 Single variable OLS

• The column labeled df contains the number of
  degrees of freedom
• For the ESS, df k-1 where k number of
  regression coefficients (df 2 1)
• For the RSS, df n k where n number of
  observations ( 11 - 2)
• For the TSS, df n-1 ( 11 1)
• The last column (MS) reports the ESS, RSS and TSS
  divided by their respective degrees of freedom

28
2.2 Single variable OLS

• The first number simply tells us how many
  observations are used to estimate the model
• The other statistics here tell you how well the
  model explains the variation in Y

29
2.2 Single variable OLS

• R-squared ESS / TSS ( 27.51 / 41.27 0.666)
• So x explains 66 of the variation in y.
• Unfortunately, many researchers in accounting
  (and other fields) evaluate the quality of a
  model by looking only at the R-squared.
• This is not only invalid it is also very
  dangerous (I will explain why later)

30
2.2 Single variable OLS

• One problem with the R-squared is that it will
  always increase even when an independent variable
  is added that has very little explanatory power.
• The adjusted R-squared corrects for this by
  accounting for the number of model parameters, k,
  that need to be estimated
• Adj R-squared 1-(1-R2)(n-1)/(n-k)
  1-(1-.666)(10)/9 0.629
• In fact the adjusted R-squared can even take on
  negative values. For example, suppose that y and
  x are uncorrelated in which case the unadjusted
  R-squared is zero
• Adj R-squared 1-(n-1)/(n-2) (n-2-n1)/(n-2)
  -1/(n-2)

31
2.2 Single variable OLS

• You might think that another way to measure the
  fit of the model is to add up the residuals.
  However, by definition, the residuals will always
  sum to zero.
• An alternative is to square the residuals, add
  them up (giving the RSS) and then take the square
  root.
• Root MSE square root of RSS/n-k 13.76 /
  (11-2)0.5 1.236
• One way to interpret the root MSE is that it
  shows how far away on average the model is from
  explaining y
• The F-statistic (ESS/k-1)/(RSS/n-k) (27.51 /
  1)/(13.76/9) 17.99
• the F statistic is used to test whether the
  R-squared is significantly greater than zero
  (i.e., are the independent variables jointly
  significant?)
• Prob gt F gives the probability that the R-squared
  we calculated will be observed if the true
  R-squared in the population is actually equal to
  zero
• This F test is used to test the overall
  statistical significance of the regression model

32
Class exercise 1

• Import Fees.dta into STATA from
• http//ihome.ust.hk/accl/Phd_teaching.htm
• Run the following two regressions
• audit fees on total assets
• the log of audit fees on the log of total assets
• What does the output of your regression mean?
• Which model appears to have the better fit

33
2.3 Correctly interpreting the coefficients

• So far we have considered the case where the
  independent variable is continuous.
• Interpretation of results is even more
  straightforward when the independent variable is
  a dummy.

• reg auditfees big6
• ttest auditfees, by(big6)

34

• Sometimes even published studies give an
  incorrect interpretation of the estimated
  coefficients. For example

35
(No Transcript)
36

• Class questions
• Theoretically, how should auditing affect the
  interest rate that the company has to pay?
• Empirically, how do we measure the impact of
  auditing on the interest rate using eq. (1)?

37

• Class question At what values of total assets
  (000) is the effect of the Audit Dummy on the
  interest rate
• negative, zero, positive?

38

• Class questions
• What is the mean value of total assets?
• How does auditing affect the interest rate for
  the average company in their sample?

39

• Verify that the above claim is true.
• Suppose Blackwell et al. had reported the impact
  for a firm with 11m in assets and a firm with
  15m in assets.
• How would this have changed the conclusions drawn?

40
2.4 Examining the residuals

• Go to http//ihome.ust.hk/accl/Phd_teaching.htm
• Import anscombe.dta into STATA (use
  "C\phd\anscombe.dta", clear) and run the
  following regressions
• reg y1 x1
• reg y2 x2
• reg y3 x3
• reg y4 x4
• Note that the output from these regressions is
  virtually identical
• intercept 3.0 (t-stat2.67)
• x coefficient 0.5 (t-stat4.24)
• R-squared 66
• If you did not know about OLS assumptions, you
  would probably stop your analysis at this point,
  concluding that you have a good fit for all four
  models.
• In fact, only one of these four models is well
  specified.

41
Class exercise 2

• Draw scatter graphs for each of these four
  associations. For example
• twoway (scatter y1 x1) (lfit y1 x1)
• Of the four models, which do you think is the
  well specified one?
• Draw scatter graphs of the residuals against the
  x variable for each of the four regressions is
  there a pattern?
• Which of the OLS assumptions are violated in
  these four regressions?

42
2.4 Examining the residuals

• Unfortunately, it is common among researchers to
  judge whether a model is well-specified solely
  in terms of its explanatory power (i.e., the
  R-squared).
• You should report other types of diagnostic tests

• is there significant heteroscedasticity?
• is there any pattern to the residuals?
• are there any problems of outliers?

43
2.4 Examining the residuals

• An examination of the residuals can help us to
  identify whether the model is well specified. For
  example
• use "C\phd\Fees.dta", clear
• reg auditfees totalassets
• predict res1, resid
• twoway (scatter res1 totalassets, msize(tiny))
  (lfit res1 totalassets)
• gen lnafln(auditfees)
• gen lntaln(totalassets)
• reg lnaf lnta
• predict res2, resid
• twoway (scatter res2 lnta, msize(tiny)) (lfit
  res2 lnta)
• Notice that the residuals are more spherical
  displaying less of an obvious pattern in the
  logged model.

44
(No Transcript)
45
Class exercise 3

• Following Pong and Whittington (1994) estimate
  the raw value of audit fees as a function of raw
  assets and assets squared
• Examine the residuals
• Do you think this model is better specified than
  the one in logs?

46
2.5 Multiple regression

• Researchers use multiple regression when they
  believe that Y is affected by multiple
  independent variables
• Y a0 a1 X1 a2 X2 e
• Why is it important to control for multiple
  factors that influence Y?

47
2.5 Multiple regression

• Suppose the true model is
• Y a0 a1 X1 a2 X2 e
• where X1 and X2 is uncorrelated with the error, e
• Suppose the OLS model that we estimate is
• Y a0 a1 X1 u
• where u a2 X2 e
• OLS imposes the assumption that X1 is
  uncorrelated with the residual term, u.
• Since X1 is uncorrelated with e, the assumption
  that X1 is uncorrelated with u is equivalent to
  assuming that X1 is uncorrelated with X2.

48
2.5 Multiple regression

• If X1 is correlated with X2 the OLS estimate of
  a1 is biased.
• The magnitude of the bias depends upon the
  strength of the correlation between X1 and X2.
• Of course, we often do not know whether the model
  we estimate is the true model
• In other words, we are unsure whether there is an
  omitted variable (X2) that affects Y and that is
  correlated with our variable of interest (X1)

49
2.5 Multiple regression

• We can judge whether or not there is likely to be
  a correlated omitted variable problem using
• theory
• prior empirical studies

50
2.5 Multiple regression

• Previously, we checked whether there was a
  pattern between the residuals and one independent
  variable
• lnaf a0 a1 lnta res2
• twoway (scatter res2 lnta) (lfit res2 lnta)
• When we are using multiple regression, we want to
  test whether there is a pattern between the
  residuals and the right hand side variables as a
  whole
• The right hand side of the equation is the same
  thing as the predicted value of the dependent
  variable

51
2.5 Multiple regression

• So we should examine whether there is a pattern
  between the residuals and the predicted values of
  the dependent variable
• STATA has a command which enables us to examine
  the relation between the residuals and the fitted
  (i.e., predicted) values
• reg lnaf lnta big6
• rvfplot
• rvf stands for residuals versus fitted

52
2.6 Heteroscedasticity (hettest)

• The OLS techniques for estimating standard errors
  are based on an assumption that the variance of
  the errors is the same for all values of the
  independent variables (homoscedasticity)
• In many cases, the homoscedasticity assumption is
  violated. For example
• reg auditfees totalassets big6
• rvfplot
• the homoscedasticity assumption can be tested
  using the hettest command after we do the
  regression
• reg auditfees totalassets big6
• hettest
• Heteroscedasticity does not bias the coefficient
  estimates but it biases the standard errors of
  the coefficients downwards (the t-stats are
  biased upwards)

53
2.6 Heteroscedasticity (robust)

• Heteroscedasticity often occurs if the dependent
  variable is not symmetrically distributed
• for example the auditfees variable is highly
  skewed due to the fact that it has a lower bound
  of zero
• much of the heterosedasticity can often be
  removed by transforming the dependent variable
  (e.g., use the log of audit fees instead of the
  raw values)

54
2.6 Heteroscedasticity (robust)

• When you find that there is heteroscedasticity,
  you need to correct the standard errors using the
  Huber/White/sandwich estimator
• In STATA it is easy to do this adjustment using
  the robust option
• reg auditfees totalassets big6, robust
• Compare the adjusted and unadjusted results
• reg auditfees totalassets big6
• note that the coefficients are exactly the same
• the t-statistics on the independent variables are
  much smaller when the standard errors are
  adjusted for heteroscedasticity

55
Class exercise 4

• Esimate the audit fee model in logs rather than
  absolute values
• Using rvfplot, assess whether the residuals
  appear to be non-constant
• Using hettest, provide a formal test for
  heteroscedasticity
• Compare the coefficients and t-statistics when
  you estimate the standard errors with and without
  adjusting for heteroscedasticity.

56
Conclusion

• You should now understand
• how OLS models work
• how to interpret the results of OLS models
• how to spot potential problems of outliers and
  heteroscedasticity
• how to correct the standard errors for
  heteroscedasticity
