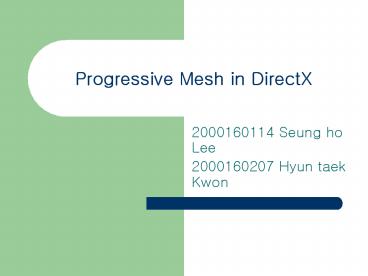

Progressive Mesh in DirectX

• 2000160114 Seung ho Lee
• 2000160207 Hyun taek Kwon

2
What is Progressive Mesh?

• Level of Detail (LOD)
• Progressive simplification or detail Mesh

3
Overview of Progressive Mesh

• Edge collapse or Vertex Split
• Selective Refinement

4
Edge collapse or Vertex Split
5
Selective Refinement

• Use Vertex History

6
The Pipeline of DirectX Mesh

• ID3DXMesh interface
• ID3DXPMesh interface

7
ID3DXMesh interface

• General Mesh interface
• Buffers
• Vertex Buffer
• Index Buffer
• Attribute Buffer
• Functions
• DrawSubset(DWORD n)

8
ID3DXPMesh

• Progressive Mesh interface
• Make from ID3DXMesh
• Using Progressive Mesh interface

9
Implementation

• Implement from ID3DXMesh
• Using Vertex Buffer and Index Buffer
• Class Gmesh
• Vertex Node Tree, History

10
Rendering Pipeline
Read PM File
Make GMesh
Write in Mesh Buffer
Draw Mesh
11
Result

• Rabbit

12
View-Dependent Refinement

1. Definitions
2. Refinement Criteria
3. Implementation

13
1. Definitions (1)

• Active vertex, Active face
• A vertex or face is active if it exists
• in the selectively refined mesh Ms.

14
1. Definitions (2)

• Vertex hierarchy

15
1. Definitions (3)

• Legal

16
2. Refinement Criteria

• View frustum
• Coarsen regions outsize the view frustum
• Surface orientation
• Coarsen regions oriented away from viewer
• Screen-space geometric error
• Makes the difference between approximate surface
  M and the original M small

17
2. Refinement Criteria (1)
- Bounding Sphere
18
2. Refinement Criteria (1)

• Out of View frustum
• Red lines show distance

19
2. Refinement Criteria (2)
- Cone of normals
Unnecessary to split if
20
2. Refinement Criteria (3)

• Distance
• The distance between the approximate surface M
  and the original M, when projected on the
  screen, is every where less than a screen-space
  tolerance r.

21
3. Implementation

• ListNode ActiveVertexHead
• double linked list of active vertex
• ListNode RootVertexHead
• Double linked list of root vertex

22
3. Implementation
Active Vertex
v1
v3
v4
v5
v6
v2
Qrefine()
Split
v1
v3
v4
v5
v6
v21
v22
