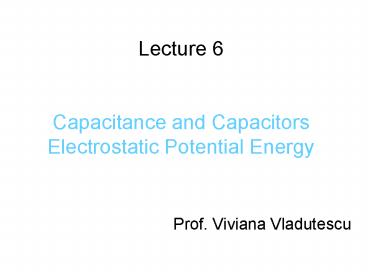

Lecture 6 Capacitance and Capacitors Electrostatic Potential Energy

1
Lecture 6Capacitance and CapacitorsElectrostat
ic Potential Energy

• Prof. Viviana Vladutescu

2
Capacitance

• A conductor in electrostatic field is
  equipotential and charges distribute themselves
  on the surface such way that E0 inside the
  conductor Q on the surface is producing V


3
linear dependence
kC
4
Capacitance (of the isolated conducting body) -
is the electric charge that is added to the body
per unit increase in its electric potential (is a
constant of proportionality)
Depends on the geometry of the conductors
-the dielectric constant of the
medium between conductors

5
Capacitors
6
(No Transcript)
7
(No Transcript)
8
Electrolytic capacitors
9
Determine capacitance

• 1- assume Vab Q (in terms of Vab)
• use boundary conditions
• 2- assume Q Vab (in terms of Q)

10
Q Vab

• Step 1Chose coordinate system for given geometry
• Step 2 Assume Q and Q on the conductors
• Step 3 Q E from DeE?s or
• Step 4 E
• Step 5 CQ/Vab

11
Example
12
(No Transcript)
13
Vab Q

• Step 1Chose coordinate system for given geometry
• Step 2 Assume Vab between plates
• Step 3 Vab E D (from Laplaces
  equation)
• Step 4 Boundary conditions at each plate
• conductor dielectric boundary
• ?s
  Q
• . Step 5 CQ/Vab

14
Example
15
There is no f and z variation
16
(No Transcript)
17
Step 4
18
Q on the inner conductor
Step 5
19
Series Connected Capacitors
Parallel Connected Capacitors
20
Electrostatic Potential Energy
21

• Electric potential at a point in an electric
  field is the work required to bring a unit
  positive charge from infinity (at reference zero
  potential) to that point.

22
Now suppose we want to bring Q3 at R13 from
Q1 and R23 from Q2
23
-can be negative -represents only interaction
energy
24
For a group of N discrete charges at rest
For a continuous charge distribution of density ?
25
Electrostatic energy in terms of field quantities
Substitute ?
And by using
26
Electrostatic Energy Density
27
Example
Along AB, W -q?V zero!

Equipotential surfaces are at right angles to
the electric field. Otherwise a force would act
and work would be done on the path A to B.For a
uniform electric field, equipotentials form
planes perpendicular to the field.
